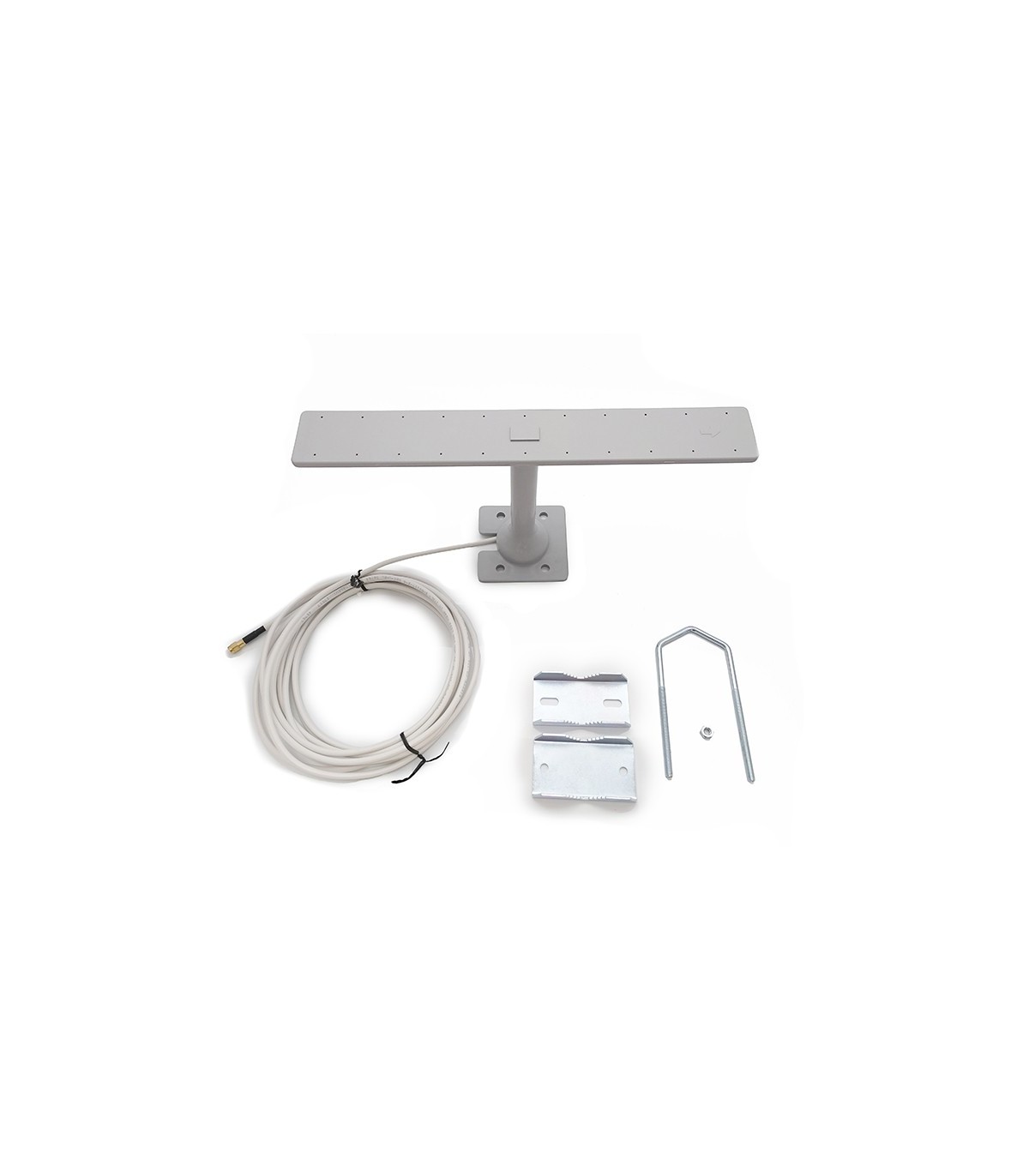

Omnidirec. Antenna GSM-3G/UMTS-WLAN, 5dBi, 5mt

Technical Data:

Antenna Type:       GSM 900 Collinear Antenna
                               GSM 1800 Collinear Antenna
                               3G/UMTS Collinear Antenna
                               W-LAN Collinear Antenna

Impedance: 50 Ω

Frecuency Range: GSM EUROPE: 860 ÷ 960 MHz
                                          DCS-PCS EUROPE: 1710 ÷ 1880 MHz
                                          3G/UMTS: 1900 ÷ 2170 MHz
                                          W-LAN: 2400 ÷ 2485 MHz

Max. Power: 10W

V.S.W.R.: 860 ÷ 960 less than 2.2
                1710 ÷ 1880 less than 2.2
                1900 ÷ 2170 less than 2.5
                2400 ÷ 2485 less than 2.5

Polarization: Vertical

Emission: Omnidirectional

Gain: 5 dBi

Beam width horizontal: H plane omnidirectional 360º

Cable: CO100 mm. 5000

Connector: SMA m.

Specifications:

Dimensions: 340x50 Height: 155mm

Material: ABS / PVC / MOPLEN

Color: Grey

Netweight: 380g
