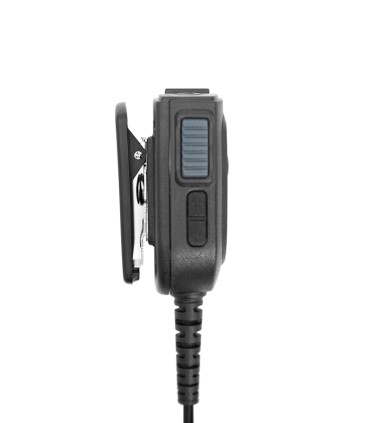

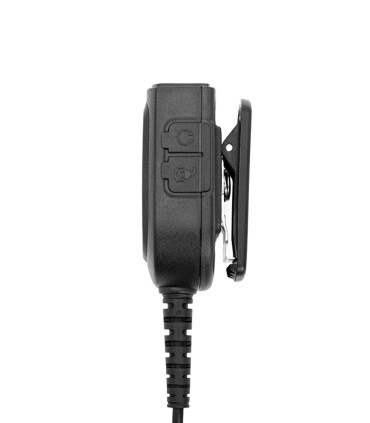

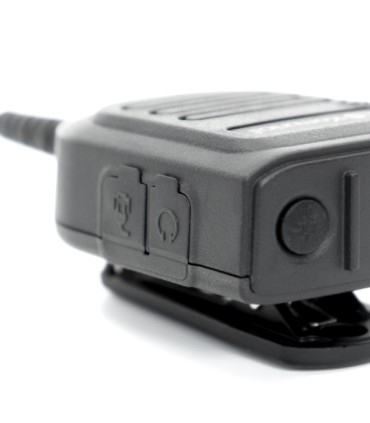

Micro-altavoz Komunica con amplificación de altavoz y recargable para series POC Hytera PNC-370, PD-365, etc.

• • Circuito de amplificación de audio.

  • Batería interna recargable

  • Control de volumen

  • Conexión Audio: 3.5mm

  • Led antorcha

  • Botón Emergencia: Bajo demanda (opcional)

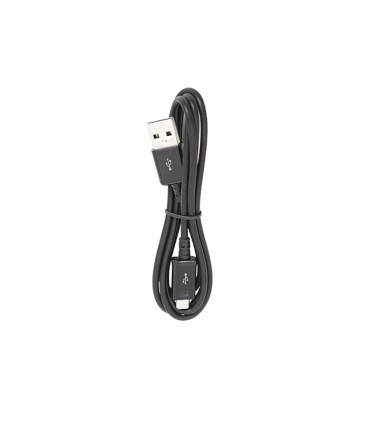

  • Conector de carga tipo Micro USB

  • Tamaño:   78x56x27

  General Specification:

  • Operating Temp -20℃± 2℃ ~ 50℃± 2℃

  • Approx. Weight 180g

  • Charging Port Micro USB

  • Battery Li-polymer 3.7V 1500mAh

  Electrical Specifications for Speaker Section:

  Item Value Conditions

  • Speaker Dimensions Φ36 x 5.0mm

  • Impedance 8Ω ± 15% 1.2KHz / 1.0Vrms

  • Rated Input Power 1.0W

  • Max. Input Power 1.5W

  • Sensitivity 89 ±3 dB

  • Frequency Response 280Hz～5.6KHz Average SPL-10dB

  • Distortion <5% Max 1.0KHz/2.83Vrms

  Electrical Specifications for Microphone Section

  Item Value

  • Type and Dimension:  Condenser Type, Dimension =Φ6.0 x 3.6mm

  • Output Impedance 2.2KΩ ± 10%

  • Sensitivity -40dB ± 2dB 0dB=1V/Pa, F=1KHz

  • Frequency Range 50HZ ~ 16KHZ

  • Directivity Omni-directional

  • Operation Voltage

  • Standard Voltage 2V

  • Max. Operation Voltage 10V

  • S/N Ratio: More Than 60dB, @F=1KHz, 1Pa - A weighted

EAN:8435757705977
