PWR-8800-PNC370

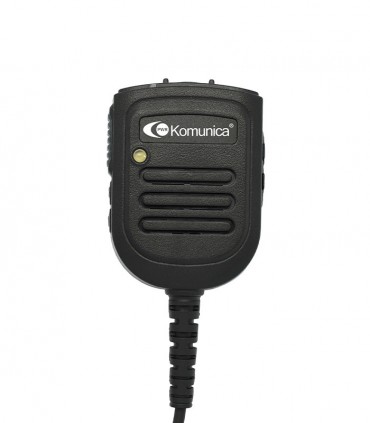

Komunica speaker-microphone , with amplified speaker (rechargeable), for Hytera series POC series PNC-370, PD-365, etc.

Excellent audio quality (amplified audio)

Protection Grade: IP-55

Compatible with Poc series PNC-370, PD-365LT, PD-365, PD-355LE, PD-362i, BD-302i.

*** For other brands and compatible versions, please ask for.

Read moreShow less
Add to compare0
Add to wishlist
Specifications
Features:
  • Amplification circuit for speaker
  • Built-in battery
  • Power draw from AAA battery
  • LED indicator for battery

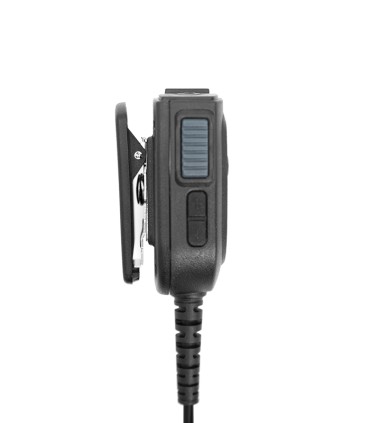

  • Volume control

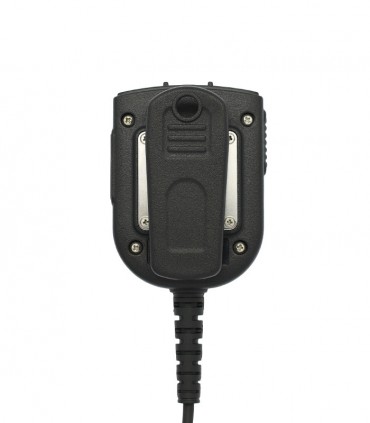

  • Metal Clip
  • 3.5mm jack audio

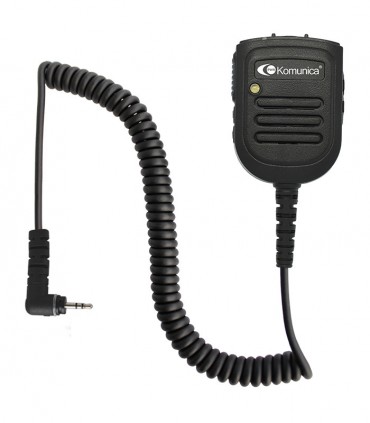

  • 4.2mm coil cable
  • Built-in battery

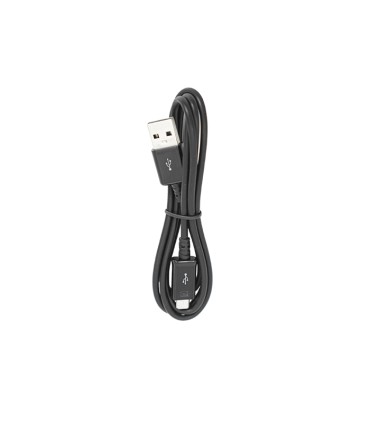

  • The charging of the unit will work by Micro USB

General Specification:
  • Operating Temp -20℃± 2℃ ~ 50℃± 2℃
  • Approx. Weight 180g
  • Charging Port Micro USB
  • Battery Li-polymer 3.7V 1500mAh


Electrical Specifications for Speaker Section:
Item Value Conditions
  • Speaker Dimensions Φ36 x 5.0mm
  • Impedance 8Ω ± 15% 1.2KHz / 1.0Vrms
  • Rated Input Power 1.0W
  • Max. Input Power 1.5W
  • Sensitivity 89 ±3 dB
  • Frequency Response 280Hz~5.6KHz Average SPL-10dB
  • Distortion <5% Max 1.0KHz/2.83Vrms
Electrical Specifications for Microphone Section
Item Value
  • Type and Dimension:  Condenser Type, Dimension =Φ6.0 x 3.6mm
  • Output Impedance 2.2KΩ ± 10%
  • Sensitivity -40dB ± 2dB 0dB=1V/Pa, F=1KHz
  • Frequency Range 50HZ ~ 16KHZ
  • Directivity Omni-directional
  • Operation Voltage
  • Standard Voltage 2V
  • Max. Operation Voltage 10V
  • S/N Ratio: More Than 60dB, @F=1KHz, 1Pa - A weighted

EAN:8435757705977

Read moreShow less
Product Details
PWR-8800-PNC370

Data sheet

Compatible con:
HYTERA

Specific References

ean13
8435757705977
