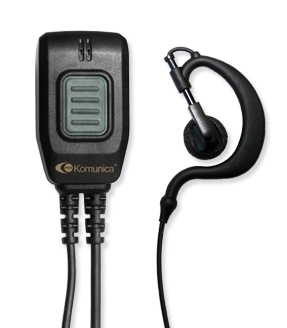

PWR-GES-IP Series IPX7



Elegant and resistant housing for professional, security and commercial use.

Características:

• Acoustic microearphone with ear hook provides absolute audio clearity

• IP range: IP67

Speaker specifications:

• Impedance: 32Ω ± 15% (a 1.0 KHZ / 1.0V)

• Rated Input Power: 0.3W

• Max. Input Power: 0.5W

• Frequency Response: 0HZ ~ 10KHz SPL - 10db promedi

• Sensitivity: 117dB ± 3dB (a 1mW/ 1KHz)

• Distortion: 10% Max (a 1KHz/ 1mW )

 Microphone specifications:

• Type: Omni-directional

• Frequency Range: -40dB ± 2dB

• Output Impedance : 2.2KΩ ± 10%

• Dimension : Φ 4.0 x 1.5mm

Earphone specifications:

• Frequency Range: 50HZ ~ 10KHZ

•

  Quick view

  PWR-GES-IP-ICF62 - Micro-earphone Komunica with protection level IPX7, compatible with Icom ICF52/62

  Komunica professional micro-earphone IPX7 (1m during 30 minutes) with multi-pin (14 Pin) connector, compatible to  Icom: IC-F-52D/62D IC-F-3261D/3262D/3263D/IC-F3360D/4261D/4262D/IC-F4360D/4363D IC-SAT-100 IC-F-3400D/3400DS/3400DT/4400D/4400DS/4400DT IC-F-7010S / 7020S / 7020T / 7040T /IP730D/IP740/ 9011 / 9021 IC-M85 / M85E

  Quick view
•

  Quick view

  PWR-GES-IP-TUB-ICF62 - Komunica micro-earphone with acoustic tube and protection level IPX7, compatible with Icom ICF52/62

  Acoustic tube with water proof level IPX7 (1 m during 30 minutes) and multipin connector (14 Pin) compatible series Icom: IC-F-52D/62D IC-F-3261D/3262D/3263D/IC-F3360D/4261D/4262D/IC-F4360D/4363D IC-SAT-100 IC-F-3400D/3400DS/3400DT/4400D/4400DS/4400DT IC-F-7010S / 7020S / 7020T / 7040T /IP730D/IP740/ 9011 / 9021 IC-M85 / M85E
