Acoustic tube with water proof level IPX7 (1 m during 30 minutes) and multipin connector (14 Pin) compatible series Icom:
IC-F-52D/62D
IC-F-3261D/3262D/3263D/IC-F3360D/4261D/4262D/IC-F4360D/4363D
IC-SAT-100
IC-F-3400D/3400DS/3400DT/4400D/4400DS/4400DT
IC-F-7010S / 7020S / 7020T / 7040T /IP730D/IP740/ 9011 / 9021
IC-M85 / M85E

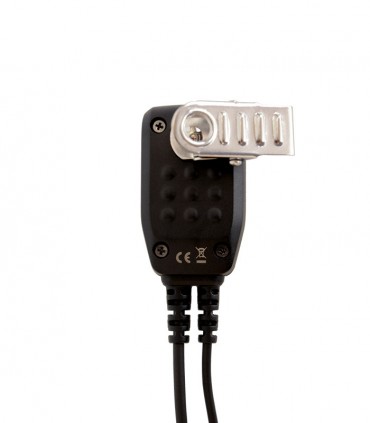

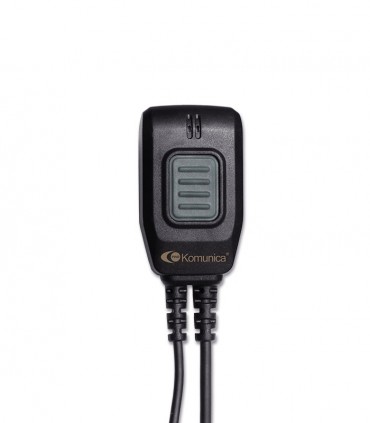

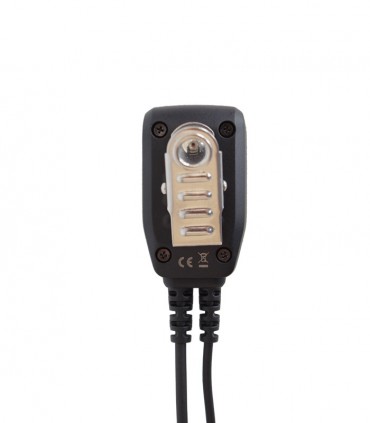

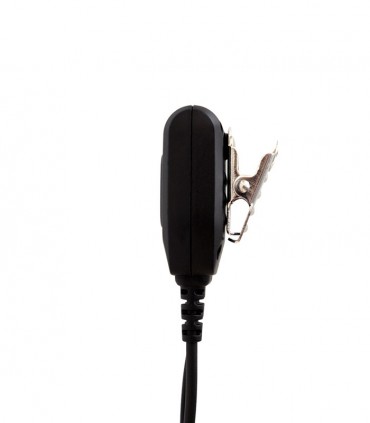

Komunica professional micro-earphone IPX7 (1m during 30 minutes) with multi-pin (14 Pin) connector, compatible to Icom:
IC-F-52D/62D
IC-F-3261D/3262D/3263D/IC-F3360D/4261D/4262D/IC-F4360D/4363D
IC-SAT-100
IC-F-3400D/3400DS/3400DT/4400D/4400DS/4400DT
IC-F-7010S / 7020S / 7020T / 7040T /IP730D/IP740/ 9011 / 9021
IC-M85 / M85E
Add to compare0
Add to wishlist
Microphone
-
Type: Condenser Type
-
Dimension: Φ 4.0 x 1.5mm
-
Output Impedance: 2.2KΩ ± 10% F=1KHz 1Pa
-
Sensitivity: -40dB ± 2dB F=1KHz 0dB=1V/Pa
-
Frequency Range: 50Hz ~ 16KHz
-
Directivity: Omni-directional
-
Operation Voltage: Standard Voltage 2.0V Max. Operation Voltage 10V
-
S/N Ratio: 60dB F=1KHz 1Pa A weighted
Speaker
-
Speaker Dimensions: Φ14.48 × 4.4 mm
-
Impedance: 32Ω ± 15% @ 1000 Hz/ 1.0V
-
Rated Input Power: 0.3W
-
Max. Input Power: 0.5W
-
Sensitivity: 117dB ± 3dB @1mW/ 1KHz
-
Frequency Response: F0 ~ 10KHZ Average SPL - 10db
-
Distortion: 10% Max @ 1000Hz/ 1mW
Front PTT button, soft rubber type
300 000 cycle PTT switch cycle
Water drainage microphone hole design
EAN:8435757706530
