A-301/4000-24-REMOT

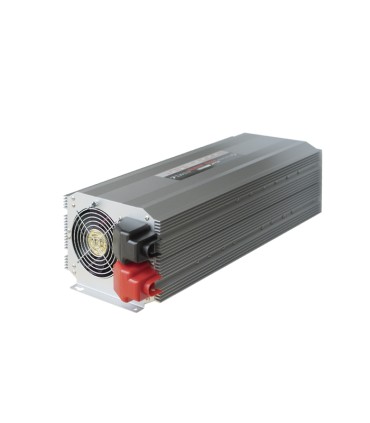

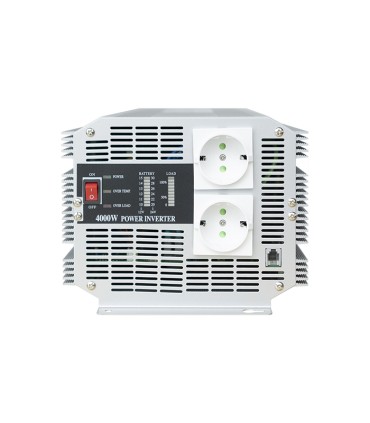

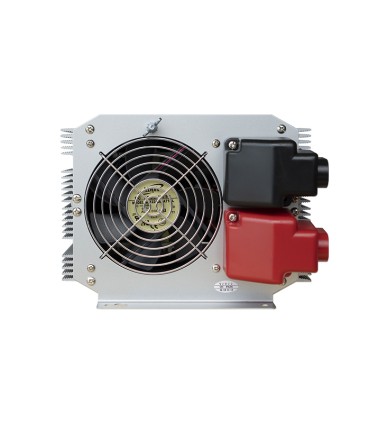

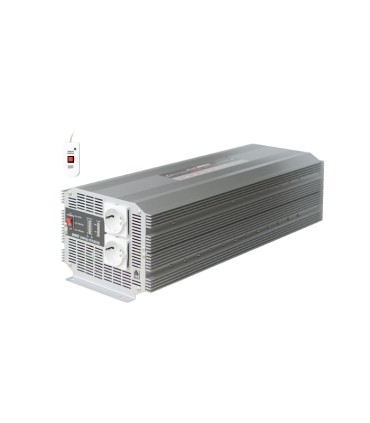

Inverter 4000W, 24V/220V + remote control

Power inverter 4000 W. 24V + remote control without cables

Read moreShow less
Add to compare0
Add to wishlist
Specifications
Specifications:
  • Input Voltage Range: 20-30V DC
  • Input Full Load Current: 125A
  • Standby Input Current: < 0.6A
  • Output Voltage (Ac): 100V, 110V, 120V, 220V, 230V, 240V
  • Output Waveform: Modify Sinewave
  • Output Frequency: 50Hz or 60Hz
  • Continue Output Power: 2500W
  • Output Power: 5000W
  • Efficiency: 85-90%
  • Battery Low Alarm: 21.5+/-0.8V DC
  • Battery Low Shutdown: 60+/-5DEG CW
  • Thermal Protect: 60+/-5DEG CW
  • High Voltage Input Protection: 30+/-0.8V DC
  • Battery Polarity Protection: Yes (by fuse)
  • Protections:
  • Soft-Start
  • High Voltage Input: Shutdown
  • Low Voltage Input: Shutdown
  • Overload: Shutdown
  • Overtemperature: Shutdown
  • Intelligent Fan Control
  • Fuse: 15A *12
  • Dimensions (L*W*H) mm: 550 * 210 * 159
  • Weight: 8.7 Kg

EAN:8435757700125

Read moreShow less
Product Details
A-301/4000-24-REMOT

Specific References

ean13
8435757700125
