Suitable for Motorola batteries: AP-4970-L, AP-4497-LI (High Capacity) & AP-4851H
DSK-6-4970

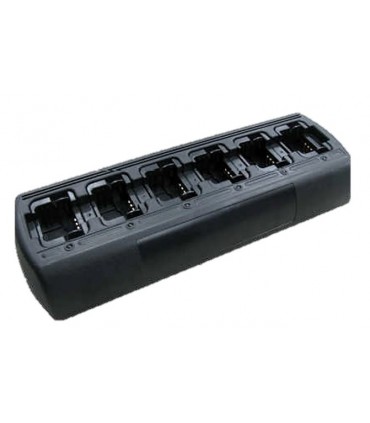

6-slot fast charger. Allows charging of Ni-MH & Li-Ion batteries. Suitable for versions: AP-4970-Li, AP-4851-H & AP-4497-Li (HQ)
Compatible with Motorola radios, series:
DP-1400
CP-040, 080, 140, 150, 160, 180, 200
PR400
EP450
GP3188, 3688, etc
Add to compare0
Add to wishlist
-
Charge Chemistry: Ni-Cd, Ni-MH, Li-ion
-
Input Voltage: 15.0V
-
Maximum Charge Current: 800mA
-
Power Supply: 90W Externa, tipo Switching
-
AC Input: 100 ~ 240V
-
Charge Mode:
* Ni-Cd/Ni-MH: Constant Current –ΔV termination
* Li-ion: Constant Current to Constant Voltage
-
Charge Protection: Over Voltage: 8.4~9.0V
-
Protection Temperature: Over Temperature: > 40°C
-
Working Temperature: 0 ~ +40°C (+32 ~ +104°F)
-
Material:s ABS + PC
-
Dimensions: 510.0 X 172.0 X 80.0 mm (20.08 X 6.77 X 3.15 inch)
-
Weight: No PSU: 2500 g (5.51 lbs)
EAN:8435757701948
