Triband Antenna
TX: 50-144-430MHz
RX: 150/300/450/900MHz
This product has a new reference, until now it has corresponded to PWR-SRH-789

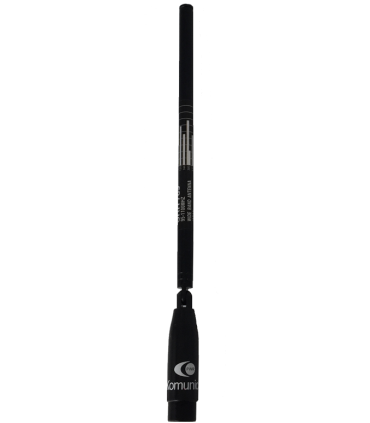

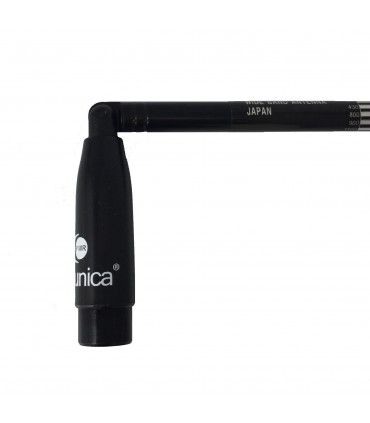

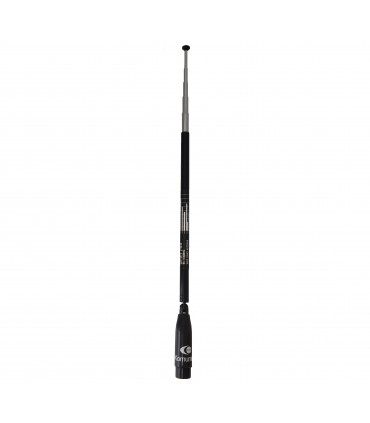

Telescopic antenna with hinge for walkie VHF-UHF, RX 95,120,150,300,800,900,1100 MHz, 2.15 dbi(95-300Mhz)Y 3.2 dbi(300-1100Mhz.), 805mm, folded 200mm. 6 sections, SMA
Add to compare0
Add to wishlist
-
Type: Antenna Walkie Telescopic Foldable
-
Gain: 2.15 dBi (95-300MHz) y 3.2 dBi (300-1100MHz)
-
Frequency: VHF-UHF (144-430 MHz) -RX 95,120,150,300, 800,900,1100 MHz
-
Max Power Rating: 10W
-
Impedance: 50 Ω
-
Height: 200 mm - 805 mm
-

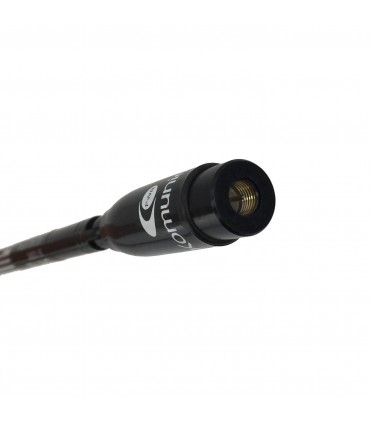

Connector: SMA
CODING TABLE
| PREVIUS CODING | ACTUAL CODING |
| PWR-RH-536 | PWR-TA-36-BNC |
| PWR-SRH-40-S | PWR-TA-40-S |
| PWR-SRH-40-SMAF | PWR-TA-40-SMAF |
| PWR-SRH-607-S | PWR-TA-607-S |
| PWR-SRH-607-SMAF | PWR-TA-607-SMAF |
| PWR-RH-701-T | PWR-TA-70-BNC |
| PWR-SRH-771-S | PWR-TA-71-S |
| PWR-SRH-771-SMAF | PWR-TA-71-SMAF |
| PWR-SRH-775 | PWR-TA-75-S |
| PWR-SRH-789 | PWR-TA-89-S |
| PWR-SRH-805 | PWR-TA-85-S |
| PWR-RH-795 | PWR-TA-95-BNC |
| PWR-SRH-99 | PWR-TA-99 |
EAN:8435757707902
