PWR-TA-94-S

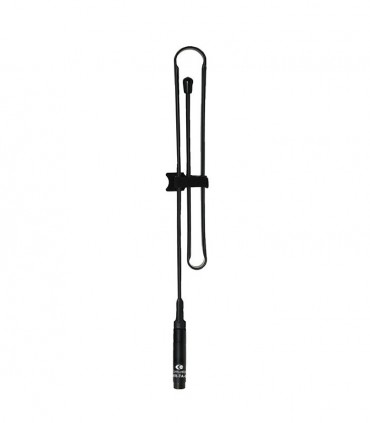

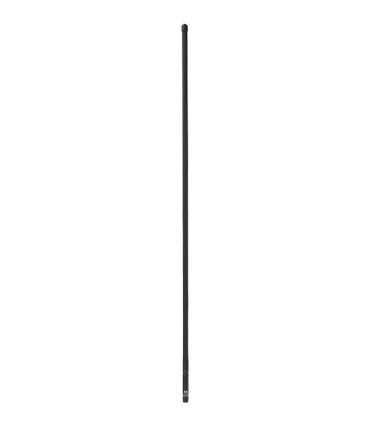

Tactical antenna VHF/UHF foldable 94cm SMA
Specifications
Frequency - Frecuencia |
144/430 MHz |
Impedance - Impedancia |
50 Ω |
V.S.W.R |
Less than 1.5 |
Gain - Ganancia |
3.0 / 5.5 dBi (430MHz) |
Power - Poder |
20 W |
Length - Largo |
93.5cm cm |
Weight - Peso |
125 g |
Connector - Conector |
SMA |
EAN:8435757707919
