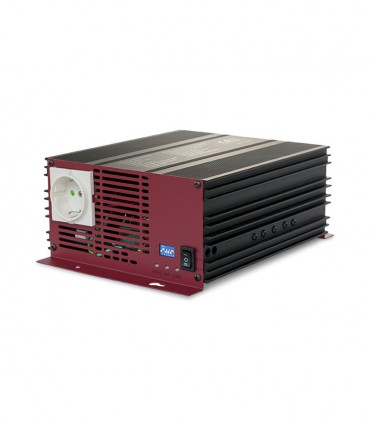

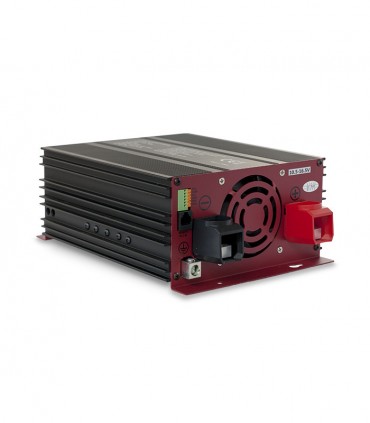

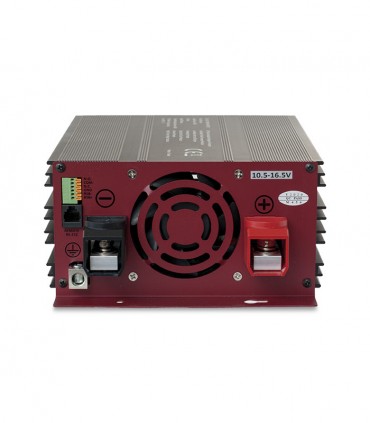

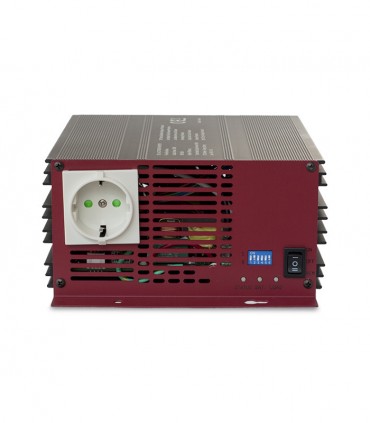

Komunica Power Inverter, Pure Sinewave, 700W, 12V (with DC cable)

Model

A-801/700-12-PS

Capacity

700W

Output Power

Continuous

Surge

Turbo Mode

700W

1400W

840W

Output Voltage

100VAC / 110VAC / 115VAC / 120VAC (Dip Switch Selectable)

200VAC / 220VAC / 230VAC / 240VAC (Dip Switch Selectable)

Output Frequency

50Hz / 60Hz (Dip Switch Selectable)

Wave Form

Pure Sine Wave

THD

<3.0% (Normal Voltage * 1.1)

Input Voltage Range

12 VDC

10.5 VDC ~ 16.5 VDC

Max Efficiency

12 VDC

92%

No Load Power Consumption

12 VDC

ECO MODE

<1.26A

< 1W

Low Battery Alarm

12 VDC

11.0 VDC

High Battery Alarm

12 VDC

16.0 VDC

Protection

DC Input Polarity Reversed / DC Under Voltage / DC Over Voltage /

Output Short Circuit / Overload / Over Temperature

Environment

Operating Temperature

Storage Temperature

Humidity

-20ºC ~ 60ºC (De-rating Begin 40ºC ~ 60ºC)

-30ºC ~ 70ºC

95%, non-condensing

Dimension (L*W*H) mm

210*187*96

Weight (kgs)

2.5

Remote Control (Option)

Yes

GFCI (Option)

Yes
