CLP-446E

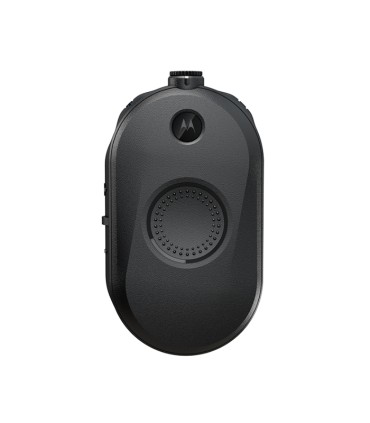

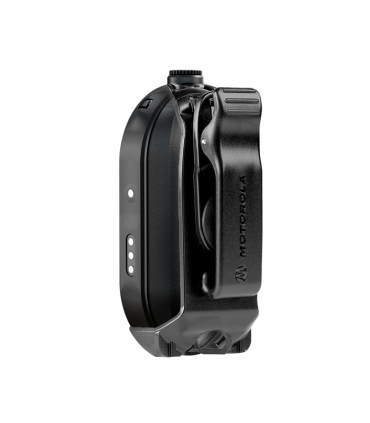

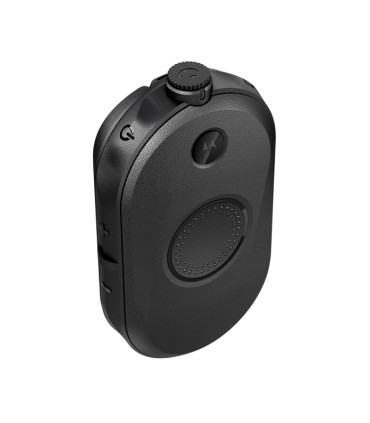

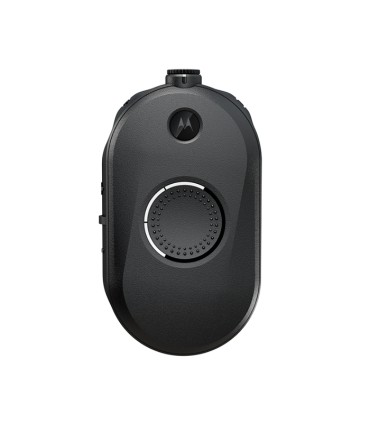

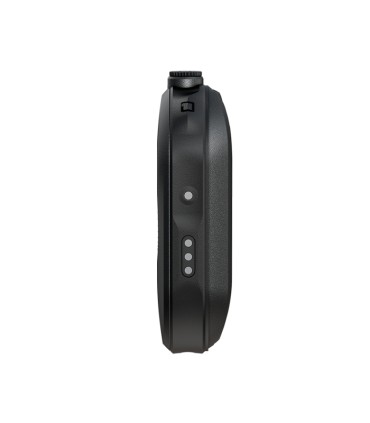

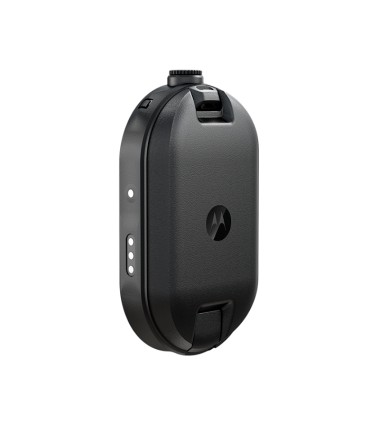

MOTOROLA Two-way radio PMR446, complete kit with earpiece
-
Elegant, compact, and durable design
-
Large PTT (push-to-talk) button
-
Smart status glow ring
-
Up to 20 hours of battery life
-
Audio, carrying, and charging accessories included
-
Escalate call
-
Voice-guided navigation
-
16 channels & 219 privacy codes
Add to compare0
Add to wishlist
Features:
-
VOX Hands-free
-
6 call tones
-
Mute function
-
15 volume levels
-
Scanning/monitoring
-
Antimicrobial coating
-
Customer programming software (CPS)
Included Accessories:
-
Battery: HKNN4013ASP01 - 1800 mAh Slim Lithium-Ion battery
-
Clip: PMLN8065 - Replacement kit with clip
-
Carrying cases: PMLN8066 - Battery door addition kit
-

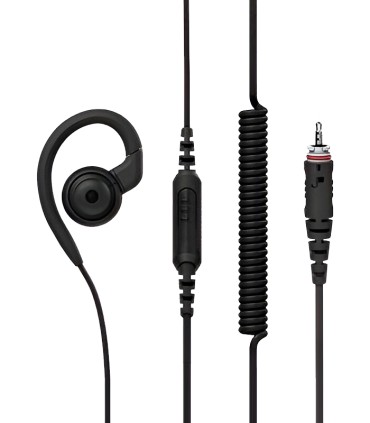

Earpiece: PMLN8078 CLPe Series Inline PTT earpiece with standard cable
-
Single unit charger: IXPN4028 CLP/CLPe
-
Power supply
General Specifications:
-
Frequency: PMR446 (446.0–446.2 MHz)
-
Channels: 16
-
Range: Up to 7,400 m² / 6 floors
-
Privacy Codes: 39 PL + 6 custom / 84 DPL + 84 inverted + 6 custom
-
Bandwidth: 12.5 kHz
-
Repeater: Not compatible
-
Battery (BT90 - 1800 mAh): Up to 20 hours (5/5/90 usage)
-
Dimensions: 90 x 51 x 25 mm (3.55 x 2.00 x 0.98")
-
Weight: 95 g (with battery)
Receiver:
-
Sensitivity (12 dB SINAD): -122 dBm (0.18 µV)
-
Adjacent Channel Selectivity @ 12.5 kHz: 60 dB
-
Intermodulation Rejection: 60 dB
-
Spurious Response Rejection (1 MHz Block): 80 dB
-
Audio Distortion: < 5%
-
CSQ Hum & Noise @ 12.5 kHz: -50 dB
-
PL Hum & Noise @ 12.5 kHz: -50 dB
-
Radiated Spurious Emissions (< 1 GHz): < -54 dBm
-
Radiated Spurious Emissions (> 1 GHz): < -52 dBm
-
Audio Output @ <5% Distortion: 10 mW @ 16 ohms
Transmitter:
-
RF Output (High): 0.5 Watts
-
Frequency Stability: < 2.5 ppm
-
Spurs & Harmonics: < -45 dBc
-
FM Hum & Noise (@ 12.5 kHz without companding): -40 dB
-
Modulation (@ 12.5 kHz): Limiting ± 2.5 kHz
-
Adjacent Channel Power (@ 12.5 kHz): 60 dBc
-
Radiated Spurious Emissions (< 1 GHz): < -36 dBm
-
Radiated Spurious Emissions (> 1 GHz): < -30 dBm
-
Audio Frequency Response (0.3 - 3.0 kHz): +1 to -3 dB
-
Audio Distortion: < 2%
Environmental Specifications:
-
Operating Temperature: -30°C to +60°C
-
Shock & Vibration Resistance: Polycarbonate housing, complies with EIA 603
-
Humidity: Complies with EIA 603
-
Dust & Water Intrusion: IP54 rating
