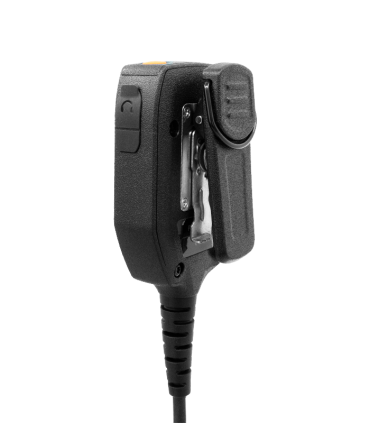

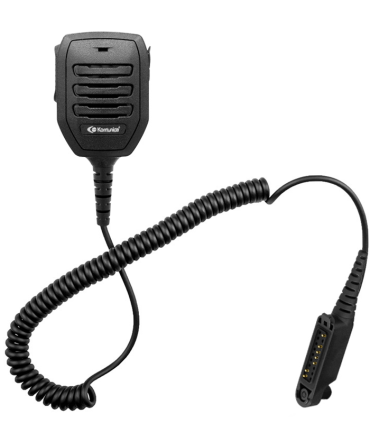

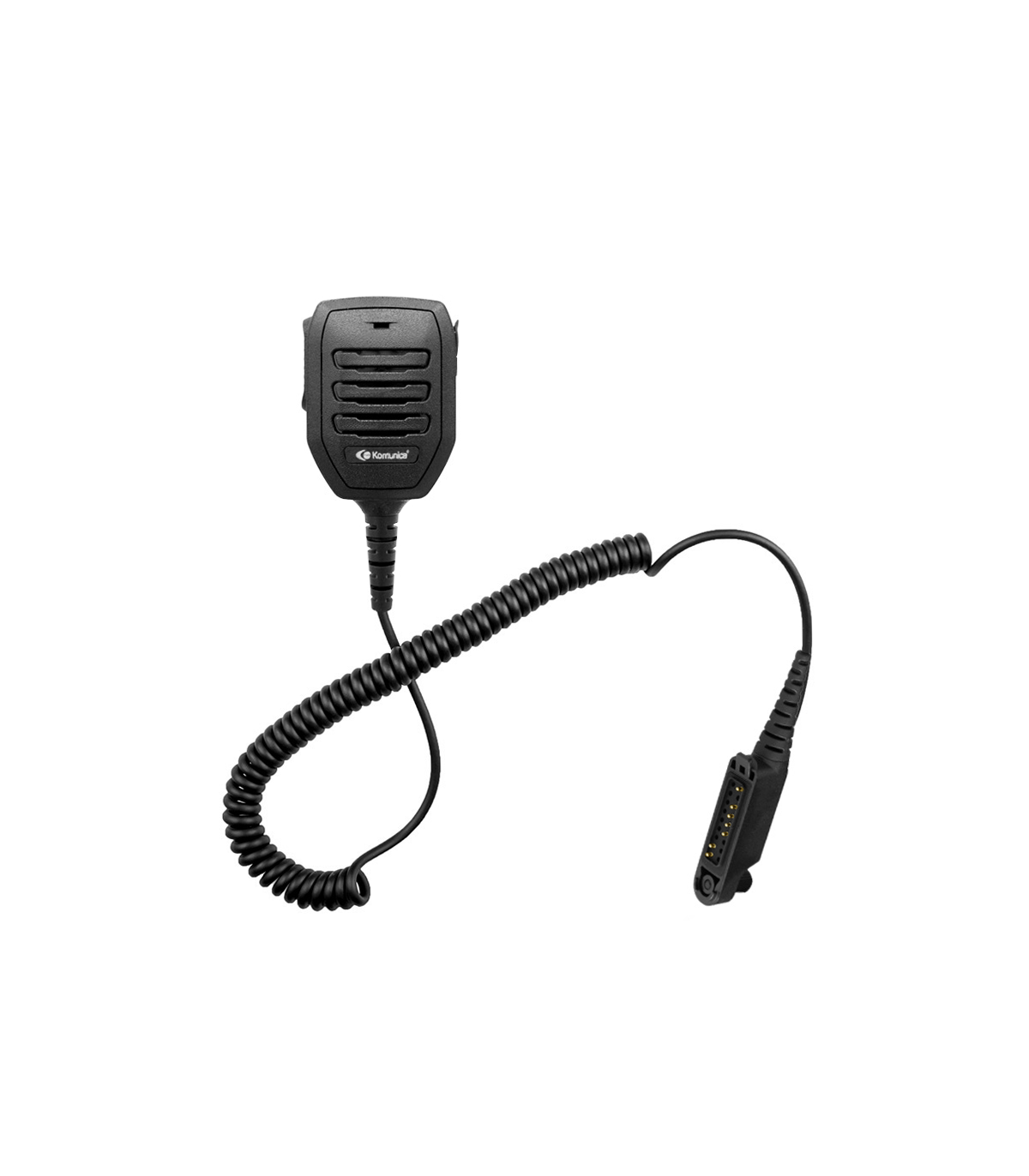

Komunica Micro Speaker IP68 & Emergency Button x CALTTA DMR / E-600

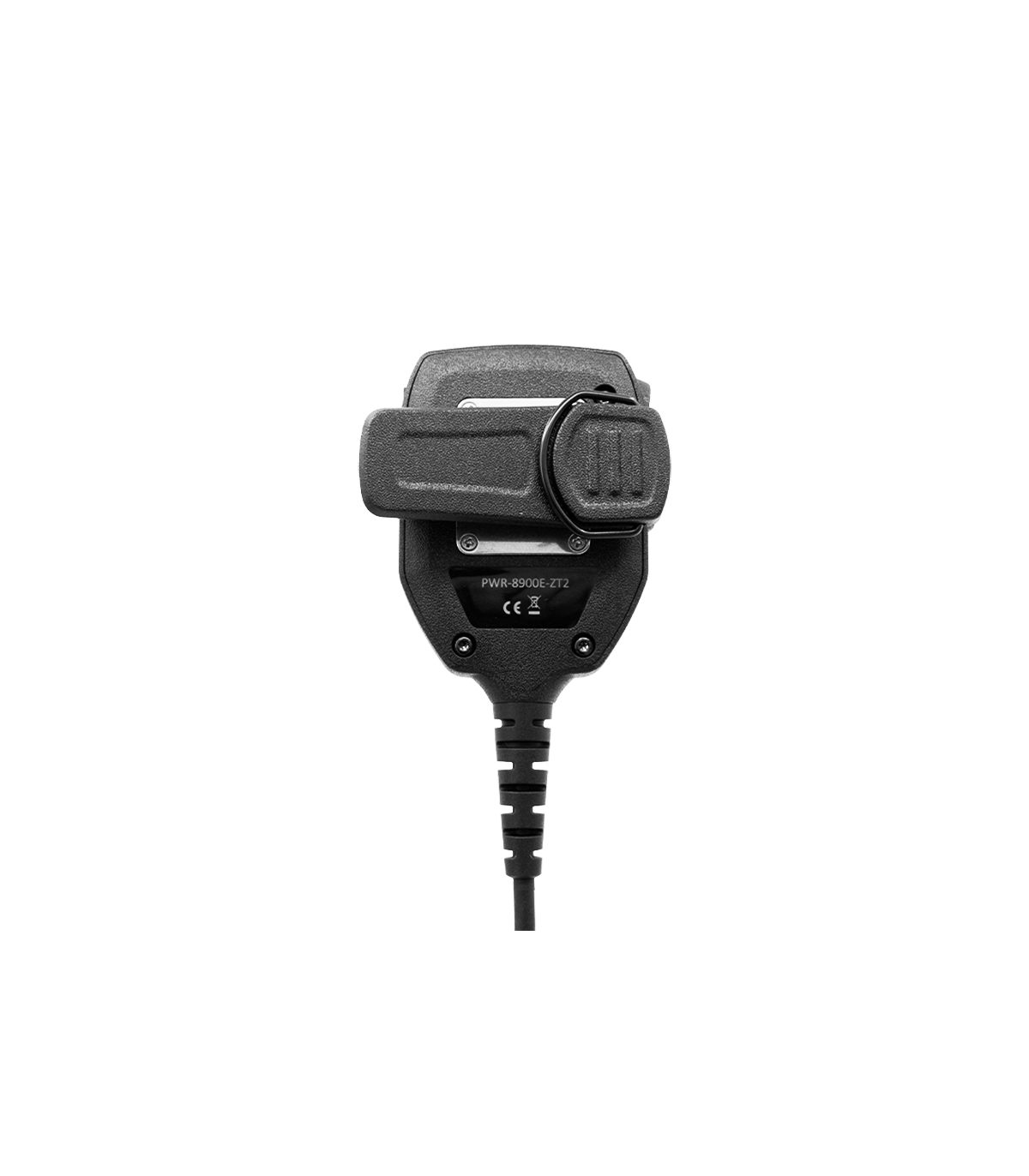

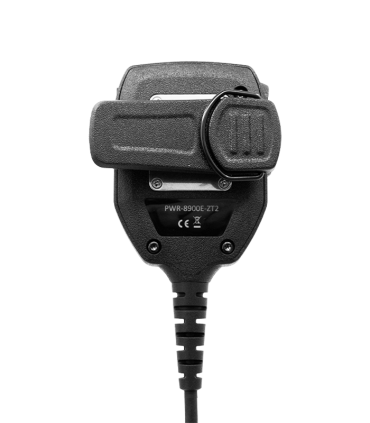

PWR-8900E-ZT2

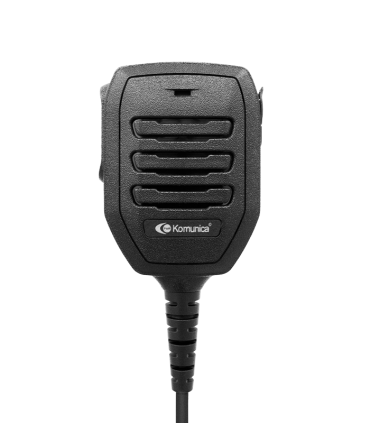

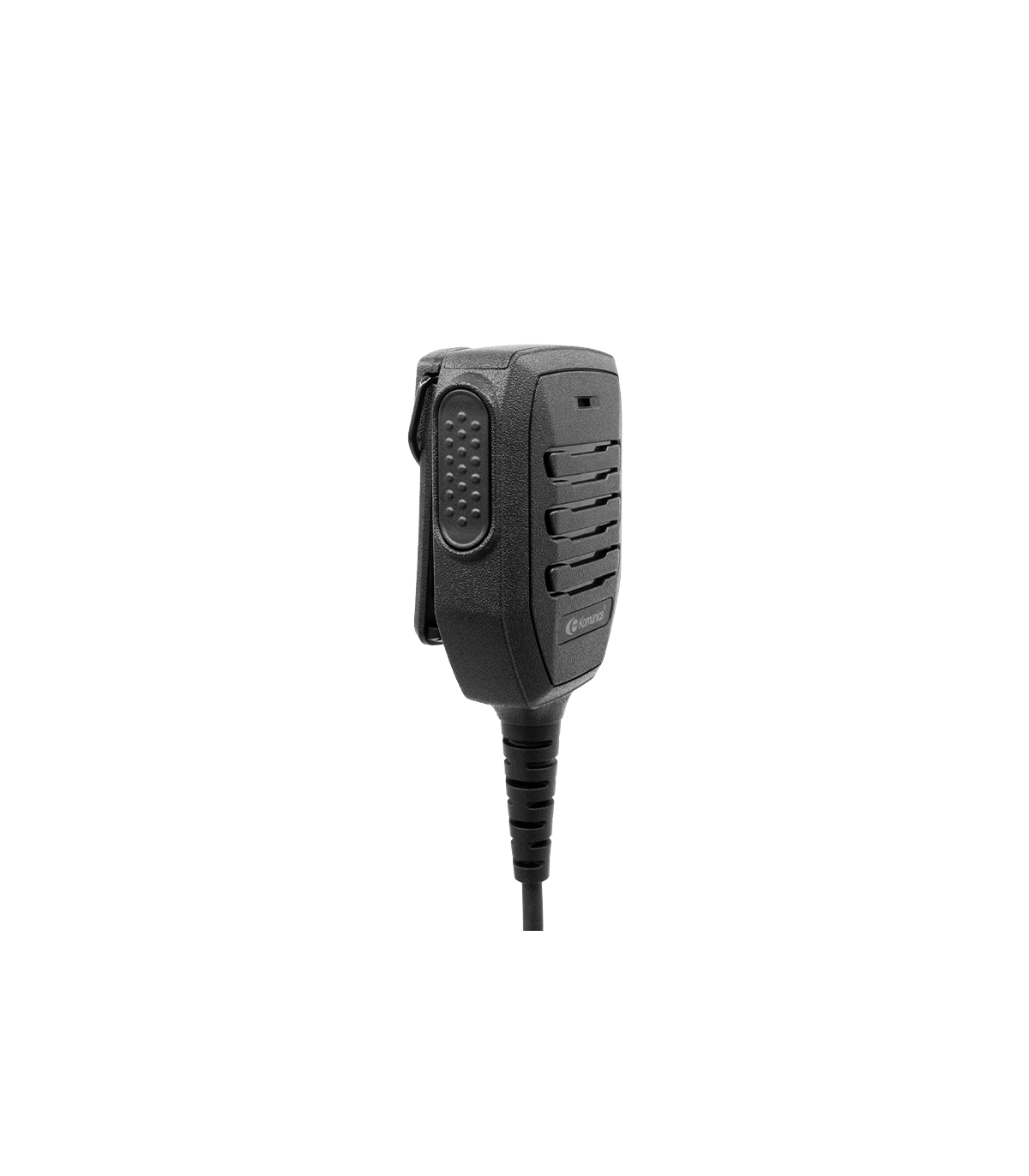

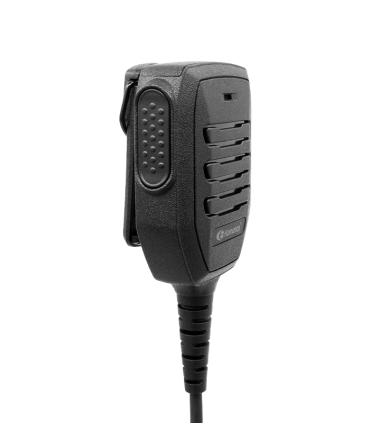

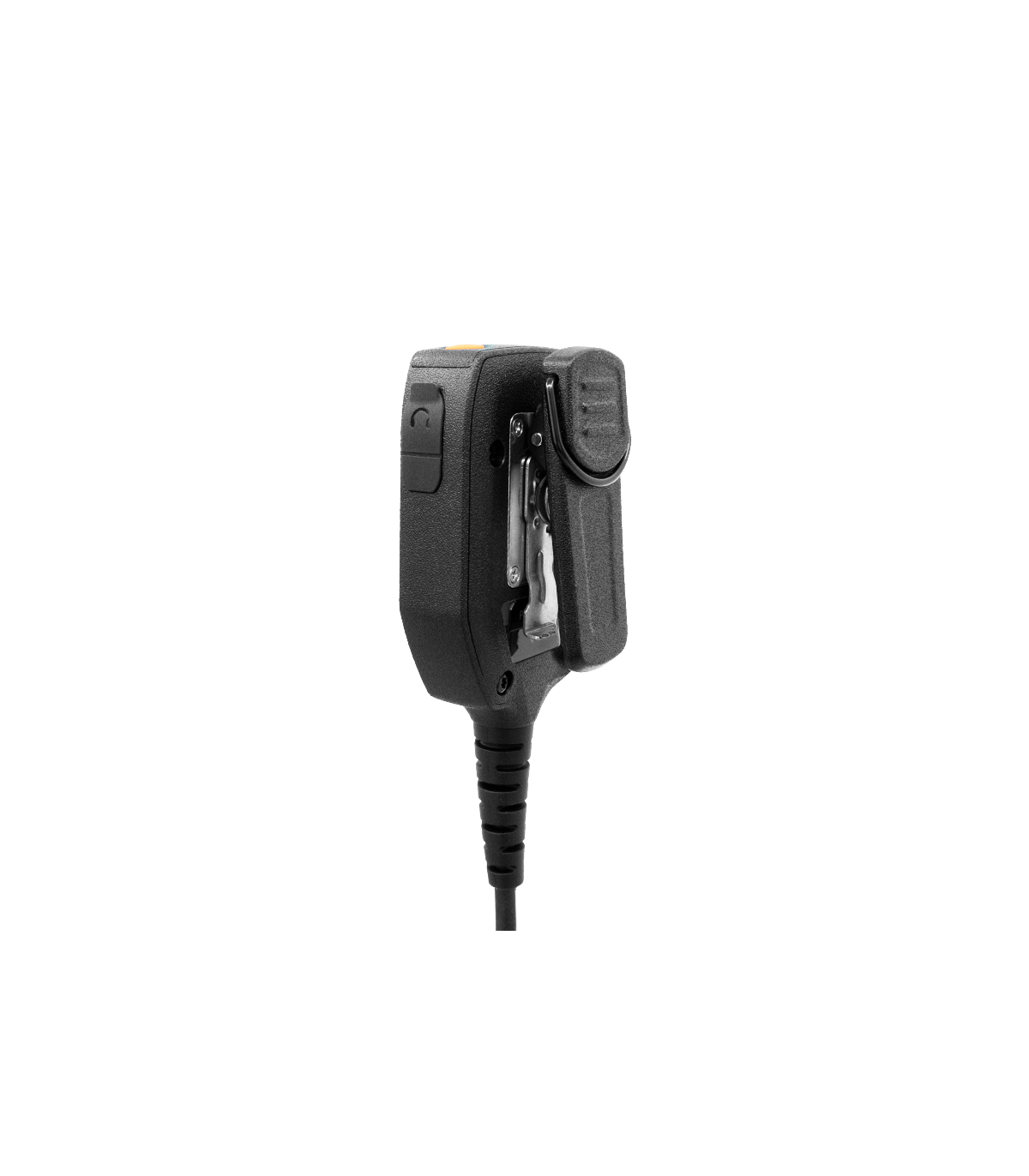

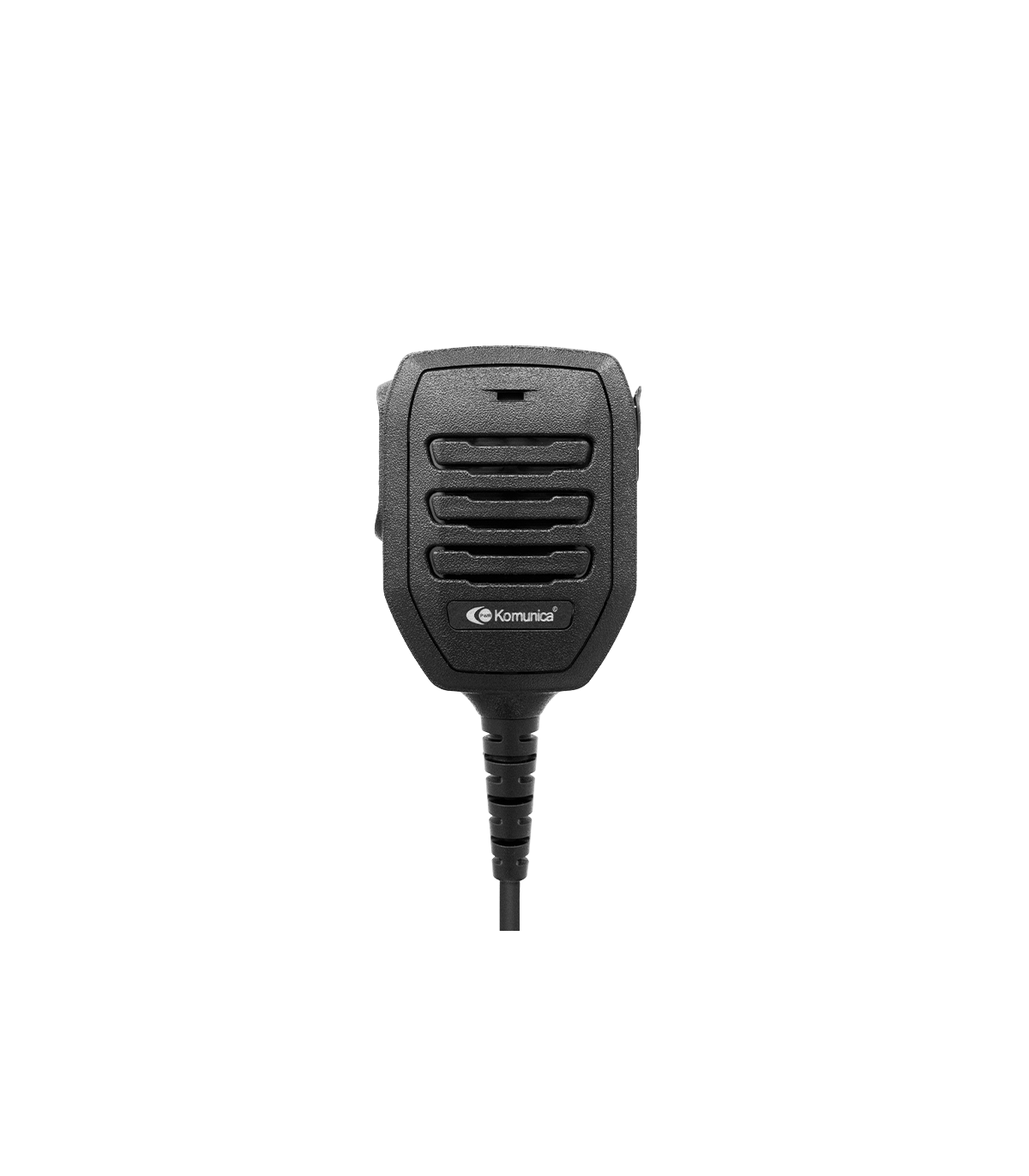

Komunica Micro Speaker IP68 & Emergency Button x CALTTA DMR / E-600

Compatible with Caltta:

PH600,
PH660Ex, PH690Ex, PH600, PH660, PH690
E600
DH500, DH590, DH596
DH400, DH410, DH450/ DH452
DH610, DH612, DH630, DH680, DH682, DH636

General Specification

Ingress Protection: IP68

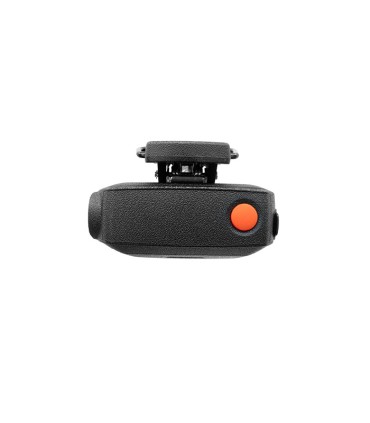

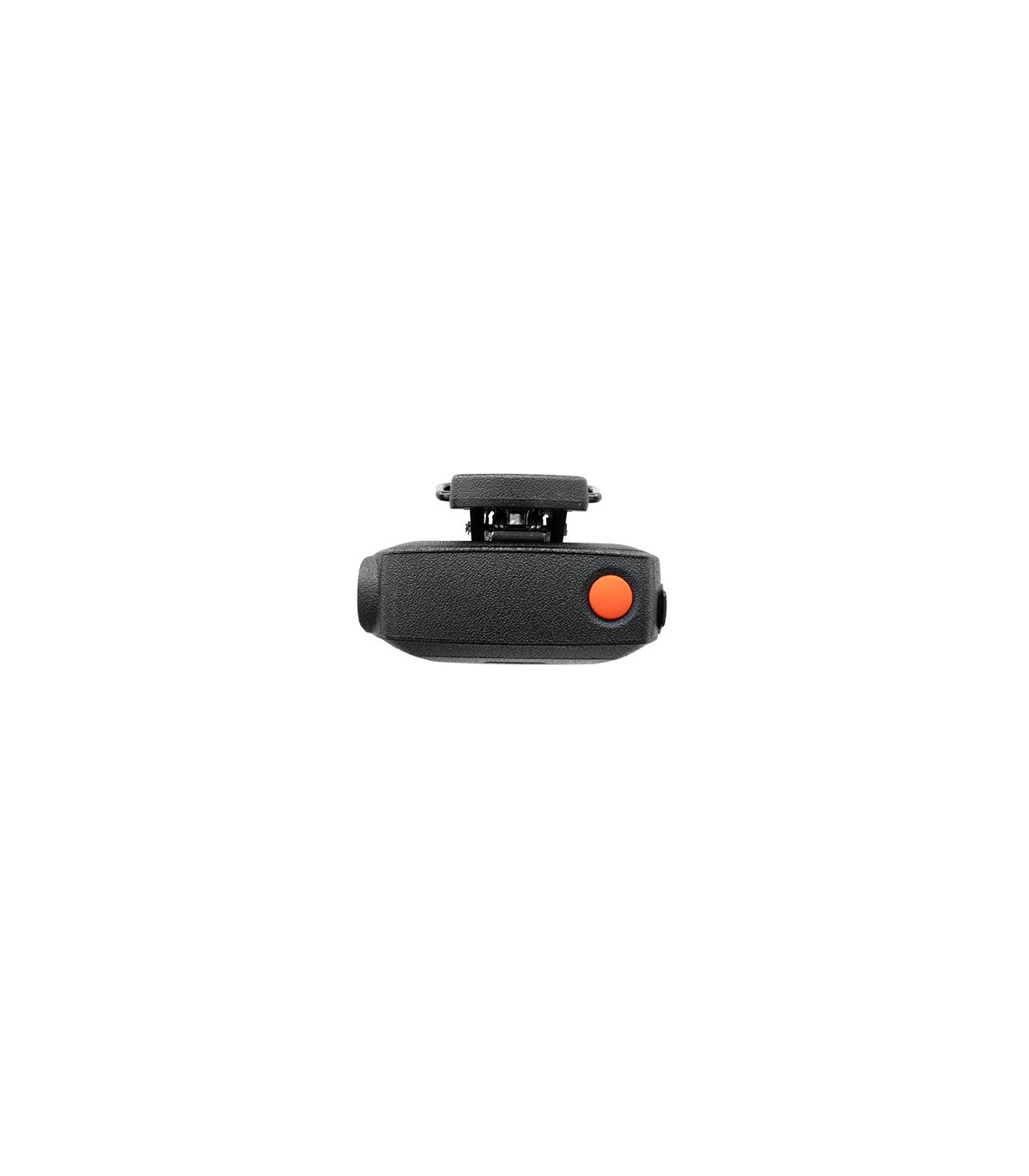

Emergency Button
3.5mm earphone socket
Weight: 200 g
Operating Temp: -20℃ ±2℃ ~ 50℃ ±2℃

Speaker

Speaker Dimensions: Φ45 x 9.9 mm
Impedance: 8Ω ±15% / 1000Hz / 1.0V
Rated Input Power: 2W
Max. Input Power: 3W
Output S.P.L.: 99dB ±3 / (2W / 30cm) / Average at 300 ~ 3kHz
Resonant Frequency: 560 ±112Hz / At 1V
Distortion: Max 20% / 300~3kHz / 2W / 30cm

Microphone Section

Type and Dimension: Condenser type, Φ4.0 x 1.5 mm
Output Impedance: 2.2kΩ ±10% / f = 1kHz
Sensitivity: -40dB ±2 / 0dB = 1V/Pa, 1kHz
Frequency Range: 50Hz ~ 20kHz
Directivity: Omni-directional
Operation Voltage: Standard Voltage 2V / Max. Operation Voltage 10V
S/N Ratio: 60dB / @ f = 1kHz, Pin = 1Pa, A-weighted
