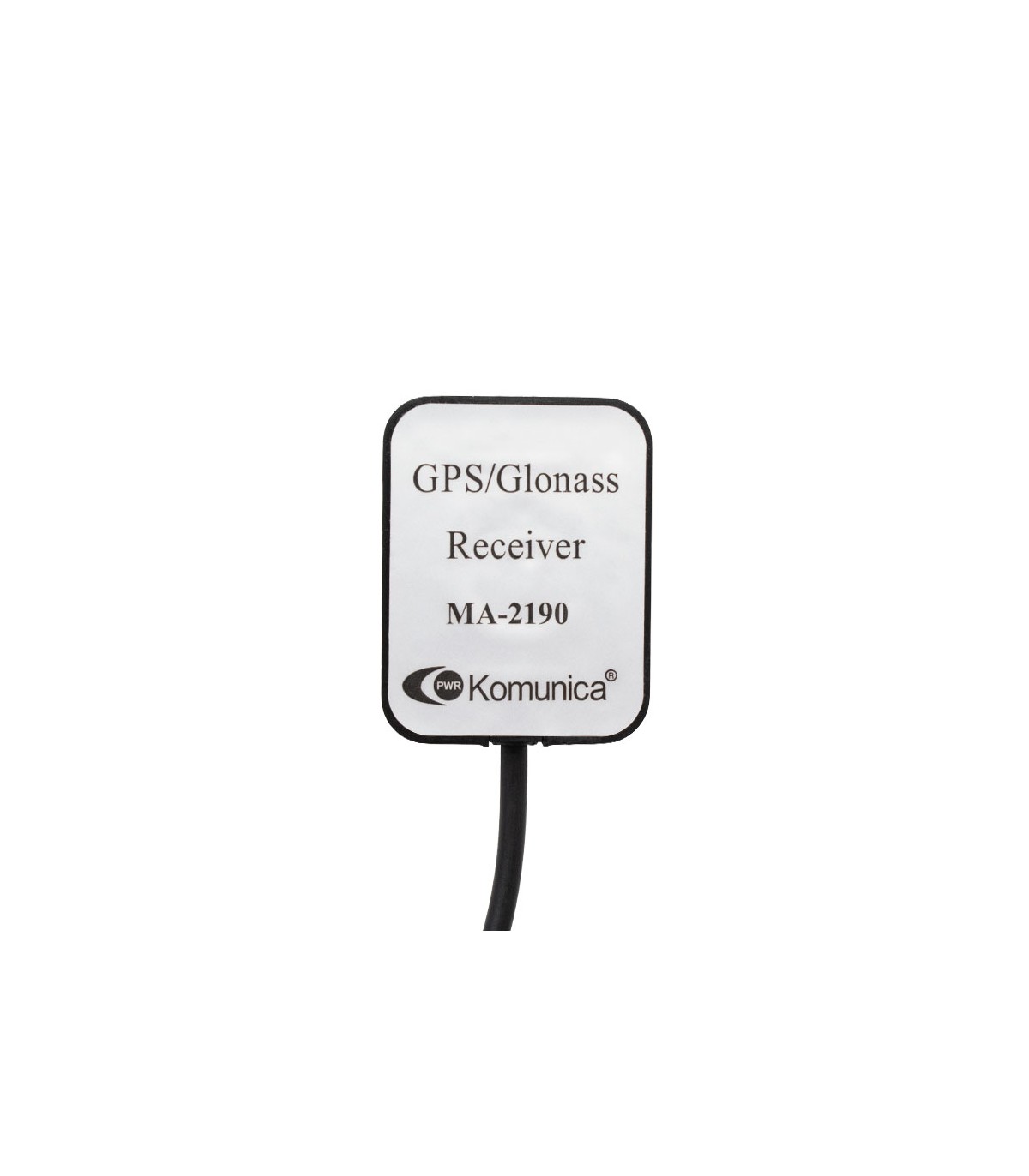

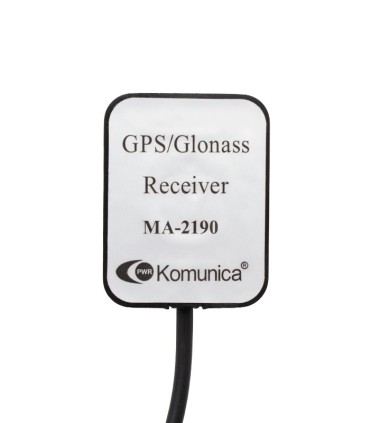

MA-2190

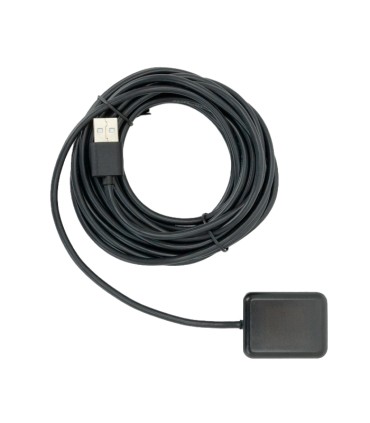

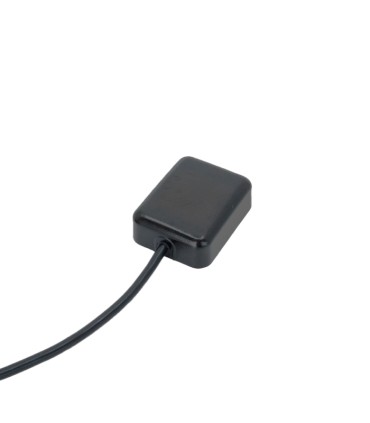

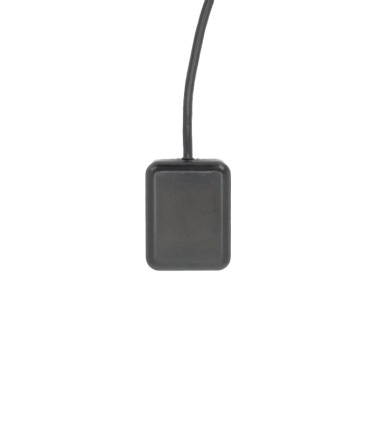

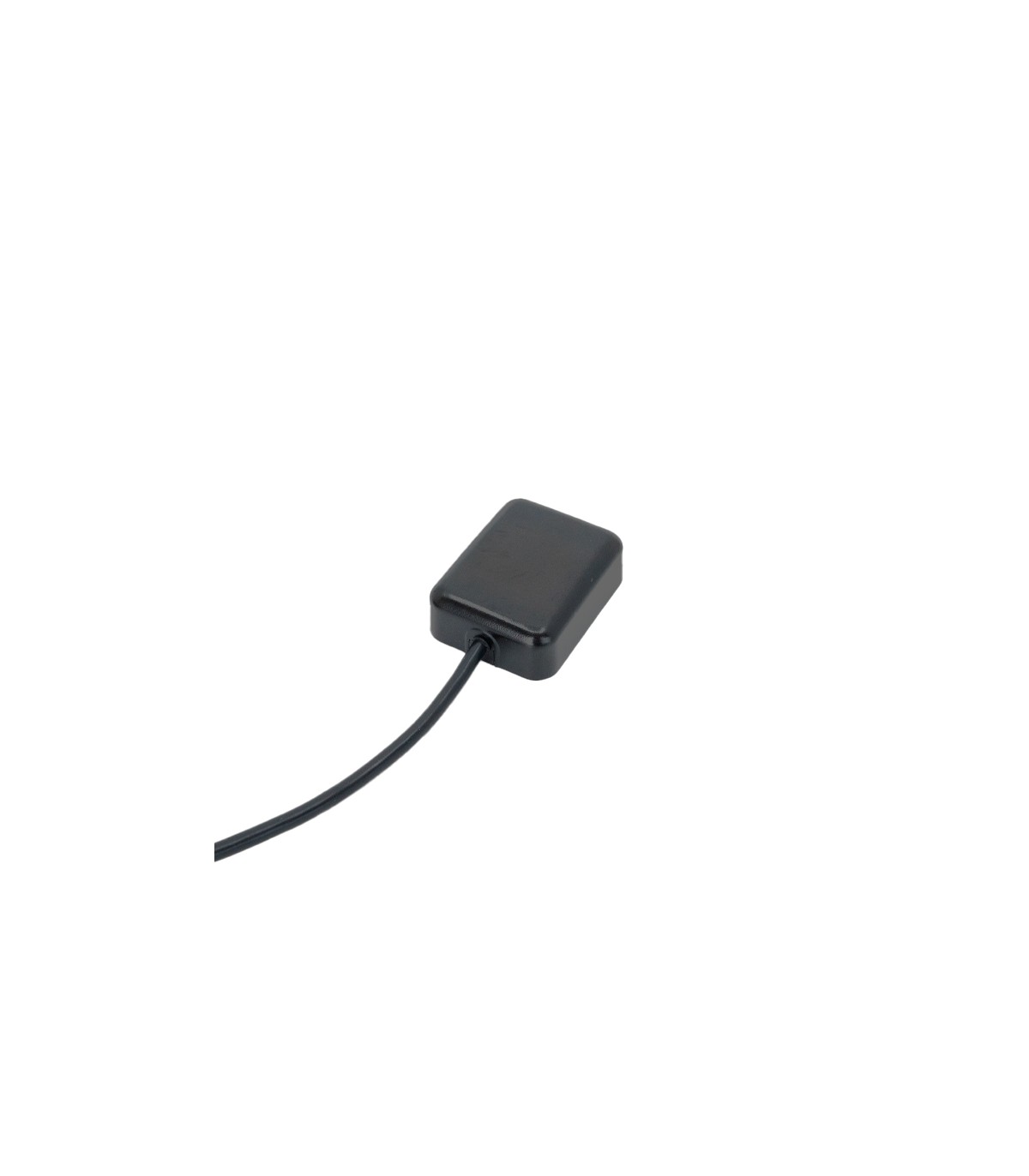

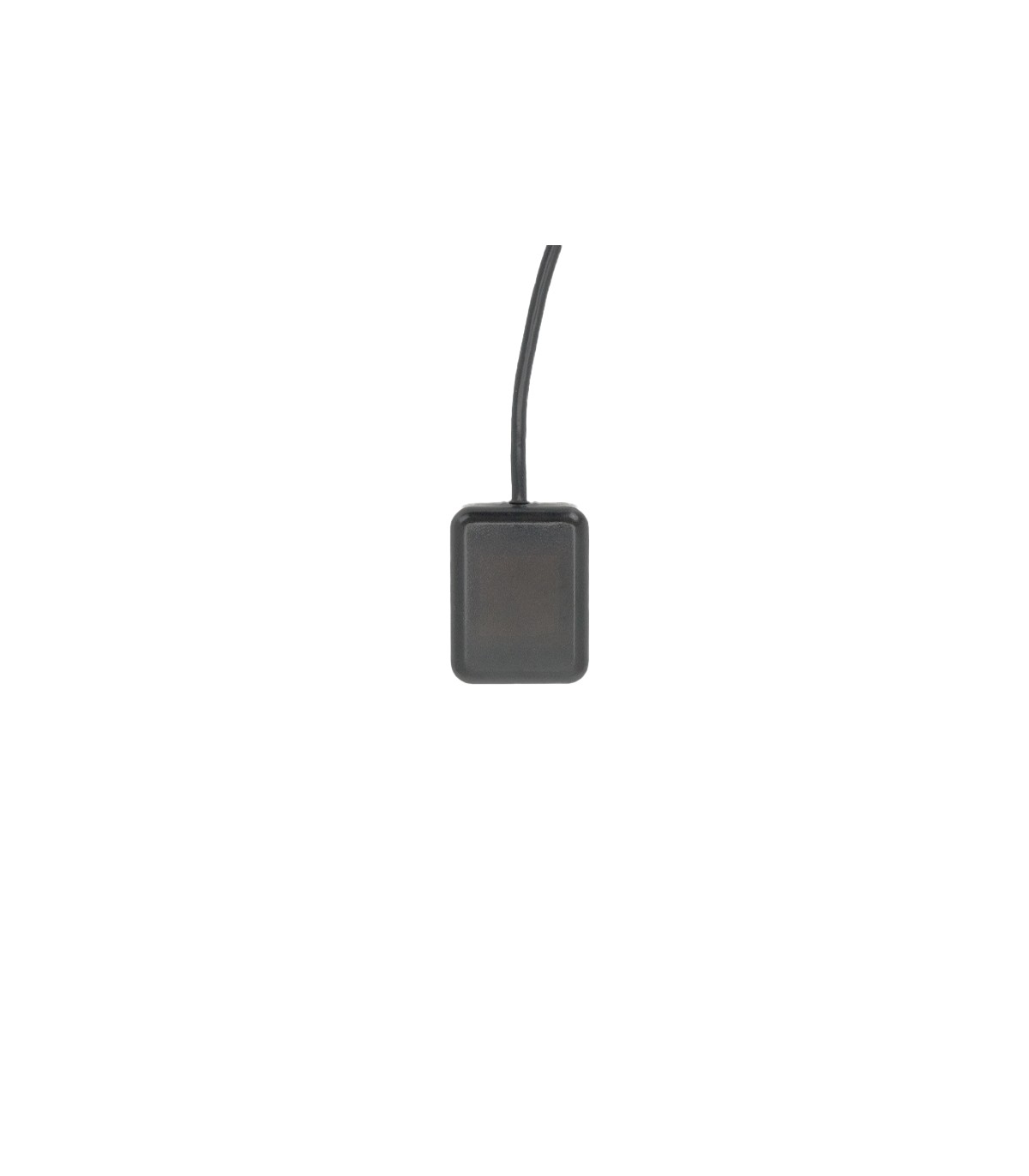

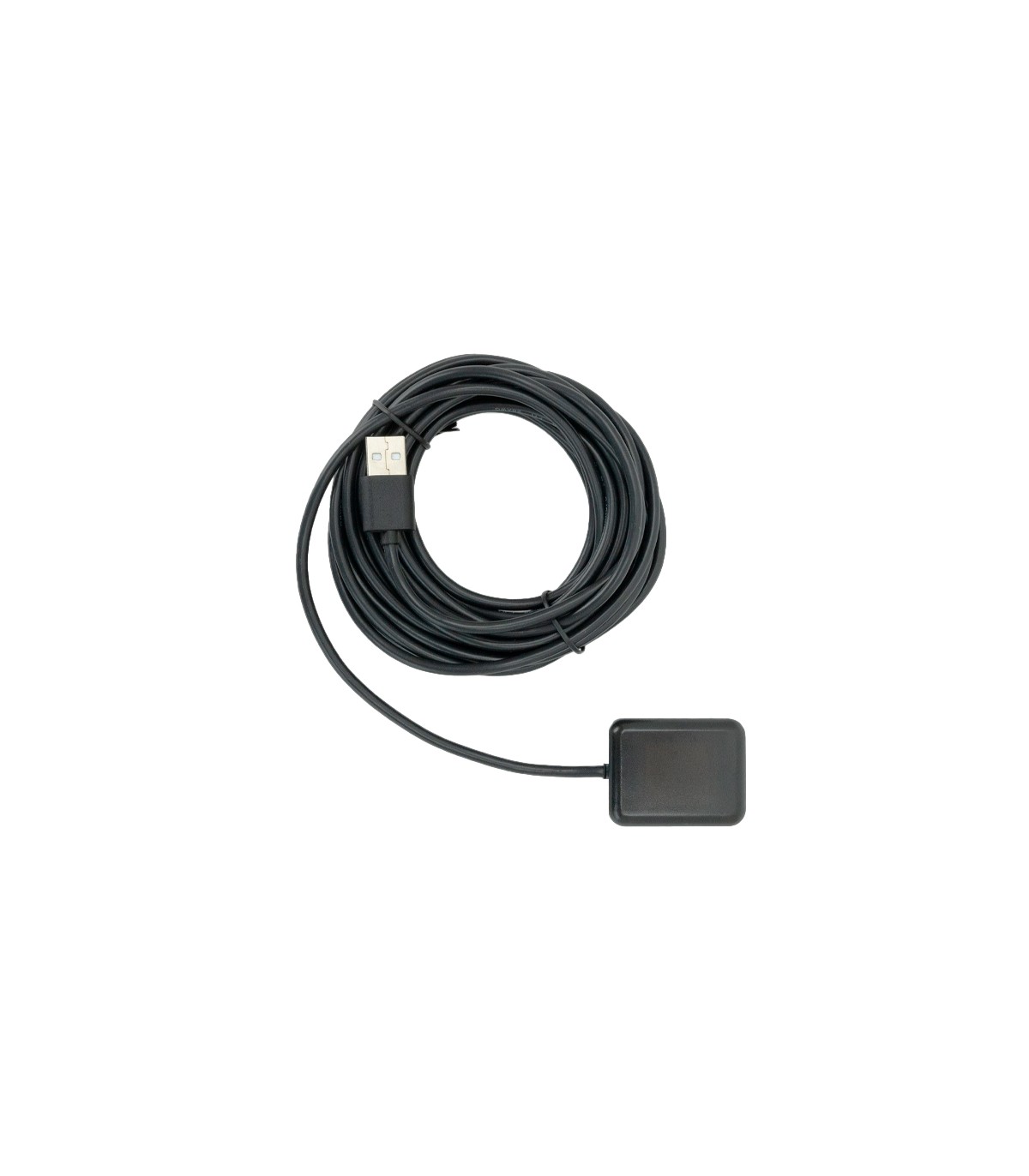

GPS receiver Module with USB connector and 5m cable
High-performance USB connector receiver module for multi-GNSS (GPS, GLONASS). It integrates the U-Blox 8 GNSS single chip (UBX-M8030-KT), FLASH memory, LNA circuit, SAW filter, and Patch antenna in a ground plane grid array module. Its compact design allows for easy connection to devices, providing positioning and communication functions.
Add to compare0
Add to wishlist
Technical Data
USB AM Connector, Cable L= 5m:
-
VCC / Power Input / Main Voltage Supply Input: 5V±0.5V
-
DM / I/O / USB Port D-Signal
-
DP / I/O / USB Port D+ Signal
-
GND / Power Input / System Ground
Antenna
-
Center Frequency: 1575.42±1.023 MHz
-
Bandwidth (10 dB Return Loss): Minimum 10 MHz
-
Gain at Zenith: Typical 5.0 dBic
-
Gain at 10° Elevation: Typical -1.0 dBic
-
Polarization: R.H.C.P
-
Axial Ratio: Maximum 3.0 dB
LTE
-
Center Frequency: 1575.42±1.023 MHz
-
Total Power Gain: Typical 30 dB
-
Noise Figure: Maximum 1.5 dB
-
Output V.S.W.R: Maximum 1.5
Specifications
-
Dimensions: 35.2 × 45.2 × 14.55 mm
Operating Temperature:
-
Without Battery: -40 to +85ºC
-
With Battery: -20 to +60ºC
Operating Humidity: 10% to 95% RH
Storage Temperature: -40 to +90ºC
Storage Humidity: 10% to 95% RH
EAN:8435757703577
