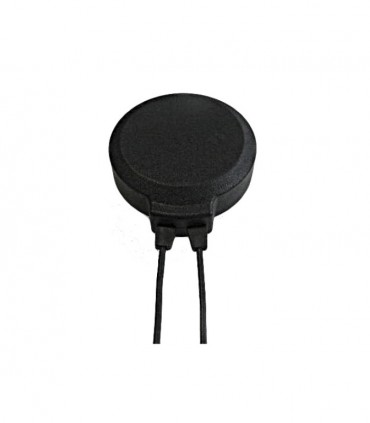

Antena móvil multibanda 2.14dBi (GSM/3G) / 2.00dB (GPS), versión magnética con conector FME

Technical  Data Telephone
Antenna Type: Low Profile Antenna
Impedance: 50 Ω
Frequency Range: GSM-ETACS-NNT: 824 ÷ 960 MHz
PCN-GSM: 1710 ÷ 1880 MHz
UMTS: 1900 ÷ 2170 MHz
Max. Power: 10W
V.S.W.R: Less than 2
Emission: Omnidirectional
Gain: 2.14 dBi
Cable lenght: RG 174 mm. 3000 ± 20
Connector: FME m.

Technical Data GPS
Antenna Type: Active Planar Patch Ant.
Impedance: 50 Ω
Center Frequency: 1575,42 MHz
Bandwidth: ±1,023 MHz
V.S.W.R: Less than 2.0
Polarization: RHCP
Supply Voltage: 2.7 ÷ 5
Current Absorption (mA): 12 ± 1 at 2.7 V / 26 ± 1 at 5 V
Gain Amplifier (dB) 24 ± 1 at 2.7 V / 26 ± 1 at 5 V
Gain Patch Antenna: 2 dB
Noise figure: 1.7 ÷ 2.1 dBi
Temperature: -30ºC ÷ +80ºC
Cable lenght: RG 174 mm. 3000 ± 20
Connector: SMA m.

Specifications
Base Dimension Ø:73x22 mm
Cap Material: Polyamide 6
Base Material: Zamac
Colour : Black
Mounting: Magnetic
Temperature: -30ºC · +80ºC

EAN:8435757703317
