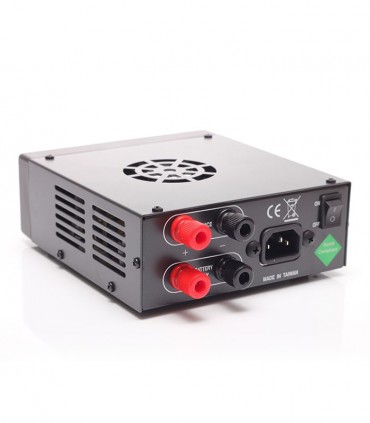

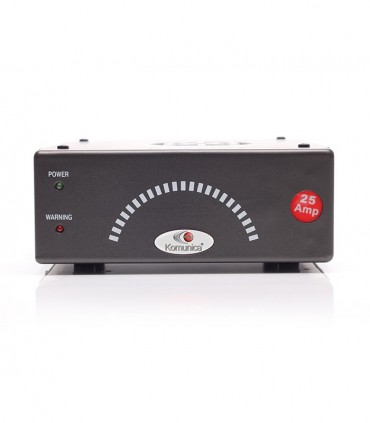

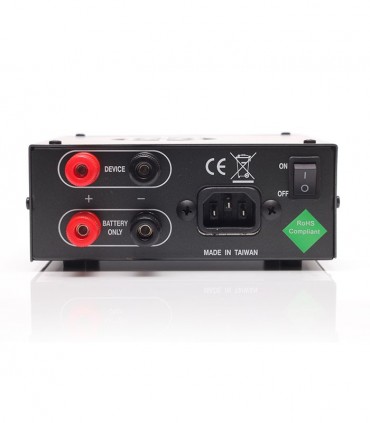

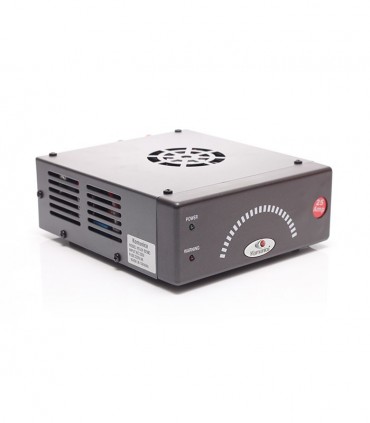

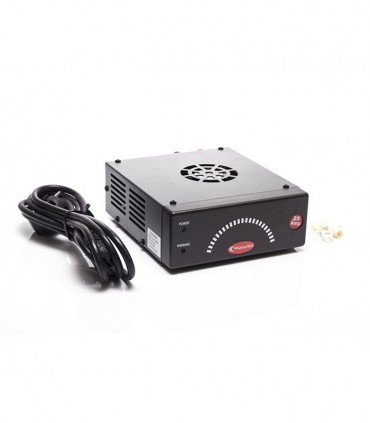

AV-825-BC

Power Supply 25Amps, with charger

Switching power supply 25AMPS with battery-charger connection. Output voltage fixed 13,8V.

Read moreShow less
Add to compare0
Add to wishlist
Specifications

Specifications

  • Input Voltage: AC 90~125 or AC 200~240 inside selectable
  • Output Voltage: AV-825-BC Fixed 13.8V
  • Output Voltage Regulation: Less than 1%
  • Ripple: Less than 9 mVp-p at rated load
  • Dimentions (L·W·H): 165 X 147 X 55 mm
  • Weight: 1.4 Kg


Protection

  • Short Protection, Short Protection & Over Voltage Protection >16V:
  • It will reduce the output voltage down to 0.1v Amps down to 0.4Amps and
  • the warning led will light up. When short condition, removing it will automatic restart
  • the power supply to normal condition.
  • Over Temperature Protection
  • AV-825-BC Series has double stage over temperature protection


Output Current

  • AV-825-BC Max 25 Amps continuous 22 Amps
  • Battery Back current 15 Amps intermittent OR 4 Amps continuous

EAN:8435757700897
