This highly efficient switch mode step-up DC-DC converter converts an input voltage of 12 VDC nominal (range 9 VDC to 18 VDC) to a highly regulated output voltage of 24 VDC nominal (24,7 VDC) at 10 Amps. The STEP 10 DC-DC converter is non-isolated (no galvanic isolation between input and output) and meant for use in negative ground systems.
Switch mode step-down DC-DC converter.

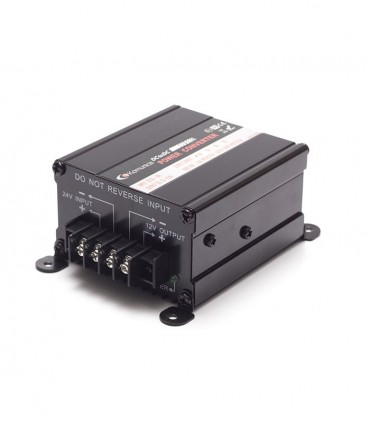

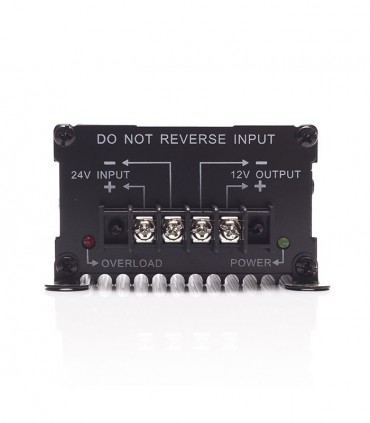

Voltage Reducer 24 to 12 V
Output power (continuous): 10 Amps
Add to compare0
Add to wishlist
-
Input voltage: DC 20V ~ 30V
-
Output voltage: DC 12V ~ 13.8V
- Standby input current: <20mA
-
Output power (continuous): 10A
- Output power (max): 15A
-
Efficiency: 90%
-
Cooling: by air convection
-
Input polarity reverse: circuit protection
-
Output polarity reverse: circuit protection
-
Over heating: circuit protection
-
Overload: circuit protection (led incidator-red)
-
Output short: circuit protection
-
Fuse: 15A
-
Dimensions: 77 * 73 * 45 mm
-
Net weight: 285g
EAN:8435757701689
