This highly efficient switch mode step-up DC-DC converter converts an input voltage of 12 VDC nominal (range 9 VDC to 18 VDC) to a highly regulated output voltage of 24 VDC nominal (24,7 VDC) at 10 Amps. The STEP 10 DC-DC converter is non-isolated (no galvanic isolation between input and output) and meant for use in negative ground systems.
Switch mode step-down DC-DC converter.

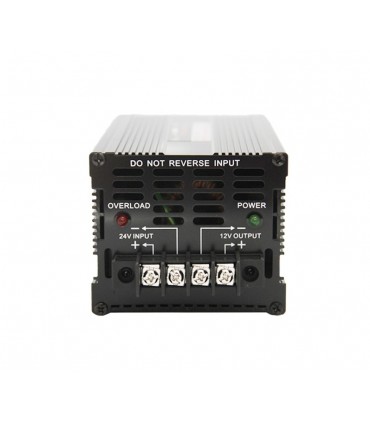

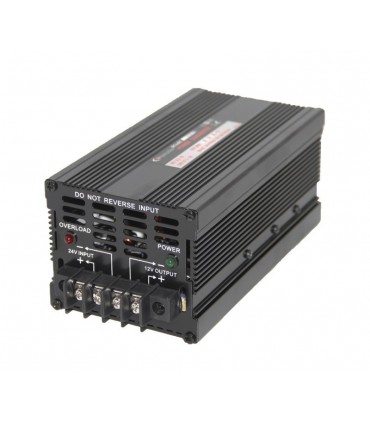

Voltage Reducer 24 to 12 V
Output power (continuous): 30 Amp.
Add to compare0
Add to wishlist
-
Input voltage: DC 20 ~ 30 V
-
Output voltage: DC 12 ~ 13.8 V
- Standby input current: <30mA
-
Output power (continuous): 30A
- Output power (max): 40A
-
Efficiency: 90%
-
Cooling: Auto-operation fan
-
Input polarity reverse: Circuit protection
-
Output polarity reverse: Circuit protection
-
Over heating: Circuit protection
-
Overload: Circuit protection (led incidator-red)
-
Output short: Circuit protection
-
Fuse: 35A
-
Dimensions: 165 * 88 * 74 mm
-
Net weight: 950g
EAN:8435757701719
