KP-2201-IL

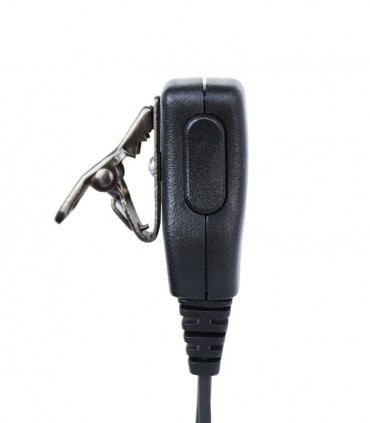

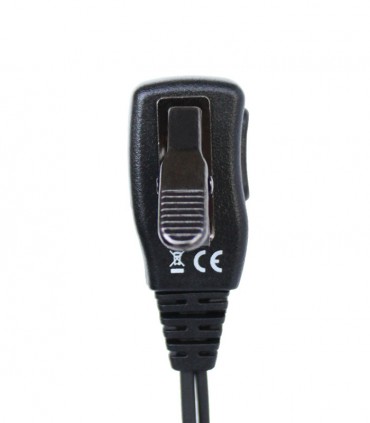

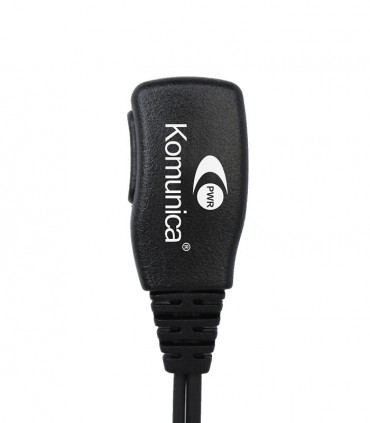

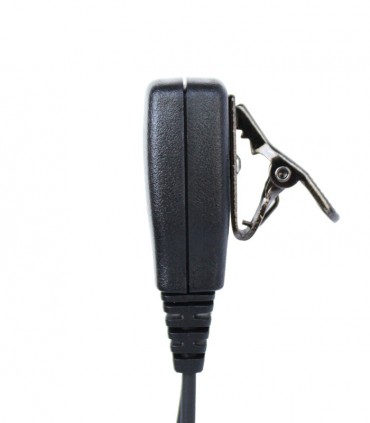

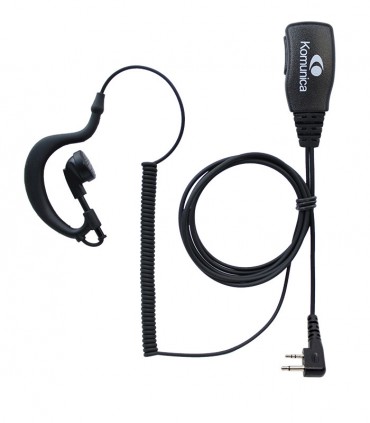

Komunica basic micro-earphone compatible with Icom (2 Pin)

Compatible with:
ICOM
F3G, F3GS, F4G, F4GS, F11, F11S, F33G, F43G, F21BR, F21GM, F24S, F3021, F4021… etc.
Read moreShow less
Add to compare0
Add to wishlist
Specifications
Feature
  • Reinforced cable
  • High quality earphone and microphone provide absolute audio clarify
  • Revolving ear-hook allows use either right or left ear and adapts easily to any ear size
  • Designed for general applications, industrial, hotels hospitals surveillance, etc
Speaker
  • Distorsion:  ≤ 5% at 100 Hz – 5 KHz 1mW
  • Input Power:  Rated: 10mW Max:20mW
  • Speaker Sensitivity: 80dB±3dB @ 1kHz
  • Rated Resistance: 32Ω ± 15%
  • Working Temperature:  -20ºC ~ + 55º
Microphone
  • Microphone Type:  Electret Microphone
  • Frequency Range: 100Hz - 10kHz
  • Directivity:  Omni-directional
  • Sensitivity: ≤.2k Ω
  • Impedance:  -42dB±3dB @ 1kHz
  • Working Voltage:   1V~10V
  • Working Temperature:  -20ºC ~ + 55º

EAN:8435757703157

Read moreShow less
Product Details
KP-2201-IL

Data sheet

Compatible con:
ALAN / MIDLAND
ICOM
REXON

Specific References

ean13
8435757703157
