KP-2203

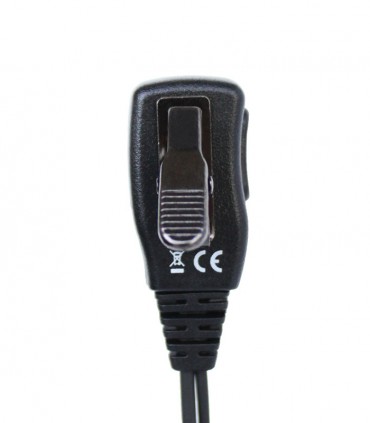

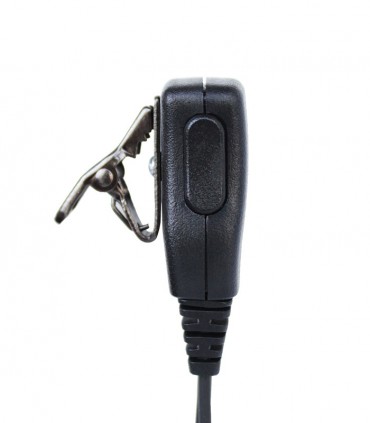

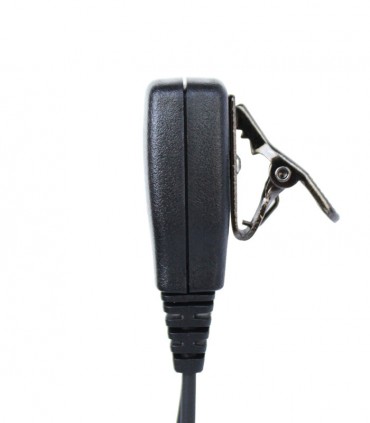

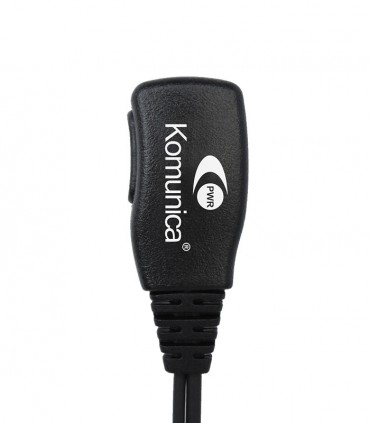

Komunica basic micro-earphone compatible with Motorola (2 Pin)

Compatible with:
MOTOROLA
GP300, DP-1400, SP50, P110, P-1225/P1225LS, LTS2000, CP88, CP150, CP200, CT150, CT250, CT450, CT450LS, GP308, P080, P2000, PRO2150, PRO3150, P040, P080, GP68, GP88, PR400.
XT420/460XT/ XTN446 /  CP040,,
Midland G18, G15,
HYTERA
series TC-500/600/2100/1600
YAESU: FT-4XE / FT-25E
Read moreShow less
Add to compare0
Add to wishlist
Specifications
Feature
  • Reinforced cable
  • High quality earphone and microphone provide absolute audio clarify
  • Revolving ear-hook allows use either right or left ear and adapts easily to any ear size
  • Designed for general applications, industrial, hotels hospitals surveillance, etc
Speaker
  • Distorsion:  ≤ 5% at 100 Hz – 5 KHz 1mW
  • Input Power:  Rated: 10mW Max:20mW
  • Speaker Sensitivity: 80dB±3dB @ 1kHz
  • Rated Resistance: 32Ω ± 15%
  • Working Temperature:  -20ºC ~ + 55º
Microphone
  • Microphone Type:  Electret Microphone
  • Frequency Range: 100Hz - 10kHz
  • Directivity:  Omni-directional
  • Sensitivity: ≤.2k Ω
  • Impedance:  -42dB±3dB @ 1kHz
  • Working Voltage:   1V~10V
  • Working Temperature:  -20ºC ~ + 55º

EAN:8435757703195

Read moreShow less
Product Details
KP-2203

Data sheet

Compatible con:
ALAN / MIDLAND
ALINCO
MOTOROLA
VERTEX / YAESU

Specific References

ean13
8435757703195
