A-301/800-12

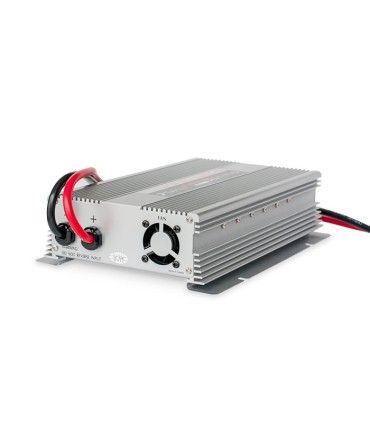

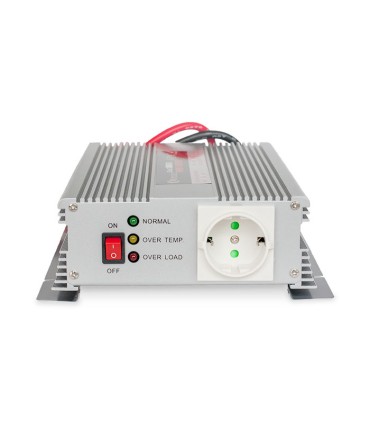

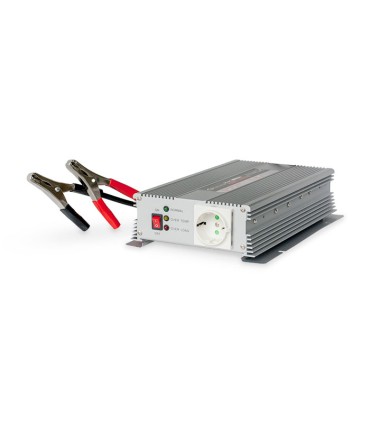

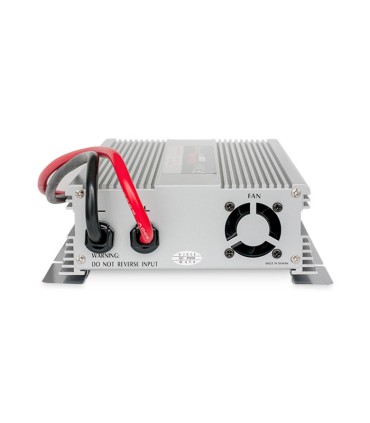

Inverter 800W, 12V/220V

Specifications
Specifications:
  • Input Voltage Range: 10-15V DC
  • Input Full Load Current: 82A
  • Standby Input Current: 0.50A
  • Output Voltage (Ac): 230V
  • Output Waveform: Modify Sinewave
  • Output Frequency: 50Hz
  • Continue Output Power: 800W
  • Output Power: 2000W
  • Peak Output Power: 1500W
  • Efficiency: 85-90%
  • Battery Low Alarm: 10+/-0.5V DC
  • Battery Low Shutdown: 9.5+/-0.5V DC
  • Thermal Protect: 60+/-5DEG CW
  • Overload Protect: Yes (microcontroller)
  • AC Output Short Protection: Yes (microcontroller)
  • High Voltage Input Protection: Yes (microcontroller)
  • Battery Polarity Protection: Yes (by fuse )
  • Fuse: 30A *4
  • Dimensions (L*W*H) mm: 280 * 200 * 70
  • Weight: 2000g

EAN:8435757700170

Read moreShow less
Product Details
A-301/800-12

Specific References

ean13
8435757700170
