PGM-20-M

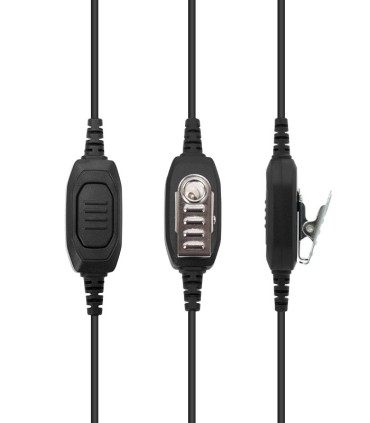

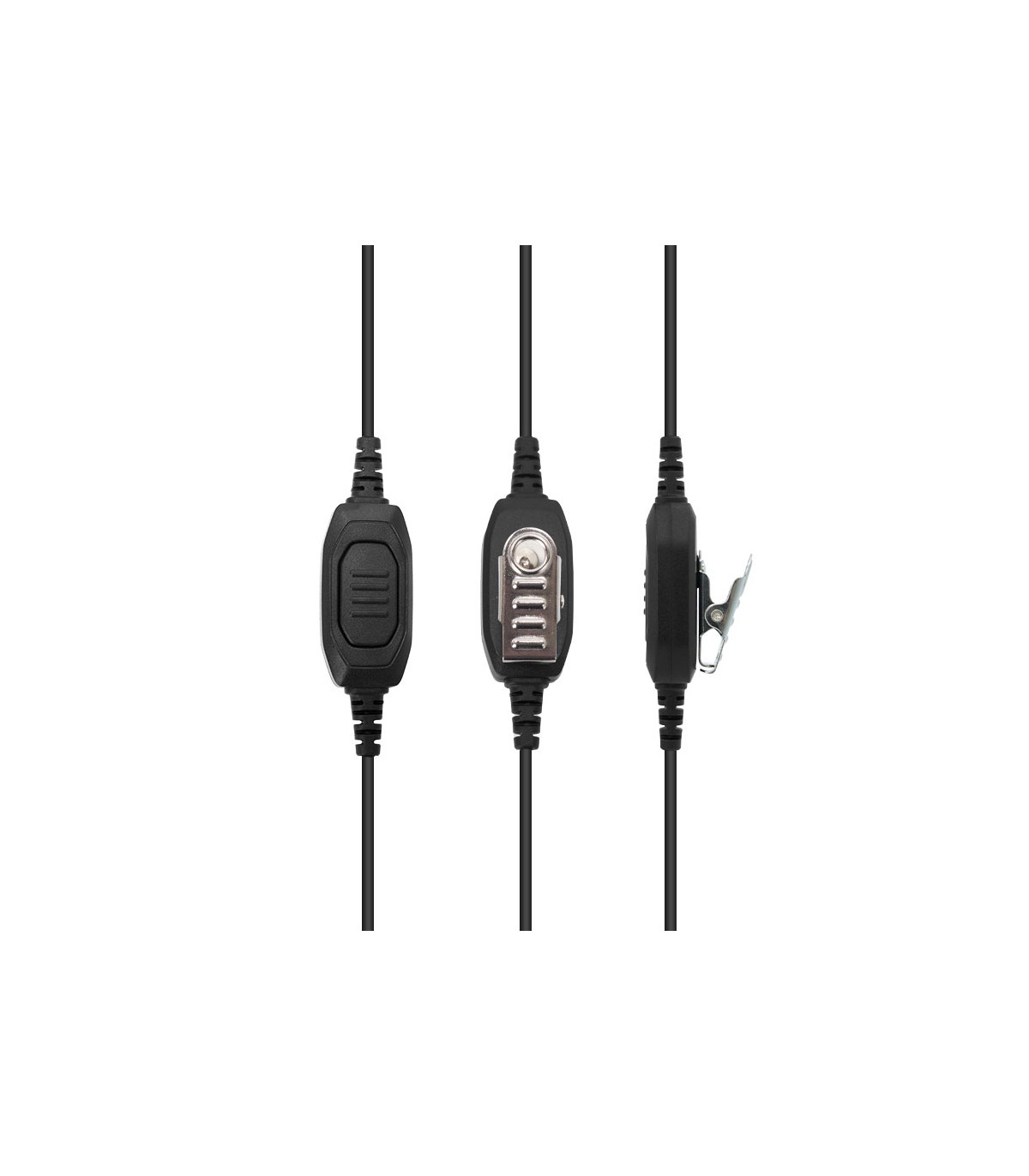

Monoaural Headset + lapel PTT compatible with Motorola 2P connexions

LIGHTWEIGHT PADDED HEADBAND HEADSET
Compatible with:
MOTOROLA
GP300, DP-1400, SP50, P110, P-1225/P1225LS, LTS2000, CP88, CP150, CP200, CT150, CT250, CT450, CT450LS, GP308, P080, P2000, PRO2150, PRO3150, P040, P080, GP68, GP88, PR400... etc. radio,HLN9716, HLN9482A... etc.
XT420/460
ALAN/MIDLAND
series G-15/G-18
HYTERA
series TC-500/600/620/2100/1600
YAESU: FT-4XE / FT-25E
Read moreShow less
Add to wishlist
Specifications
Features
  • Metal clip - 360º
  • Noise Cancelling
  • Light weight headset, single side eraphone with boom microphone and inline PTT
Microphone:
Fully rotating boom microphone for left or right side positioning
  • Type: Condenser
  • Dimension: φ 9.7 x 5.0 mm
  • Sensitivity: -44 ± 2dB
  • Output Impedance: 2.2kΩ ±10%
  • Frequency Range: 70Hz~10KHz
  • Directivity: Uni-direccional
  • Voltage: 2-10V
Speaker
  • Impedance: 100 Ω ±15%
  • Sensitivity: 99±3dB
  • Input Power: 1W
  • Max Input Power: 1.5W
  • Frequency: FO~20kHz
  • Dimension: φ29.8 x 3.7 mm
Operating Temperature: -20ºC ± 2ºC ~ 50ºC ± 2ºC

EAN:8435757704321

Read moreShow less
Product Details
PGM-20-M

Data sheet

Compatible con:
ALAN / MIDLAND
HYTERA
MOTOROLA
VERTEX / YAESU

Specific References

ean13
8435757704321
