Fiberglass base antenna 134-174MHZ, with radials, 6.5 dbi, 200W,1700 MM., PL connector.

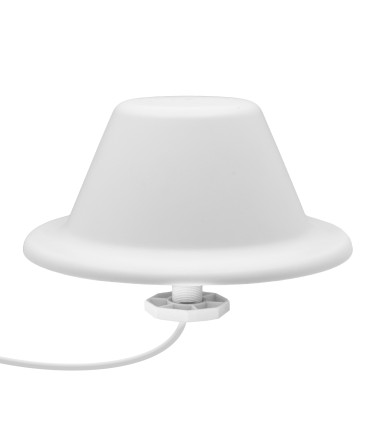

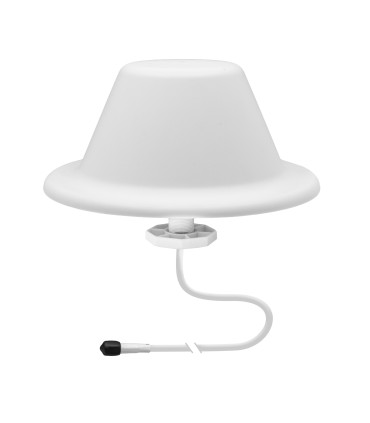

Omnidirectional Antenna Ceiling LTE
GSM / DCS / 3G - LTE / WI-FI
Add to compare0
Add to wishlist
Technical Data LTE:
Antenna Type: Omnidirectional
Impedance: 50 Ω
Frequency Range 3G/LTE: 698 ÷ 960 MHz / 1710 ÷ 2700 MHz
Max. Power: 50W
V.S.W.R. LTE: 698 ÷ 790 less than 2.5 / 790 ÷ 960 less than 1.6 / 1710 ÷ 2700 less than 1.6
Beamwidth: Horizontal 360º / Vertical 85º
Gain: 2.14 dBi
Cable lenght: 1MT, white
Connector: SMA m.
Polarization: Vertical
Especifications:
Dimensions: Ø185 x 85±5 mm
Weight: 234 g.
Base Material: Aluminium Alloy
Color: White
Temperature: -40ºC - +60ºC
EAN:8435757702143
