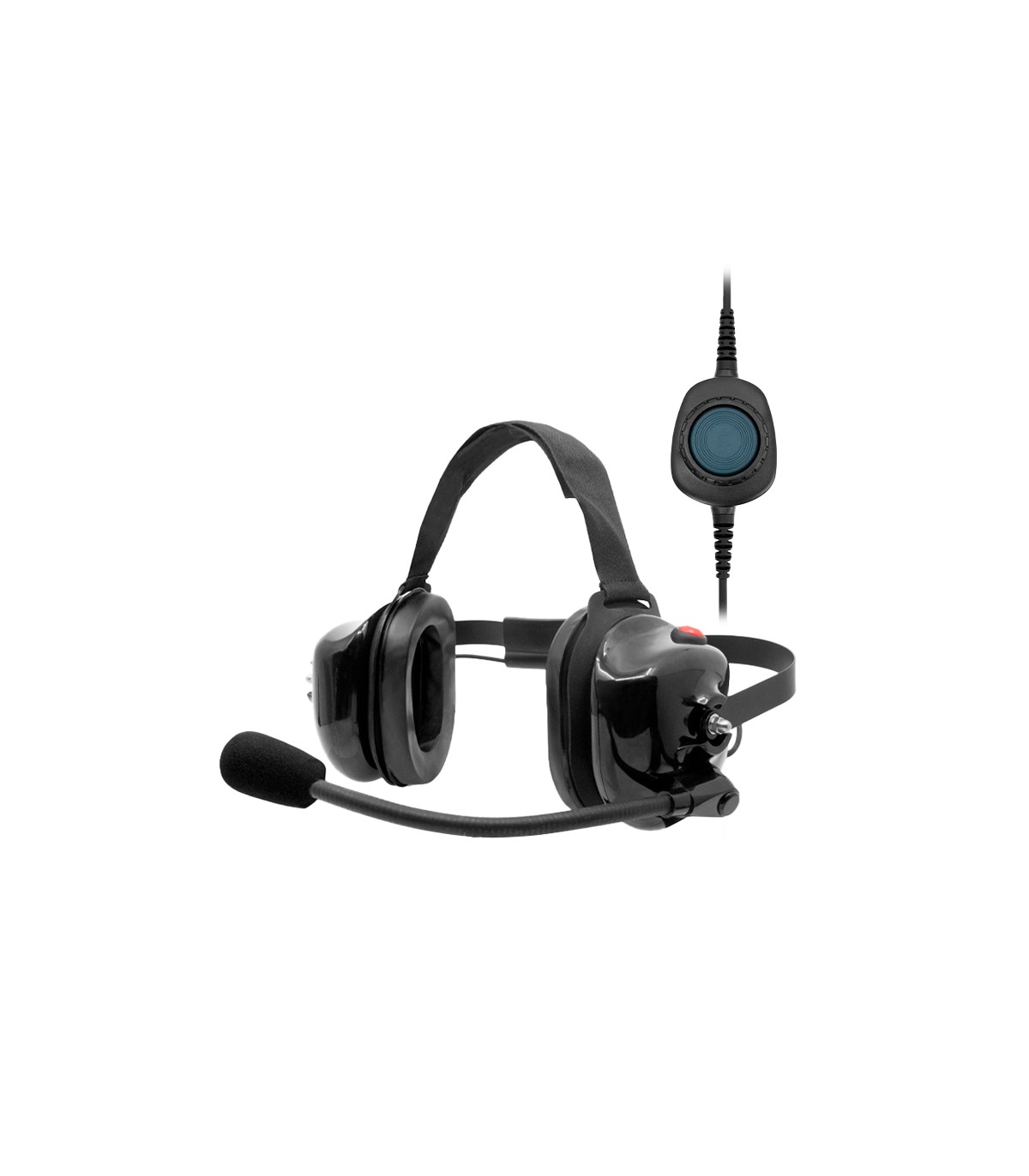

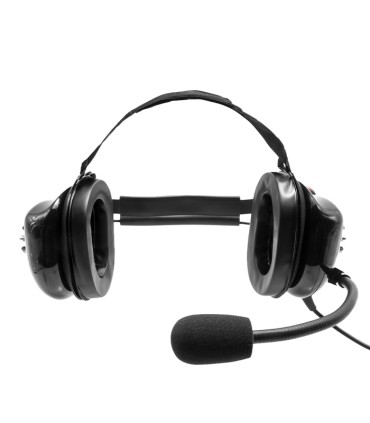

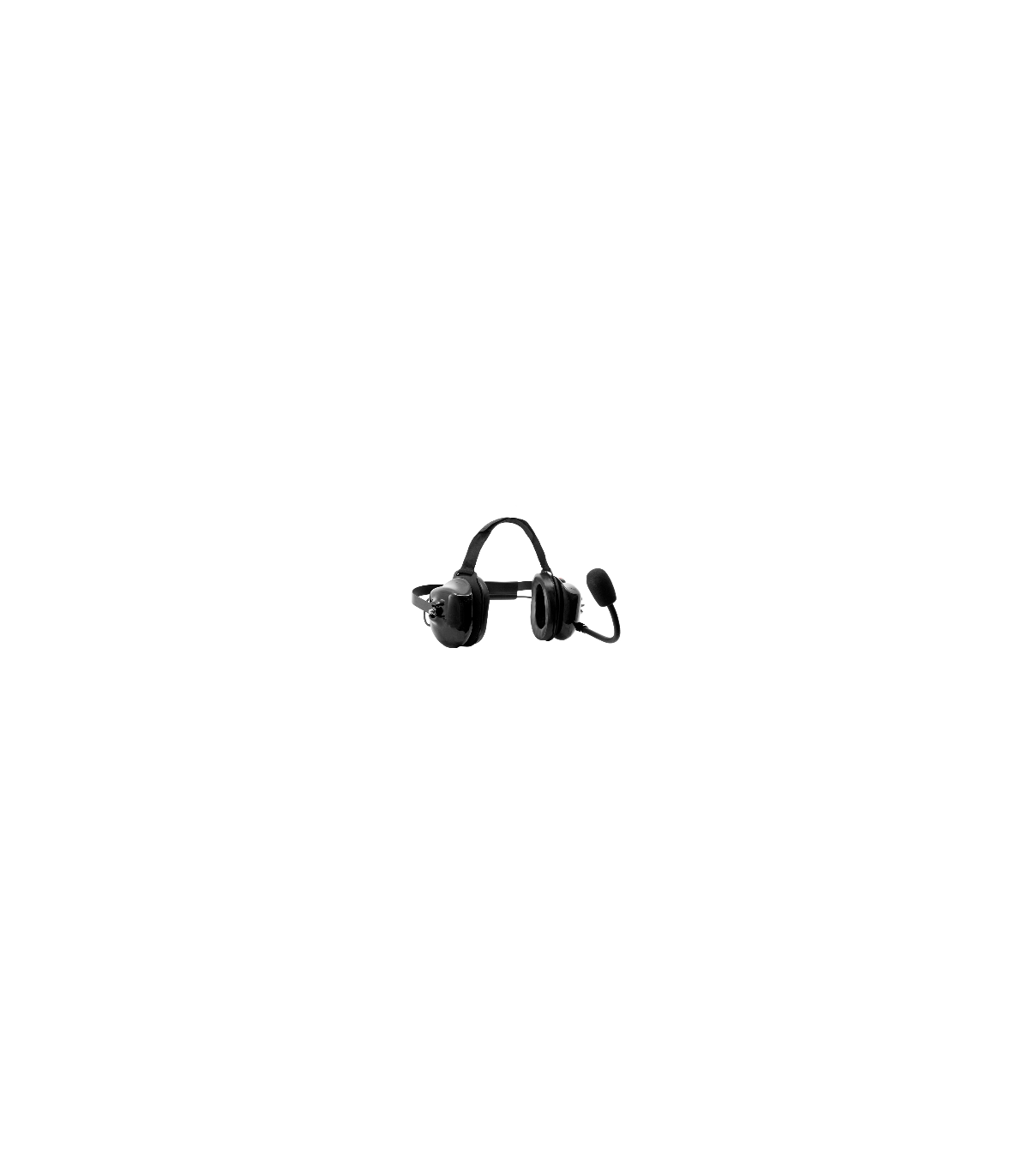

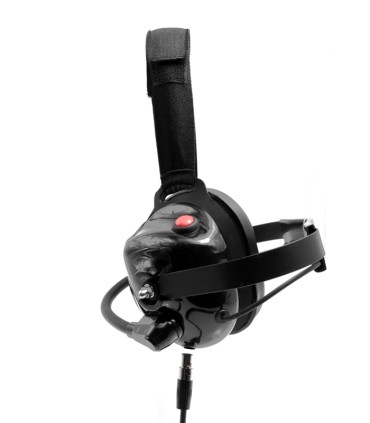

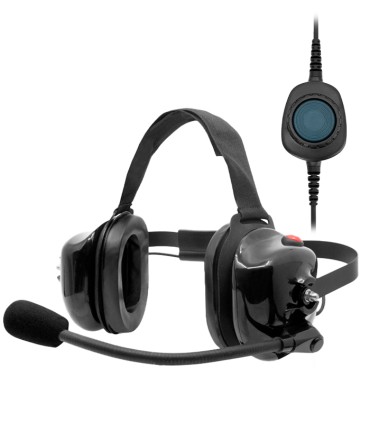

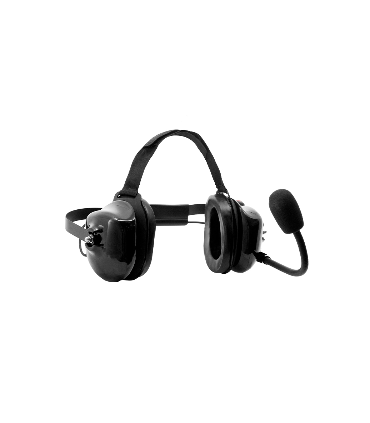

Professional and rugged Noise-Cancelling Headset 25dB + "Quick Disconnect" Connector for Motorola TRBO

Professional and rugged Noise-Cancelling Headset 25dB + "Quick Disconnect" Connector for Motorola TRBO

NC-PRO-QD-TRBO

Professional and rugged Noise-Cancelling Headset 25dB + "Quick Disconnect" Connector for Motorola TRBO

Professional and rugged Noise-Cancelling Headset 25dB + "Quick Disconnect" Connector for Motorola DP2000

Komunica Professional and Robust Headset with Noise-Cancelling system + "Quick disconnect" connector

Komunica Power professional noise-cancelling headset

Compatible with Motorola terminals — Click to view compatible models

MotoTRBO DMR:

DP3400, DP3401, DP3600, DP3601, DP3601APX, DP4400, DP4401, DP4600, DP4601, DP4800, DP4801, DGP4150, DGP5050, DGP5550, DGP6150, DGP8050, DGP8550, XPR3600, XPR4500, XPR4550, XPR6100, XPR6300, XPR6350, XPR6380, XPR6500, XPR6550, XPR6580, XPR7350, XPR7550, MTP6550, MTP6750, MTP830S, MTP830 FUG, MTP850S, MTP850 FUG

Clear communication

The directional noise-cancelling microphone reduces background noise so that the voice is transmitted cleanly, clearly and perfectly intelligibly.

25 dB noise protection

Designed to support reliable communication in industrial, operational and professional environments with high noise levels.

Maximum comfort

The GEL ear cushions help reduce pressure on the ears and provide excellent comfort during extended periods of use.

Designed for demanding use

Its reinforced structure, rear metal band and highly resistant materials provide excellent durability in professional applications.

Compatible with safety helmets

Its rear metal band design allows it to be used comfortably with approved protective helmets.

Dual PTT button

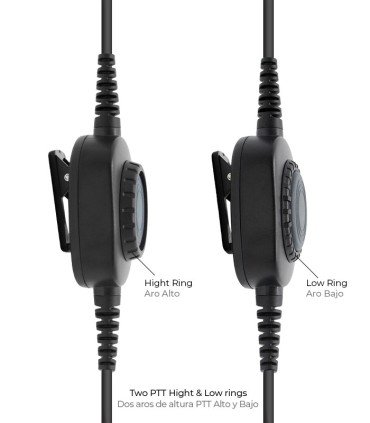

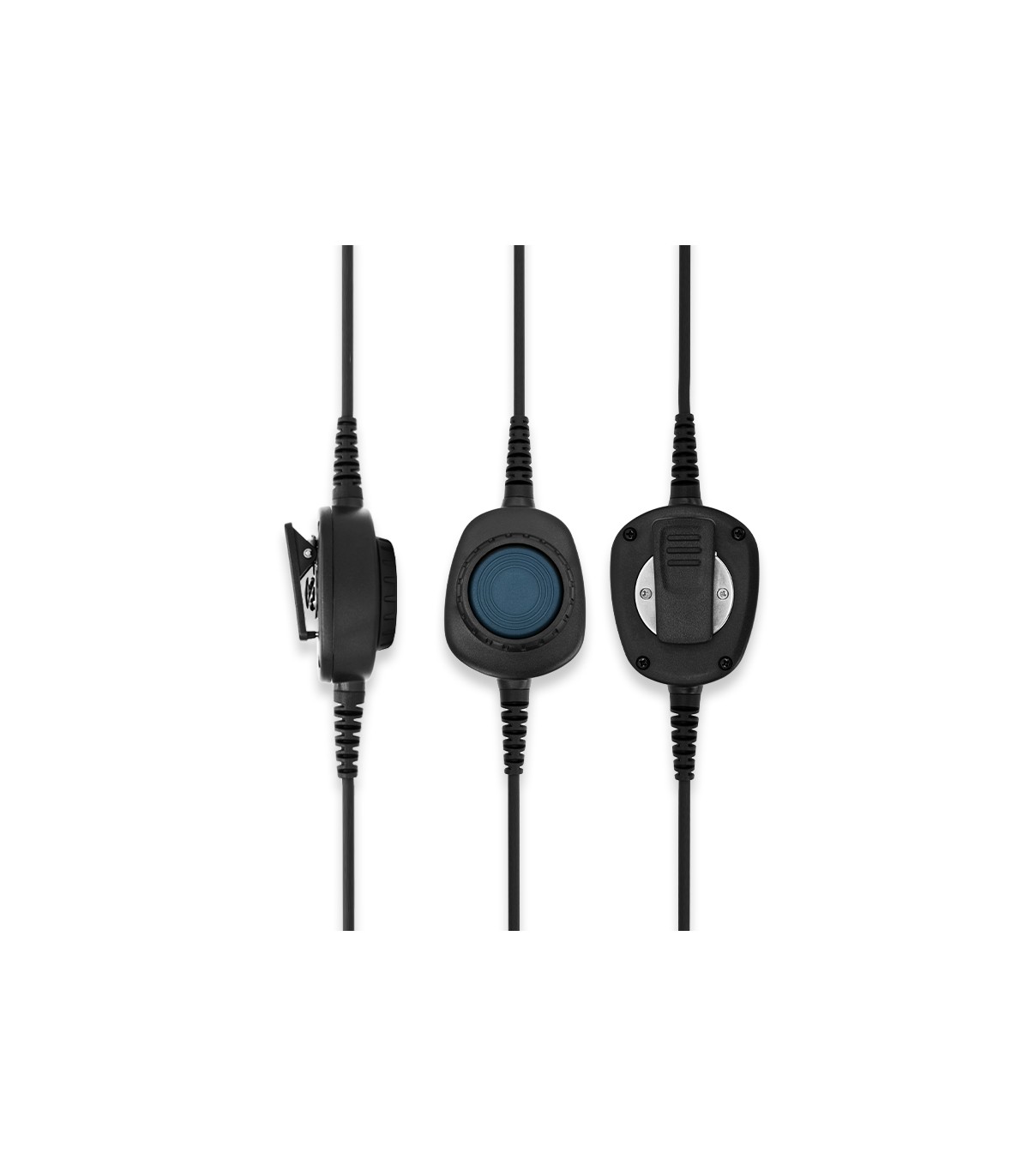

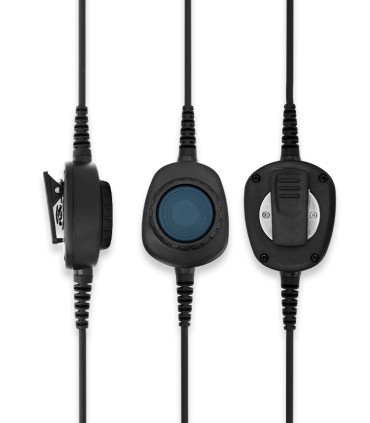

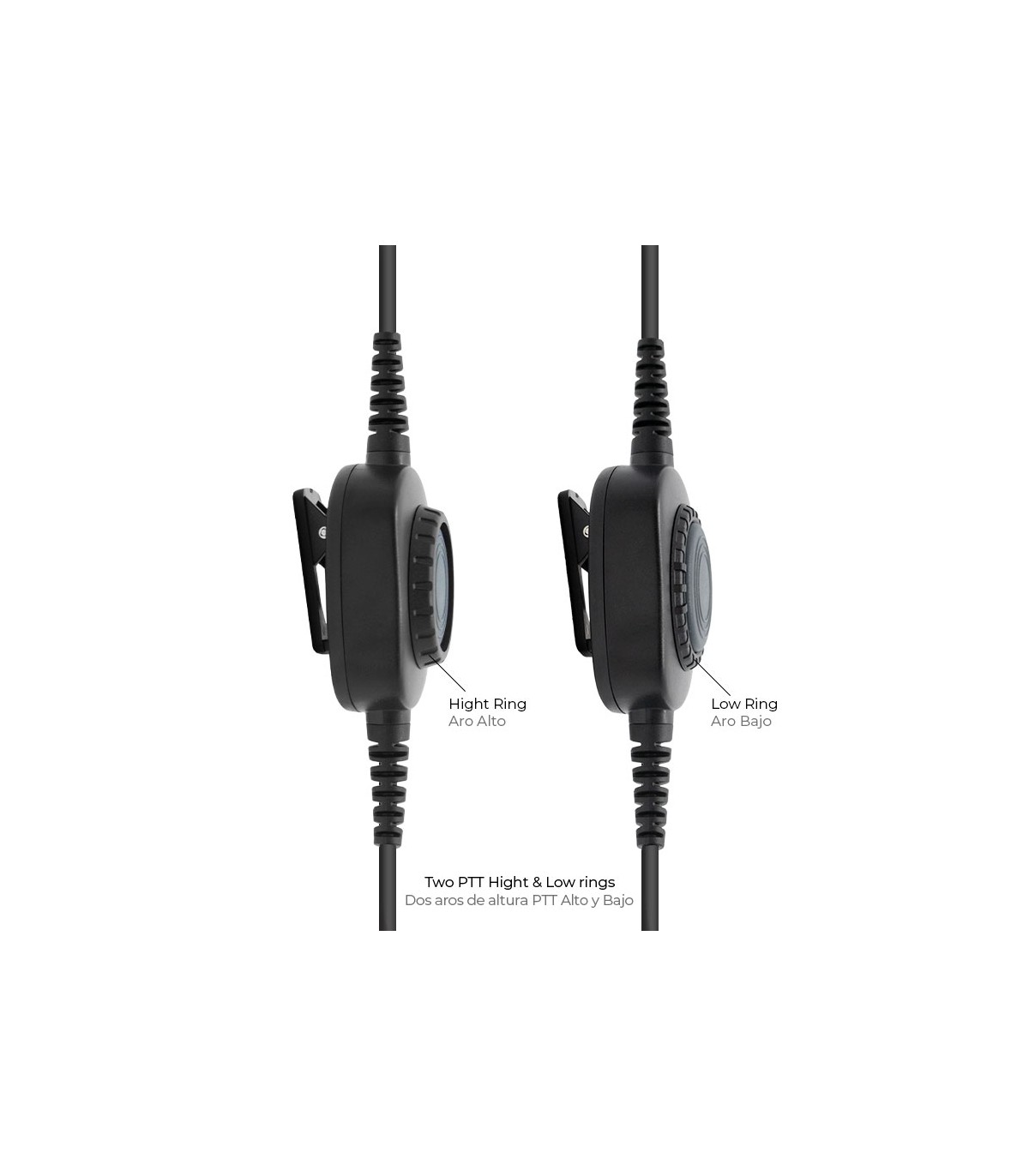

Includes one PTT button integrated into the headset and another in-line PTT button.

**Flexible gooseneck microphone**

The flexible boom allows the microphone position to be adjusted easily for optimal voice pickup. It includes a foam windscreen to reduce wind noise and improve communication clarity.

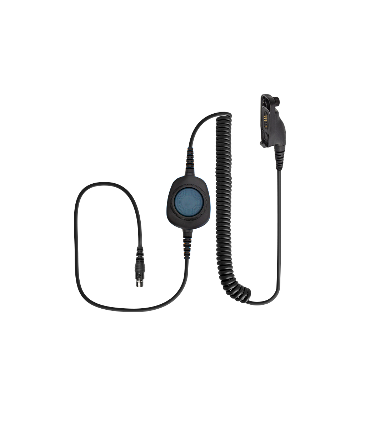

Quick Disconnect system

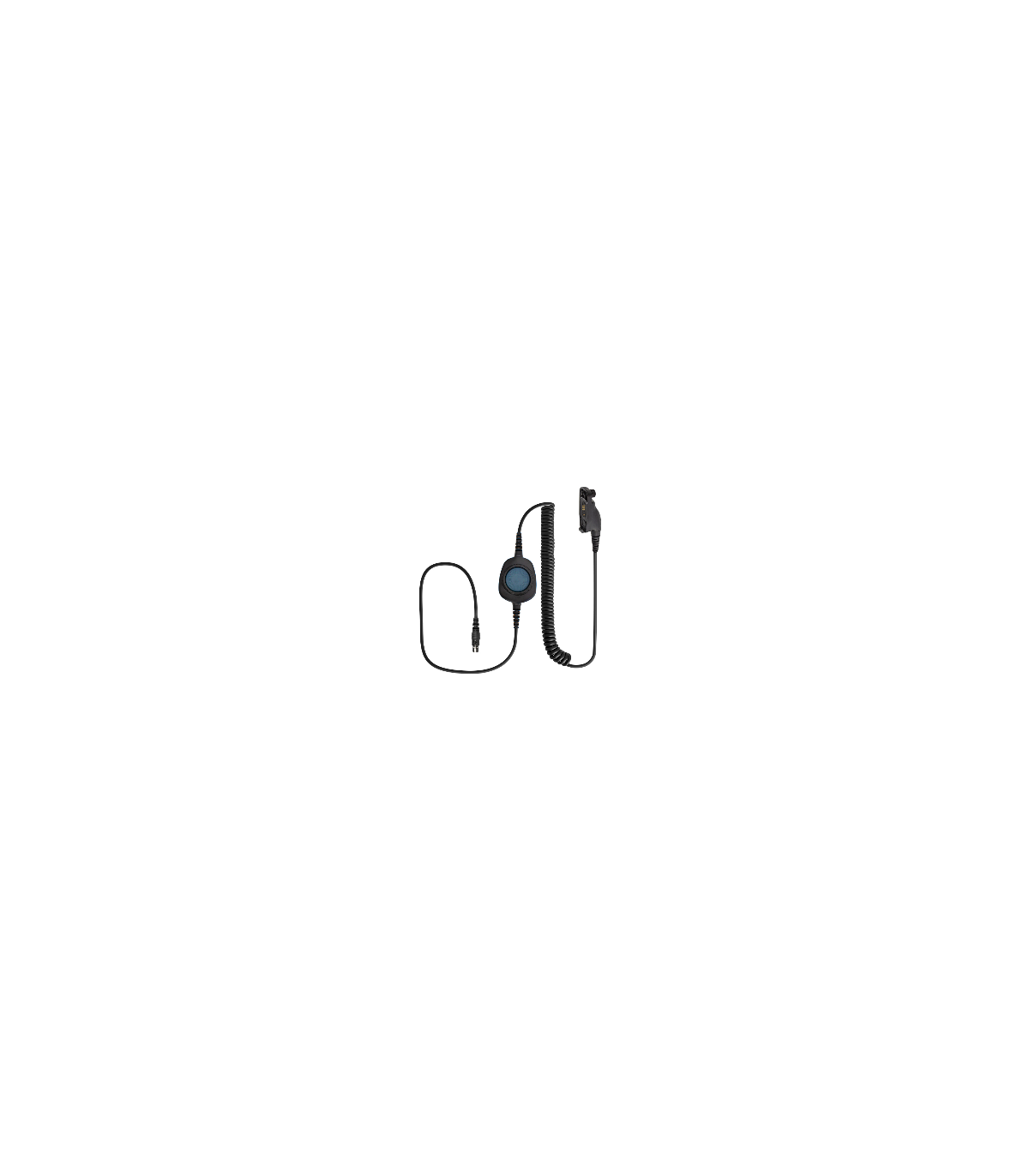

The Quick Disconnect system allows the connection cable to be replaced quickly without having to replace the entire headset.

Available in different colours. Please check availability.

Validated compatibility: Komunica PWR® has been validated by Motorola® for the production of Komunica® audio accessories compatible with the MXP600 and R7 series.

⚠️ Important: make sure that the firmware of the Motorola terminals is updated to at least version 2022.02 or later.

General Specifications

Signal-to-Noise Ratio (SNR): 25 dB

Operating Temperature: -20 ℃ ±2 ℃ to 50 ℃ ±2 ℃

Weight: 540 g

Connector: Quick Disconnect

PTT: In-line and on-earcup

Speaker Specifications

Speaker Dimensions: Φ44.6 × 8.3 mm

Impedance: 8 Ω ±15% @ 1.0 Hz / 1.0 V

Rated Input Power: 2.0 W

Maximum Input Power: 3.0 W

Sound Pressure Level (SPL): 86 dB ±3 dB

Measurement: Average at 1 W, 0.5 m

Test Frequency: @ 1, 1.2, 1.5, 2 kHz

Frequency Response: 300 Hz ~ 18 kHz, average SPL -10 dB

Distortion: 5% max. @ 1000 Hz / 1 W

Microphone Specifications

Type and Dimensions: Condenser microphone, Φ9.7 × 5.0 mm

Output Impedance: 2.2 kΩ ±10% @ 1 kHz

Sensitivity: -44 dB ±4 dB (-44 ±3) [0 dB = 1 V/Pa, 1 kHz]

Frequency Range: 50 Hz ~ 10 kHz

Directivity: Unidirectional

Rated Voltage: 2 V

Maximum Operating Voltage: 10 V

Signal-to-Noise Ratio: 58 dB @ 1 kHz, Pin = 1 Pa (A-weighted)
