Headset replacement for PWR-23 & PWR-24 series, "bud" type.
PWR-23-ICF11

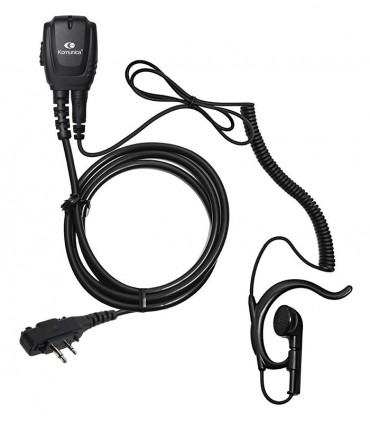

Micro-earphone coil cord + earhanger for ICF-11
Compatible with:
ICOM Series: IC-F3G, IC-F3GS, IC-F4G, IC-F4GS, IC-F11, IC-F12, IC-F21, IC-F14, IC-F14S, IC-F24, IC-F24S, IC-F25, IC-F31, IC-F33G, IC-F43G, IC-F43TR, BC100.
IC-F3001, IC-F3002, IC-F3011, IC-F3021, IC-F3021S, IC-F3021T, IC-F4001, IC-F4002, IC-F4011, IC-F4021, IC-F4021S, IC-F4021T, IC-F4101, IC-F4041, IC-F3101, IC-F3041, etc.
Add to compare0
Add to wishlist
Other compatibilities:
IC-DPR3, IP100H, IP500H, SK-2000, ID-51E & ID-31E
IP-501-H, IP-503-H
ID-31A / ID-31E / ID-51A / ID-51E / ID-52A / ID-52E, etc
Professional micro-earphone with coil cord. High-impact housing for professional and public safety users.
Features
-
Water resistant level: IP54
-
Metal clip - 360º
-
Plug-in System

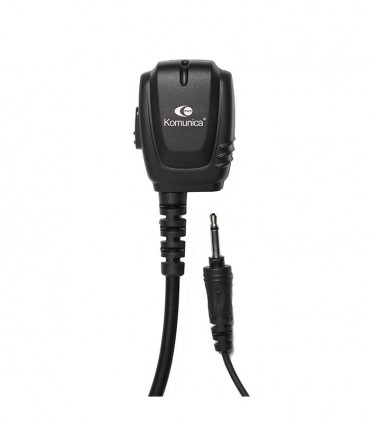

Microphone
-
Type of Element: Non-directional -Electric condenser
-
Sensitivity: -38dB (1V/ 1Pa)
-
Output Impedance: 2K ohm
-
Microphone size: 35,3·26·26 mm
Earphone
-
PWR-EH5 is supplied as standard
-
Diameter: 15 mm
-
Out Level: 92 dB/0.05 Watt. 0.01 Meter. (Artificial Ear IEC-318)
-
Input Power: 0.1W
-
Max Input Power: 0.2W
-
Output Impedance: 32 ohms
EAN:8435757704987
