Slim version, compatible with ICOM series:
IC-F1000 / 1000S / 1000T IC-F2000 / 2000S / 2000T IC-A16 IC-F29SR2 / F29SDR / F29DR2
Capacity: 1.500mAh
Voltage: 7.2V
Li-Ion
PWR-23-ICF-1000

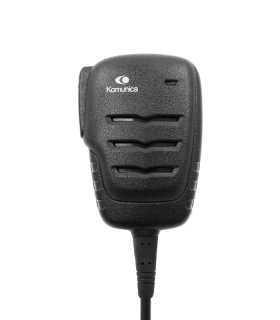

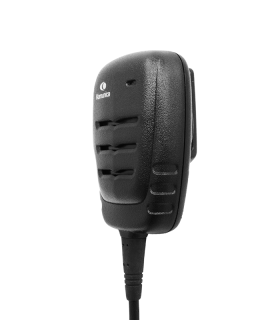

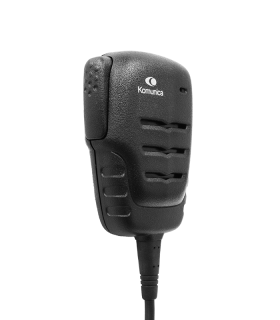

Micro-earphone with "water-proof" connector for ICF-1000/2000/29SR2
Compatible with:
ICOM ICF-1000, ICF-2000, F1000T, F2000T, F1000S, F2000S, IC-F1100, IC-F2100, ICF-3002, IC-F4002,
IC-F27, IC-F29SR, ICF-29SR2, IC-F29DR
IC-V80, IC-T3H, etc
waterproof conector
Add to compare0
Add to wishlist
Professional micro-earphone with coil cord. High-impact housing for professional and public safety users.
Features
-
Water resistant level: IP54
-

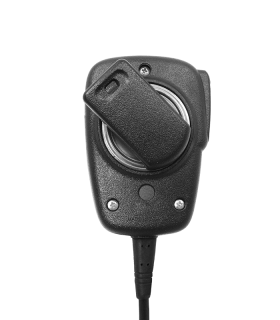

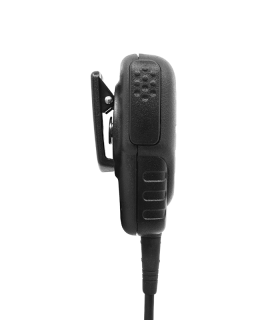

Metal clip - 360º
-
Plug-in System
Microphone
-
Type of Element: omnidirectional -Electric condenser
-
Sensitivity: -38dB (1V/ 1Pa)
-
Output Impedance: 2K ohm
-
Microphone size: 35,3·26·26 mm
Earphone
-
PWR-EH5 is supplied as standard
-
Diameter: 15 mm
-
Out Level: 92 dB/0.05 Watt. 0.01 Meter. (Artificial Ear IEC-318)
-
Input Power: 0.1W
-
Max Input Power: 0.2W
-
Output Impedance: 32 ohms
EAN:8435757704963
