PWR-MIC-2-K

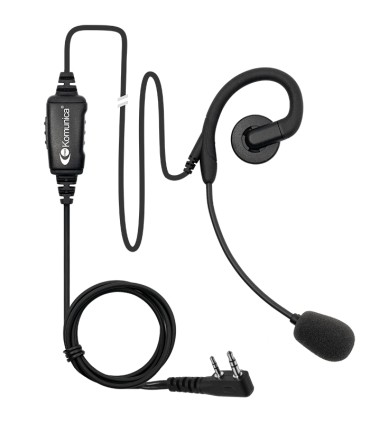

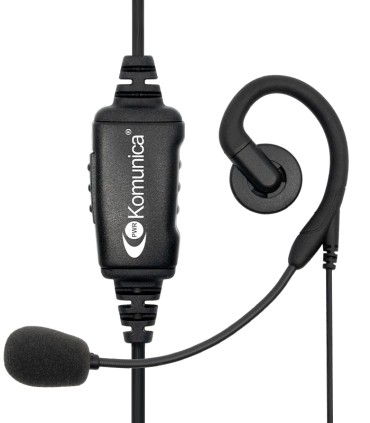

Boom-type Microearphone compatible with Kenwood 2 Pin

Compatible con:

KENWOOD

TK-272G/372G, TK3130 ProTalk XLS, XLS, TK-3131 Free Talk XLS,
Serie: 60, 70, 160, 170, 202, 3201, 302, 3301, 360, 312, 000, NX Digital, D40 para Walkie Talkie Kenwood
TK-3301E, TK-3302, TK-2360, TK-3360, TK-2000, TK-3000, TK-2302E, TK-3302E, TK-2312, TK-3312, TK-2170E3, TK-3170E3, TK-2170E, TK-3170E, TK2160E, TK3160E, TK-2202E, TK-3201, TK-260, TK-360, TK-270, TK-370, TK-3400, TK-3401 - DE, TK-3401-DT, TK-3402, TK-3501-E, TK-3501-T, TK-5320, TK-5400, TK-5410, NX-220E, NX-320E, NX-220E2, NX-320E2, NX-220E3, NX-320E3, TK-D240, TK-D340...
TEAM, WOUXUN, etc.

HYTERA
TC Series: TC-265, TC-268, TC-268S, TC-270, TC-278, TC-365, TC-366, TC-368, TC-368S, TC-370, TC-380.

Read moreShow less
Notify me when available
Add to compare0
Add to wishlist
Specifications
Microphone Specifications:
Type: Condenser
Dimensions: 6.0 x 5.0 mm
Output Impedance: 2.2kΩ ±10%
Sensitivity: -40 ± 2dB
Direction: Omnidirectional
Voltage: 2-10V
S/N Ratio: 58dB
Earphone Specifications:
Dimensions: 13 x 2.7 mm
Impedance: 32 Ω ±15%
Input Power: 3mW
Maximum Input Power: 5mW
Sensitivity: 122 ± 3dB
Frequency: FO~20kHz
Distortion: <5%
Read moreShow less
Product Details
PWR-MIC-2-K

Data sheet

Compatible con:
HYTERA
KENWOOD
