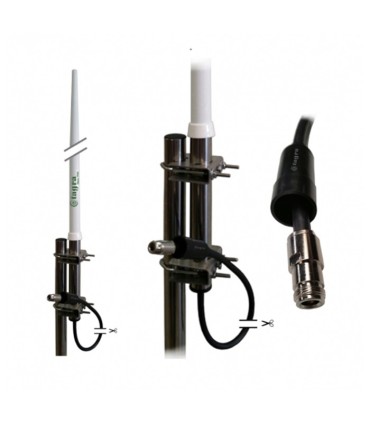

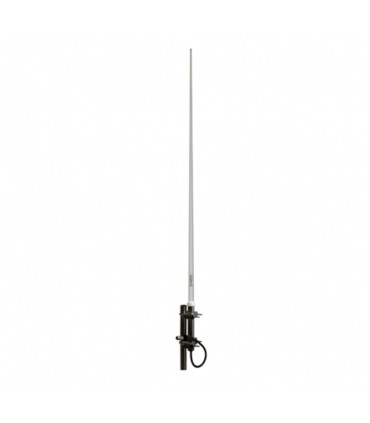

KAD-480
Base antenna 470-490 MHz. 150W, 5850mm "N" connector
| Type | Double dipole colinear |
| Power | 150W |
| Gain (dB) | 5.5 dBd / 7.65 dBd |
| Impedance | 50 ohm |
| Material | Fiber |
| R.O.E - S.W.R - T.O.S | 1,2:1 |
| Connector type | Female N connector |
| Polarization | Vertical |
| Wind load | 58.5N (150 Km/h) |
| Temperature | from -40º to 60º |
| Adjust type | Adjusted |
| Mastil diameter (mm.) | 30-45 |
| Cable type | RG-213 |
| Length | 2650 mm. |
| Width | 25 mm. |
| High | 25 mm. |
| Weight | 1620 gr. |
| Units per package | 1 |
| Package dimensions | 280 x 8 x 8 cm. |
