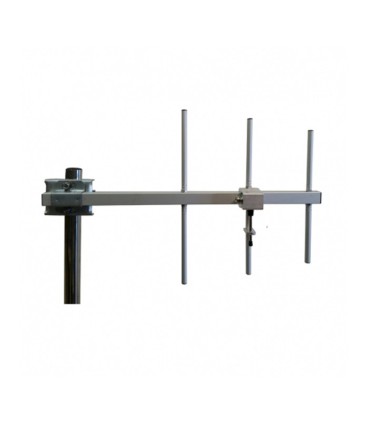

YG-3E-U-4
Direct Anten.3 elm.450-470mHz, 5dB Con.'N' 200mm
| Elements | 3 |
| Power | 300W |
| Gain (dB) | 5dB (7.15dBi) |
| Impedance | 50 ohm |
| Material | Aluminum |
| R.O.E - S.W.R - T.O.S | 1,5:1 |
| Connector type | Female N connector |
| Radiator lenght (mm.) | 500 |
| Polarization | Vertical & Horizontal |
| Adjust type | Gamma match |
| Mastil diameter (mm.) | 25-45 |
| Element lenght (mm.) | 200 |
| Length | 500 mm. |
| Width | 200 mm. |
| High | 20 mm. |
| Weight | 900 gr. |
| Units per package | 1 |
| Package dimensions | 60 x 20 x 10 cm. |
