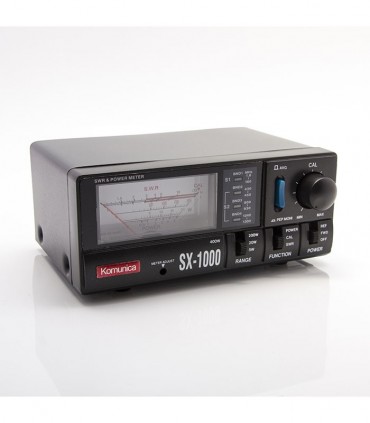

SWR & Watt meter, cross needles,140-525 MHz. 0.5-150 W.
-
Frequence Range: 1.8~160 MHZ, 430~1300 MHZ
-
Power Measure Range: 1.8~160MHz (5W/20W/200W/400W) 430~1.300 MHz (200W)
-
Minimun Power Input: 0.5 W
-
Precision: 5W Range ±5%, 20W Range ±7.5%, 200W Range ±10%, 400W Range ±12.5%
-
Input Impedance: 50 ohm
-
Input Loss: 0.2db (1.8~160 MHZ), 0.3db (430-1300MHZ)
-

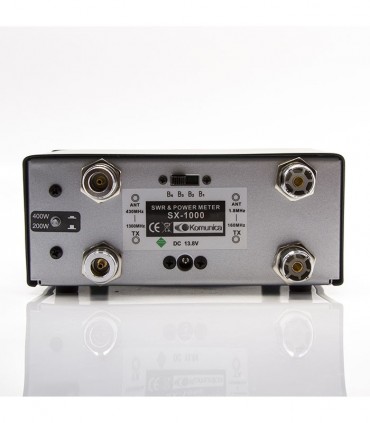

Connector:
- TX-PL (1,8 -160 MHz)
- TX-N (430 -1300 MHz)
-
Dimension: 15 X 6.5 X 10 cm
-
Weight: 730gr
-
SWR: 1~INFINITY
-
Input Power: DC12V
EAN:8435757708671
