SWR & Watt meter, cross needles,140-525 MHz. 0.5-150 W.

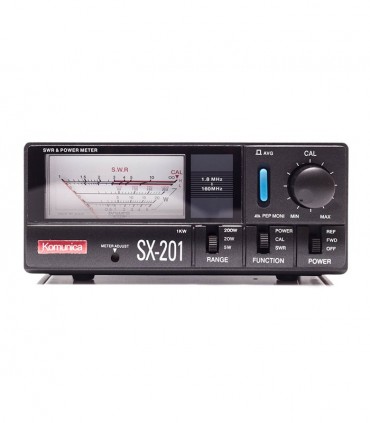

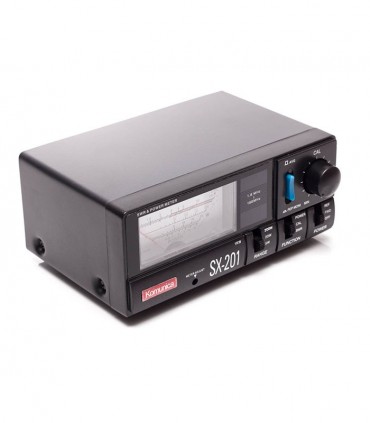

SX-201
SWR & Watt metter 1.8-200 MHz., 5/20/200W 1 KW (HF).
SWR & Watt metter 1.8-200 MHz. 5/20/200W 1 KW (HF).
Add to compare0
Add to wishlist
-
Frequence Range: 1.8~200 MHZ
-
Power Measure Range: 0.5~400W (5W/20W/200W/1KW) HF Band
-
Minimun Power Input: 0.5 W
-
Precision: 5W Range ±5%, 20W Range ±7.5%, 200W Range ±10%, 400W Range ±12.5%, 1KW Range ±15%
-
Input Impedance: 50 ohm
-
Input Loss: 0.2db
-

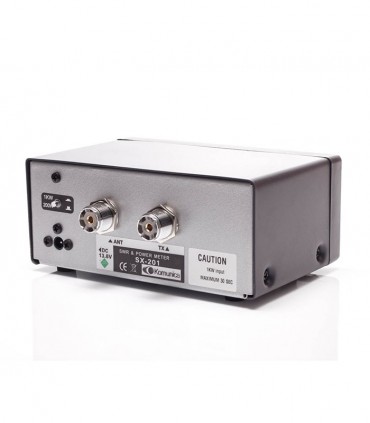

Connector: PL
-
Dimension: 8.5 X 8.7 X 9.5 cm
-
Weight: 630gr
-
SWR: 1~INFINITY
-
Input Power: DC12V
EAN:8435757708695
