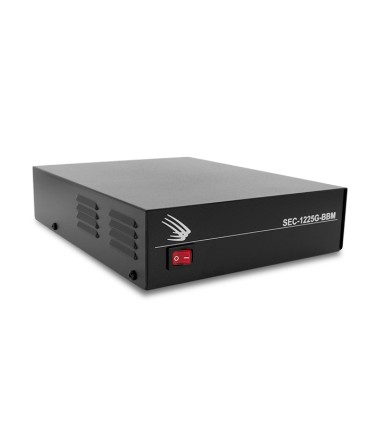

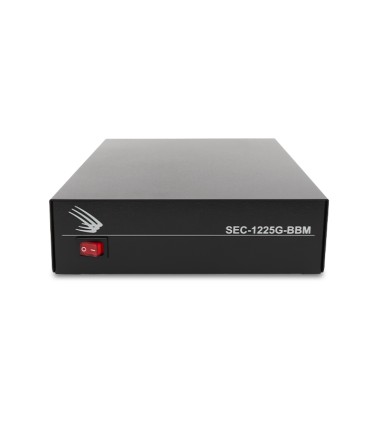

SAMLEX 25Amp 13.8V Switching Power Supply. Slim with Backup Module

SAMLEX 25Amp 13.8V Switching Power Supply. Slim with Backup Module

SEC-1225G-BBM

SAMLEX 25Amp 13.8V Switching Power Supply. Slim with Backup Module

SAMLEX 30 Amp Switching Power Supply with Backlit Meter

SAMLEX 25Amp 13.8V Switching Power Supply. Ultra-Slim with BACKUP Module

Input Voltage: 120-240 VAC, 50-60 Hz

Output Voltage: 13.8 VDC ± 1%

Output Ripple & Noise: 150 mV

Continuous Output Current: 25 Amp

Current Limiting: 27 Amp

Output Voltage at Battery Terminals (without battery): 13.8 VDC (± 1%)

Output Voltage at Battery Terminals (with battery): Actual battery voltage corresponding to state of charge; 13.5V ± 0.2V when the battery is fully charged and floating.

Continuous Output Current at Load Terminals: 21A (with battery charging); 25A (without battery charging)

Charge Current at Battery Terminals: Up to 4A (when the battery is completely discharged to a standing voltage of 11V)

External Backup Battery Type & Voltage: Lead Acid, 12V; Capacity: 40 Ah to 100 Ah

Efficiency: > 90%

Cooling: Temperature controlled fan

Protections: Over current, short circuit, over voltage, over temperature shut down (through PWM controller)

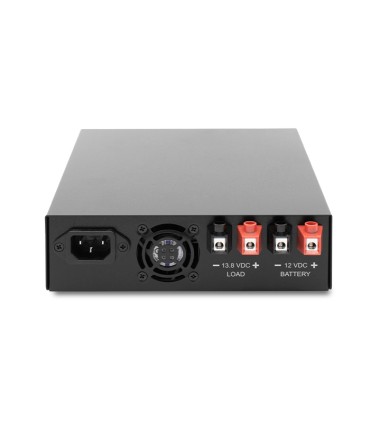

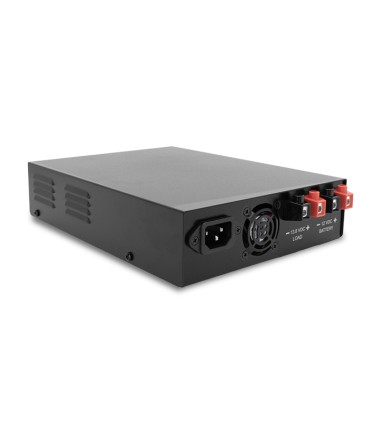

Connections:

AC Input
DC Output
Detachable power cord with European Schuko plug, terminals with tubular hole (5 mm) with set screw

Operating Temperature: 0-40ºC

Dimensions (L·W·H): 250.5·185·57.8 mm

Weight: 1.95 kg

Safety Standard: EN62368-1

EMC Standard:

EMI: CLASS B EN55032 EN61000-3-2,3
EMS: EN55035 EN61000-4-2,3,4,5,6,8,11

C-Tick: AS/NZS CISPR 32: 2015 A1:2020
