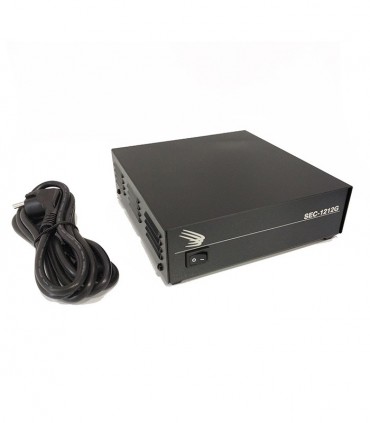

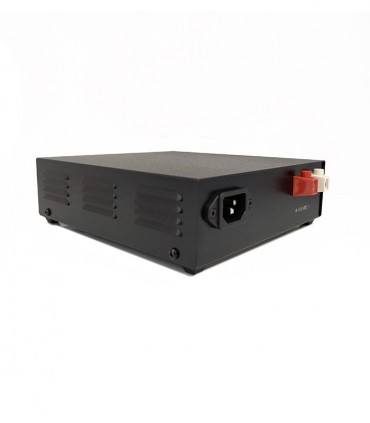

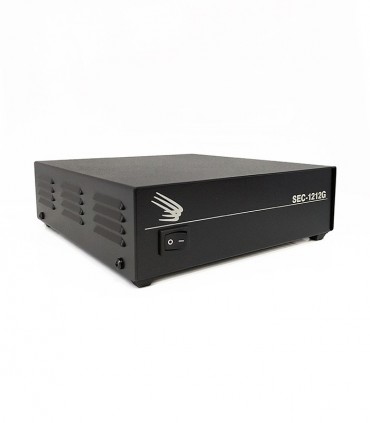

SEC-1212G
Switching power supply 12Amps 13.8V. SLIM
Advanced switch-mode technology & Reliable power with minimum weight and size
Add to compare0
Add to wishlist
-
Input Voltage: 115-230Vac, 50-60Hz
-
Output Voltage: 13,8 Vdc ± 1%
-
Output Ripple & Noise: <120 Mv Peak - Peak
-
Output Current Continous: 9,5 Amp
-
Current Limiting: 10 Amp
-
Cooling: Convection
-
Protections: Short circuit - Overload - Reverse polarity - Over Temperature
-
Connections:
- AC Input
- DC Output
- Detachable power cord with European schuko plug terminals with tubular hole (5mm) with set screw
-
Operating Temperature: 0-40ºC
-
Dimentions (L·W·H): 190·180·60 mm
-
Weight: 1’45 Kgs
-
Standards: EN 61000-6-3 EN 61000-6-2 EN 61000-3-2 EN 61000 -3-3 EN 60950
-
Energy Efficiency Certification: CEC / DOE / MEPS
-
Safety Standard: UL60950-1 EN60950-1 (ETL)
-
EMI Standard: EN55022 class-B EN61000-3-2,3
-
EMS Standard: EN61000-4-2,3,4,5,6,8,11
-
FCC: Part 15 subpart B class B
-
C-Tick: AN/NZS CISPR22 class B
