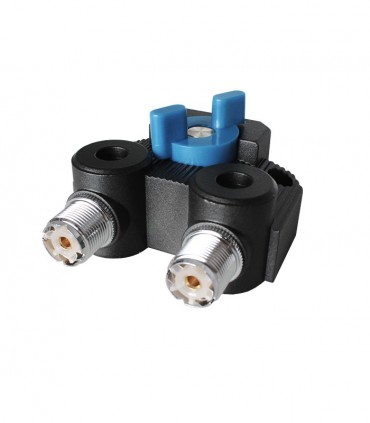

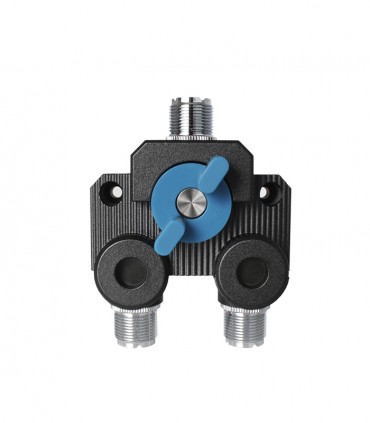

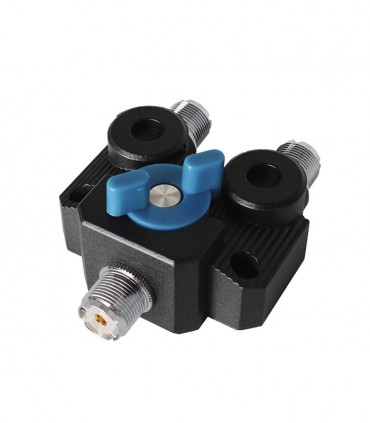

Frequency Range:
DC~1GHz
Power Range:
Dc~30MHz 2KW
30MHz~200MHz 1KW
200MHz~500MHz 500W
500MHz~1GHz 250W
Insertion Loss:
Dc~500MHz <=0.05dB
500MH~1GHz <=0.10dB
Output Port 1/2 Isolation:
Dc~500MHz >=70dB
500MH~1GHz >=60dB
VSWR:
Dc~500MHz <=1.15
500MH~1GHz <=1.25
Connector Type:
Input Port 1 PL-259 Female
Output Port 2 PL-259 Female
EAN:8435757707711
