Headset replacement for PWR-23 & PWR-24 series, "bud" type.
PWR-2302-NX-TUB

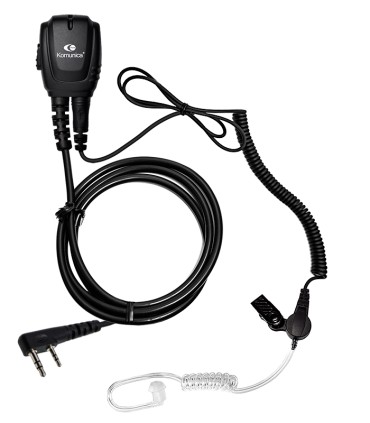

Micro-earphone with acust. tub earmuff K-Nexedge
Compatible with:
KENWOOD
NEXEDGE Series:
- NX-3320-E/E2/E3
- NX-3220-E/E2/E3
- NX-220/320 radio.
Retevis RT24, RT28, RT46 Proster
Baofeng BF-888S, UV-5R, BF-88E
Add to compare0
Add to wishlist
Professional micro-earphone with coil cord. High-impact housing for professional and public safety users.
Features
-
Water resistant level: IP54
-
Metal clip - 360º
-
Plug-in System

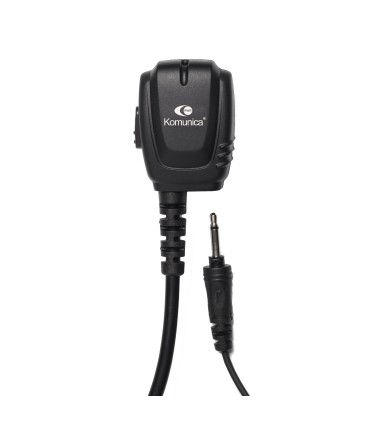

Microphone
-
Type of Element: Non-directional -Electric condenser
-
Sensitivity: -38dB (1V/ 1Pa)
-
Output Impedance: 2K ohm
-
Microphone size: 35,3·26·26 mm
Earphone
-
PWR-ET4 is supplied as standard
-
Diameter: 15 mm
-
Out Level: 92 dB/0.05 Watt. 0.01 Meter. (Artificial Ear IEC-318)
-
Input Power: 0.1W
-
Max Input Power: 0.2W
-
Output Impedance: 32 Ω
EAN:8435757704796
