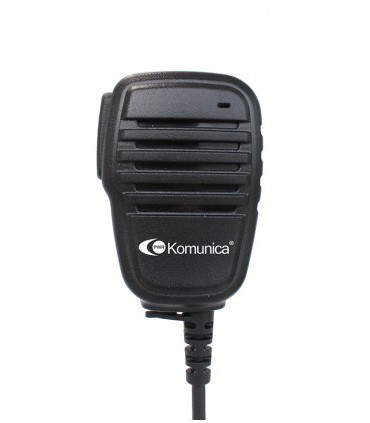

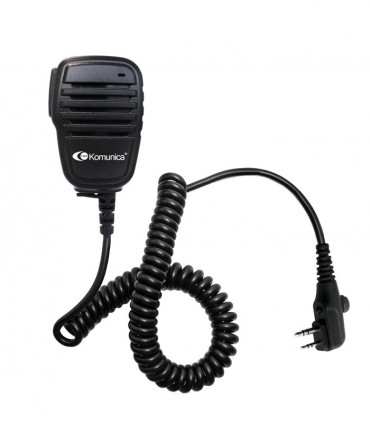

Micro-Earphone compact. compatibl.Hytera PD505/565/BD-615

Compatible with Hytera series:

BD-555, PD-405, PD-415, PD-505, PD-508, PD-565, TC-446S, TC-500, TC-508, TC-510, TC-518, TC-580, TC-600, TC-610, TC-618, TC-620, TC-626,  TC-700, TC-700EX, TC-1600, POWER446, TR-200, TR-400 TITAN.

BD-555,  BD500, BD505, BD505LF, BD612i, BD615, BD556. BD566, BD-615

Features

• High quality microphone and speaker provides an excellent communication

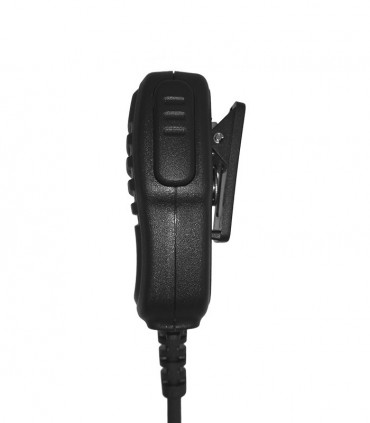

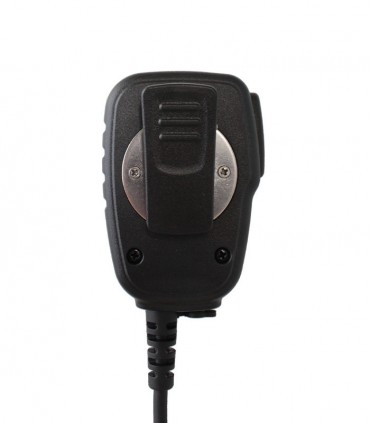

• "Revolving" metal clip

• 3.5mm audio socket

• Operating Temp: -20ºC±2ºC ~50ºC±2ºC

• Approx. Weight: 110g

• IP Rating: IPX4

Microphone

• Type: Condenser

• Dimension: ф6.0 x 5.00 mm

• Output Impedance: 2KΩ±10%        f=1KHz

• Sensitivity: -44dB±3                      0dB=1v/Pa, 1KHz

• Frequency Range: 50Hz~20KHz

• Directivity: Omni-direcional

• Operation Voltage: standard voltage 3V, max operation voltage 10V

• S/N Ratio: 58dB                            @f=1KHz, Pin=1Pa

Speaker

• Speaker Dimensions: ф36*7.3 mm

• Impedance: 4Ω±15%                    1.2KHz/1.0V

• Rated Input Power: 1W

• Max. Input Power: 1.5W

• Output S.P.L: 102dB±3(0.1M 1W)   Average at 1K, 1.2K, 1.5K, 2.0KHz

• Frequency Response : FO~6KHz     Average SPL-10dB

• Distortion: 5% Max                        1KHz/1W

EAN:8435757705809
