Excelent audio quality (amplified speaker)
Protection Grade: IP-55
Hytera series POC: PNC-360, PNC-380, NC-550 & BP-365
PWR-6500-PNC380

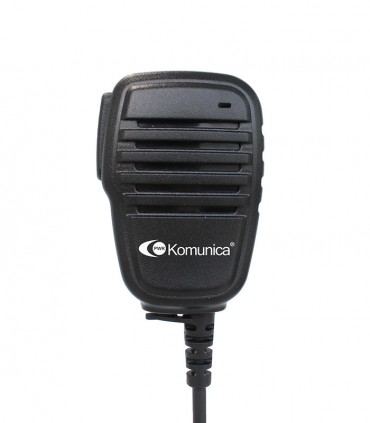

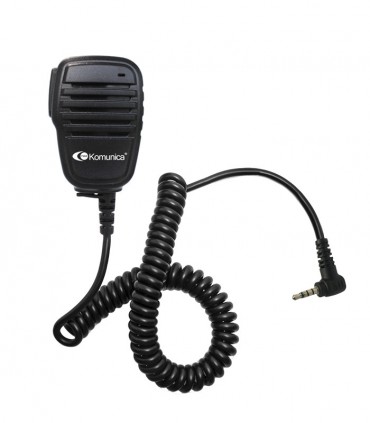

Komunica speaker-microphone, compact size, compatible Hytera PNC-380/550 & BP-365 series (POC)
Compatible with:
Hytera series POC: PNC-360, PNC-380, NC-550 & BP-365
-
Speaker-Microphone compact size
-

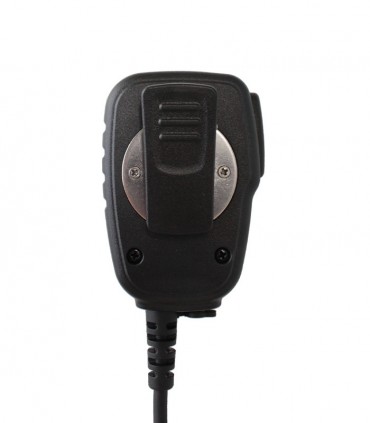

Revolving Metal Clip
-
Reinforced Cable
-
Connector 3.5mm for external earphone
-
Level IP: IPX4
Add to compare0
Add to wishlist
Features
-
High quality microphone and speaker provides an excellent communication
-
"Revolving" metal clip
-
3.5mm audio socket
-
Operating Temp: -20ºC±2ºC ~50ºC±2ºC
-
Approx. Weight: 110g
-
IP Rating: IPX4
Microphone
-
Type: Condenser
-
Dimension: ф6.0 x 5.00 mm
-
Output Impedance: 2KΩ±10% f=1KHz
-
Sensitivity: -44dB±3 0dB=1v/Pa, 1KHz
-
Frequency Range: 50Hz~20KHz
-
Directivity: Omni-direcional
-
Operation Voltage: standard voltage 3V, max operation voltage 10V
-
S/N Ratio: 58dB @f=1KHz, Pin=1Pa
Speaker
-
Speaker Dimensions: ф36*7.3 mm
-
Impedance: 4Ω±15% 1.2KHz/1.0V
-
Rated Input Power: 1W
-
Max. Input Power: 1.5W
-
Output S.P.L: 102dB±3(0.1M 1W) Average at 1K, 1.2K, 1.5K, 2.0KHz
-
Frequency Response : FO~6KHz Average SPL-10dB
-
Distortion: 5% Max 1KHz/1W
EAN:8435757705823
