PWR-6500-PD365

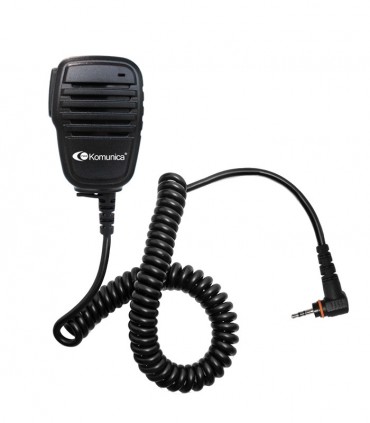

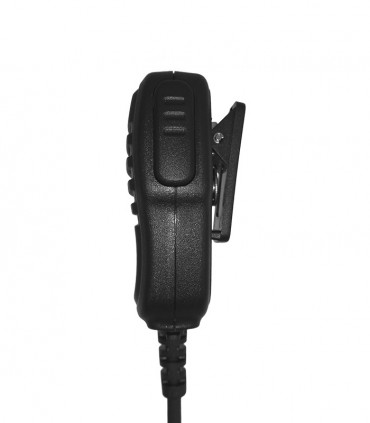

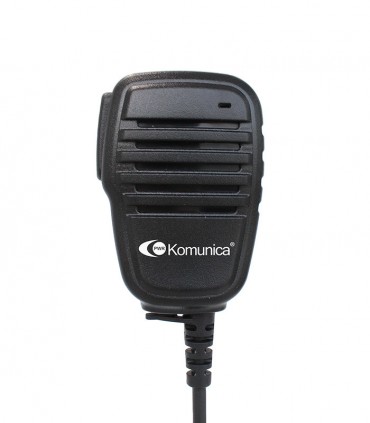

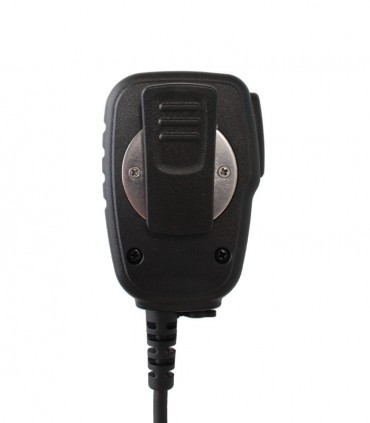

Komunica speaker-microphone, compact size, compatible Hytera PD365 / 355 and POC series PNC-370

Compatible with HYTERA:

PD-365, PD-355 y nueva serie POC (PNC-370)

BD-305/ BD-350

PD372, PD37X, TD350, TD360, TD370

  • Speaker-Microphone compact size

  • Revolving Metal Clip

  • Reinforced Cable

  • Connector 3.5mm for external earphone

  • Level IP: IPX4

Read moreShow less
Add to compare0
Add to wishlist
Specifications
Features
  • High quality microphone and speaker provides an excellent communication
  • "Revolving" metal clip
  • 3.5mm audio socket
  • Operating Temp: -20ºC±2ºC ~50ºC±2ºC
  • Approx. Weight: 110g
  • IP Rating: IPX4
Microphone
  • Type: Condenser
  • Dimension: ф6.0 x 5.00 mm
  • Output Impedance: 2KΩ±10%        f=1KHz
  • Sensitivity: -44dB±3                      0dB=1v/Pa, 1KHz
  • Frequency Range: 50Hz~20KHz
  • Directivity: Omni-direcional
  • Operation Voltage: standard voltage 3V, max operation voltage 10V
  • S/N Ratio: 58dB                            @f=1KHz, Pin=1Pa
Speaker
  • Speaker Dimensions: ф36*7.3 mm
  • Impedance: 4Ω±15%                    1.2KHz/1.0V
  • Rated Input Power: 1W
  • Max. Input Power: 1.5W
  • Output S.P.L: 102dB±3(0.1M 1W)   Average at 1K, 1.2K, 1.5K, 2.0KHz
  • Frequency Response : FO~6KHz     Average SPL-10dB
  • Distortion: 5% Max                        1KHz/1W

EAN:8435757705793

Read moreShow less
Product Details
PWR-6500-PD365

Data sheet

Compatible con:
HYTERA

Specific References

ean13
8435757705793
