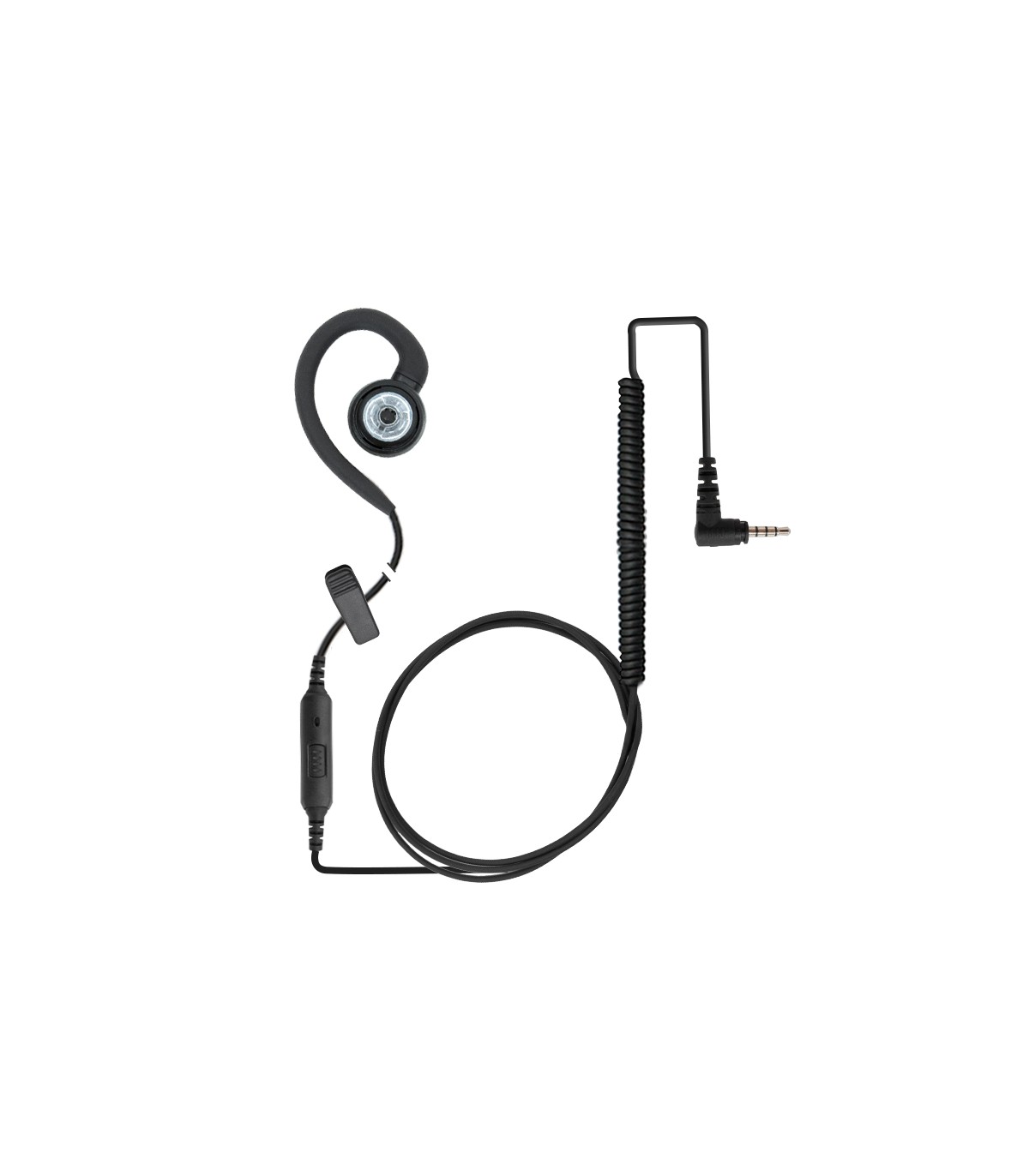

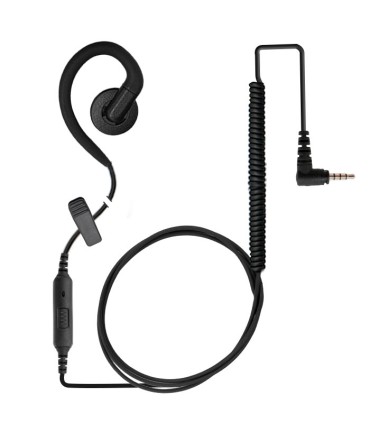

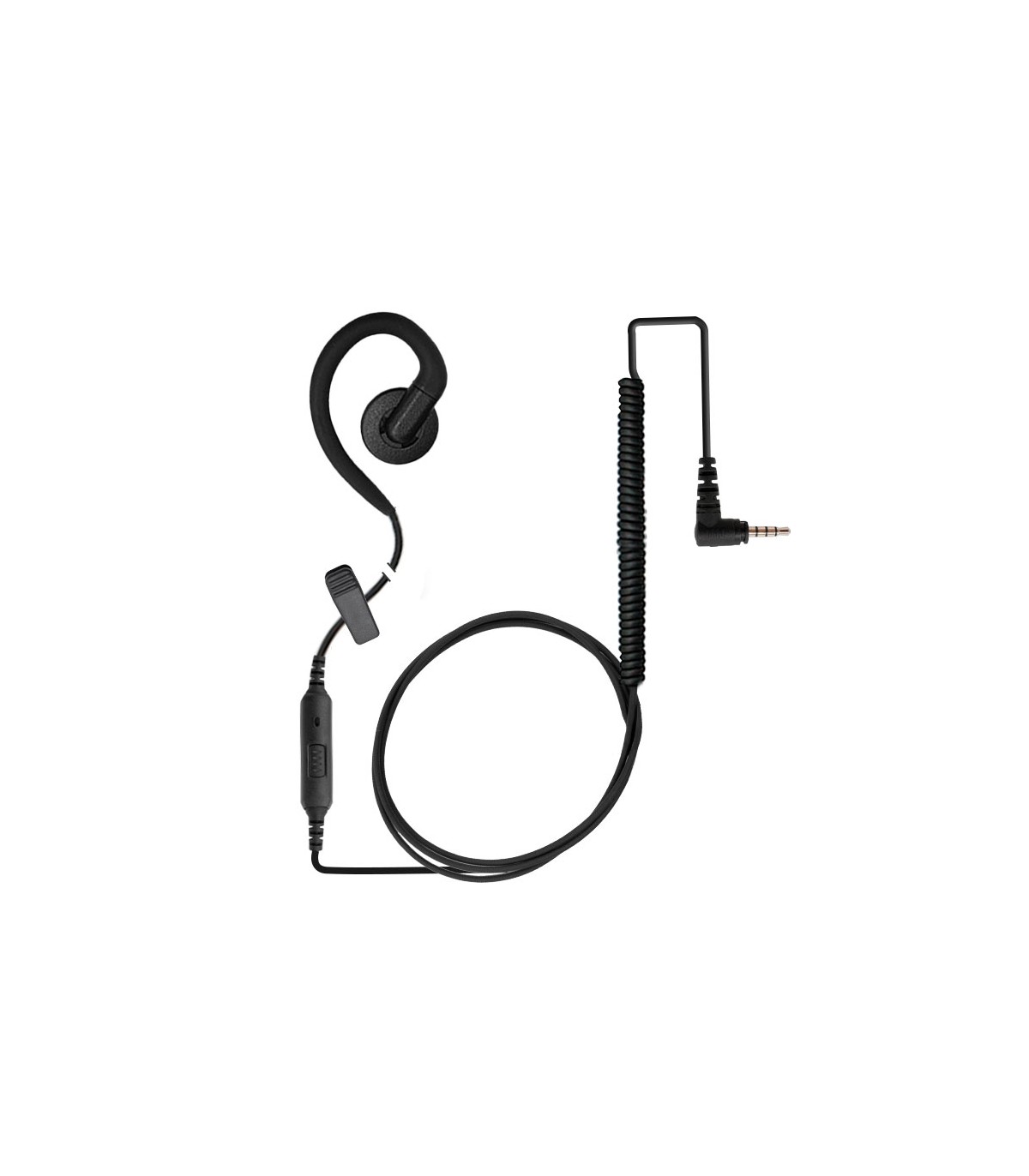

Komunica In-Line PTT Microearphone compatible with Hytera S1 / S1 Pro Series

Komunica In-Line PTT Microearphone compatible with Hytera S1 / S1 Pro Series

PWR-GES-S1-LINE-EH9

Komunica In-Line PTT Microearphone compatible with Hytera S1 / S1 Pro Series

Komunica In-Line PTT Microearphone compatible with Hytera S1 MINI Series

Micro-earphone Komunica, compatible Hytera PD-605/665/685/HP-605

In-line PTT Microearphone with L-shaped Connector.

Features:

IP: 54
In-line PTT
Operating Temperature: -20℃± 2℃ ~ 50℃± 2℃
Weight: Approx. 30g

Earpiece

Earpiece Dimensions: Φ 13.0 × 2.7 mm
Impedance: 32 Ω ± 15% @ 1kHz, 0.179V
Rated Input Power: 3mW
Max. Input Power: 5mW
Sensitivity: 122dB ± 3dB 179mV @ 1KHz, 1cm
Frequency Response: FO ~ 20KHz
Distortion: <5% @ 50Hz ~ 8KHz, 0.001W

Microphone

Type and Dimensions: Condenser Type, Dimension = Φ 6 × 5.0 mm
Output Impedance: 2.2KΩ ± 10% @ 1KHz
Sensitivity: -40dB ± 2dB, 0dB = 1V/Pa, 1KHz
Frequency Range: 50Hz ~ 10KHz
Directivity: Omni-directional
Operating Voltage: Standard Voltage 2V, Max. Operating Voltage 10V
S/N Ratio: 58dB @ 1KHz, Pin=1 Pa, A-weighted

PWR-GES-S1-MLINE-EH9 - Komunica In-Line PTT Microearphone compatible with Hytera S1 MINI Series

In-line PTT Microearphone

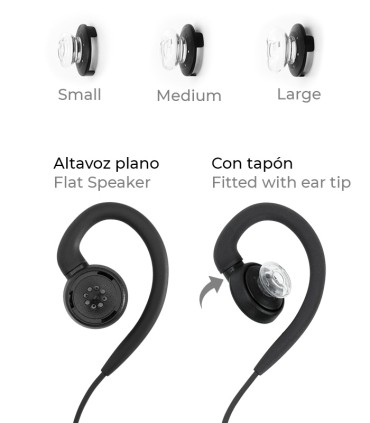

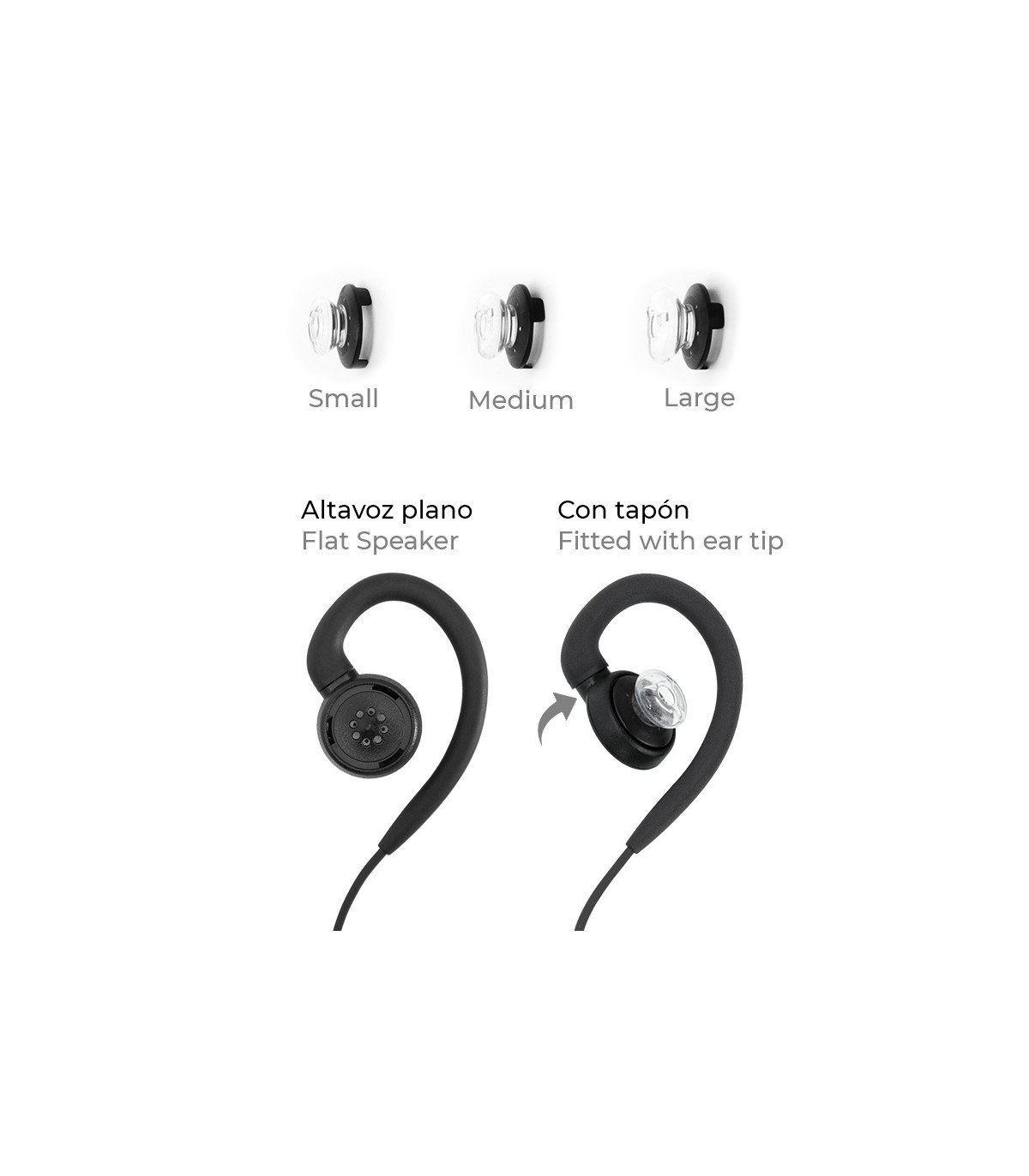

TIPS-EH9 - Set of 3 replacement plugs, for EH9 series headphones (S/M/L)

3 sizes x set Silicone material
