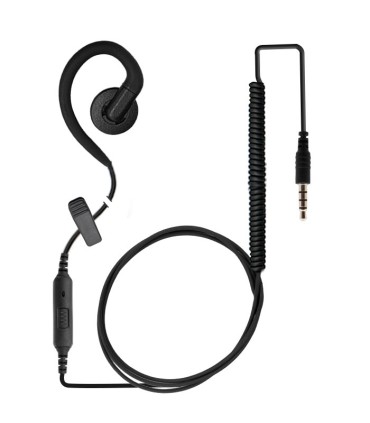

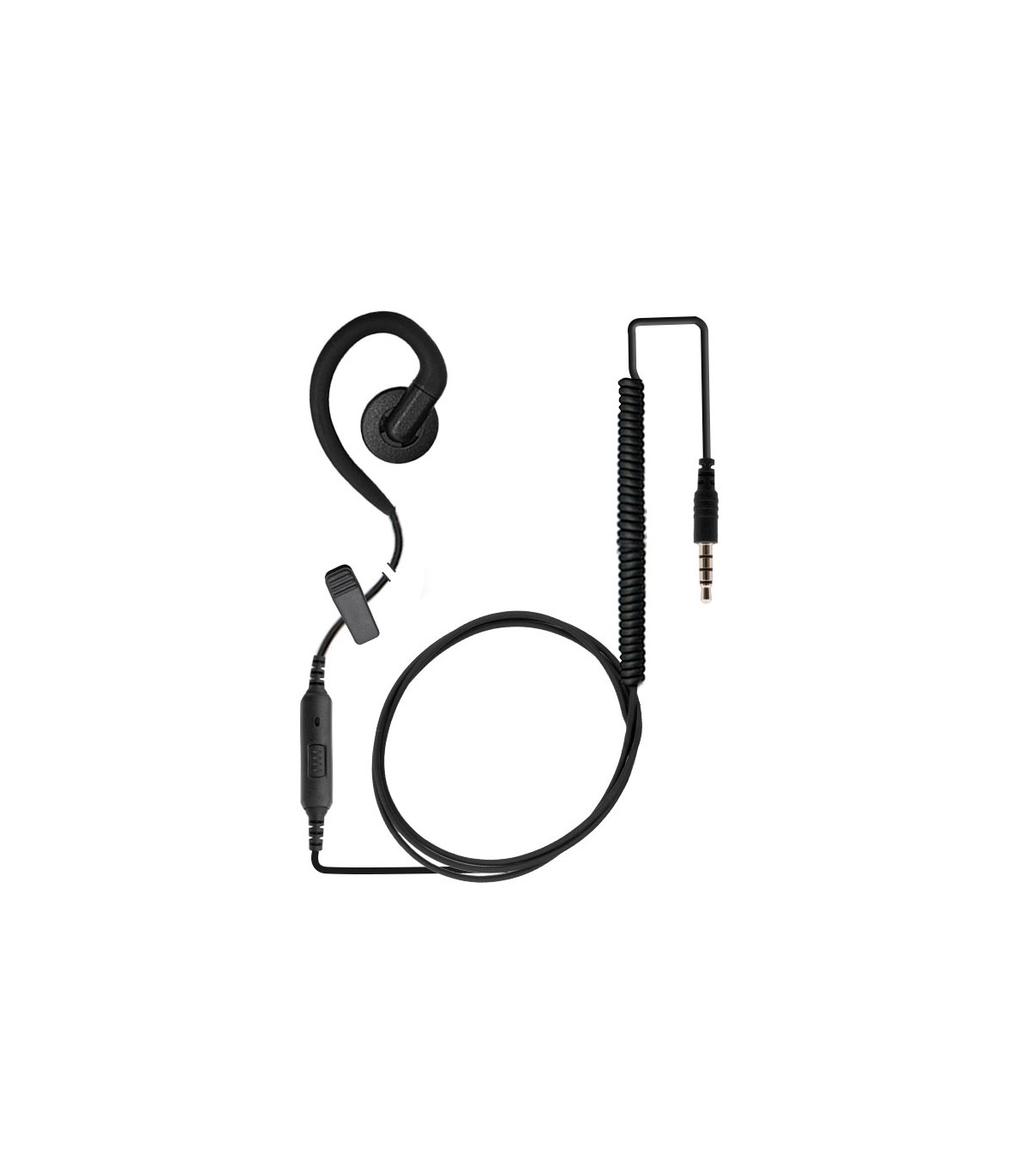

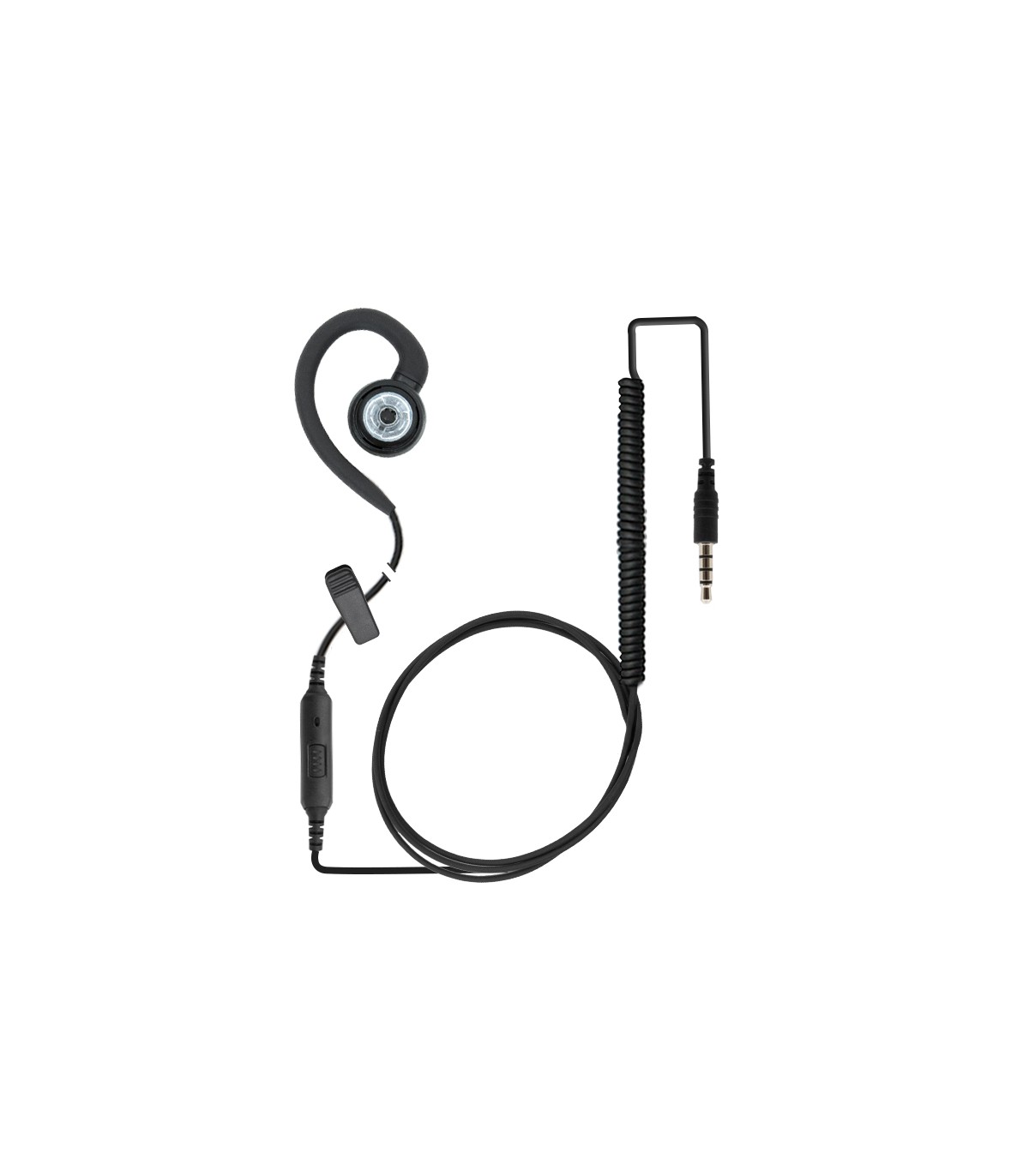

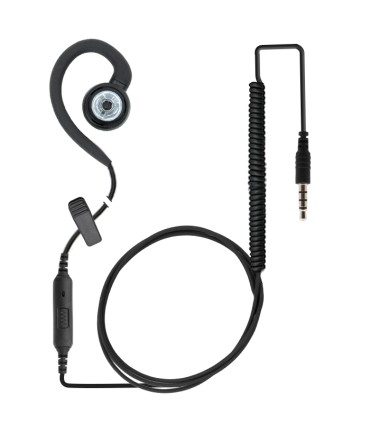

Komunica In-Line PTT Microearphone compatible with Hytera S1 MINI Series

Komunica In-Line PTT Microearphone compatible with Hytera S1 MINI Series

PWR-GES-S1-MLINE-EH9

Komunica In-Line PTT Microearphone compatible with Hytera S1 MINI Series

Micro-earphone Komunica compatible Airbus P2G with coiled cable and lapped PTT

In-line PTT Microearphone

Features:

IP: 54
In-line PTT
Operating Temperature: -20℃± 2℃ ~ 50℃± 2℃
Weight: Approx. 30g

Earpiece

Earpiece Dimensions: Φ 13.0 × 2.7 mm
Impedance: 32 Ω ± 15% @ 1kHz, 0.179V
Rated Input Power: 3mW
Max. Input Power: 5mW
Sensitivity: 122dB ± 3dB 179mV @ 1KHz, 1cm
Frequency Response: FO ~ 20KHz
Distortion: <5% @ 50Hz ~ 8KHz, 0.001W

Microphone

Type and Dimensions: Condenser Type, Dimension = Φ 6 × 5.0 mm
Output Impedance: 2.2KΩ ± 10% @ 1KHz
Sensitivity: -40dB ± 2dB, 0dB = 1V/Pa, 1KHz
Frequency Range: 50Hz ~ 10KHz
Directivity: Omni-directional
Operating Voltage: Standard Voltage 2V, Max. Operating Voltage 10V
S/N Ratio: 58dB @ 1KHz, Pin=1 Pa, A-weighted

PWR-GES-S1-MLINE-EH9 - Komunica In-Line PTT Microearphone compatible with Hytera S1 MINI Series

In-line PTT Microearphone

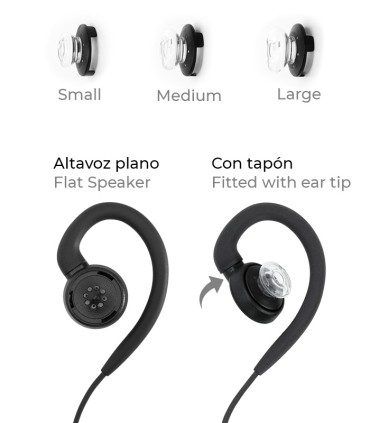

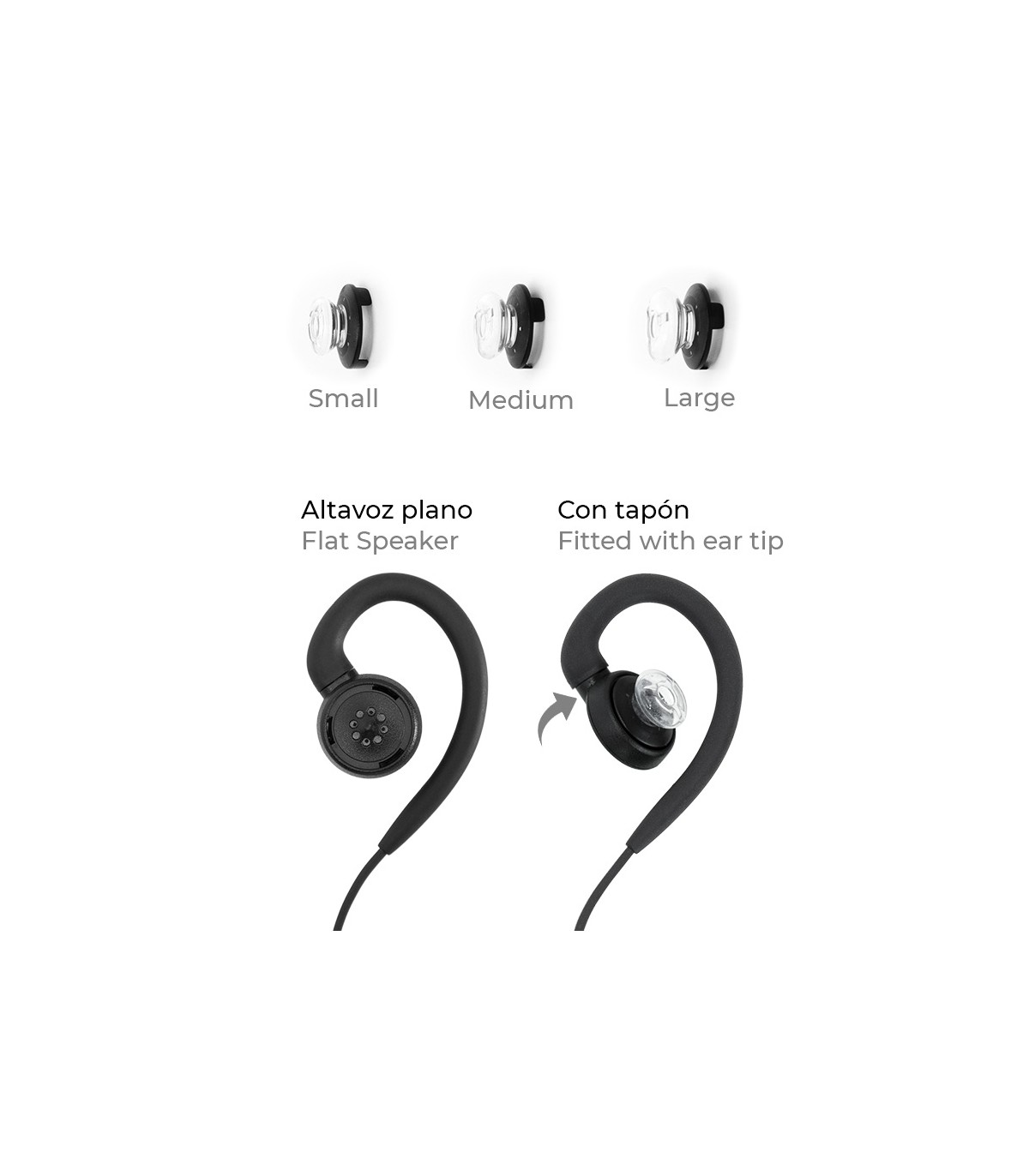

TIPS-EH9 - Set of 3 replacement plugs, for EH9 series headphones (S/M/L)

3 sizes x set Silicone material

16 other products in the same category:

Microauricular Komunica compatible Hytera PNC-380 & PNC-550

PWR-GES-BP565-EH9 - Micro-earphone Komunica compatible Hytera series: BP565/515 with coiled cable and lappeL PTT.

Ergonomic PTT microphone with Reinforced & coiled cable. Compatible with Hytera series: BP565/515 AP515, AP515 LF, AP525 LF, AP585, BP515, BP515 LF, BP565 PoC P50, P50Pro, P60 version

Micro-Earphone Komunica compatible Airbus TPH900 with acoustic-tube, coil cord and lapel PTT

PWR-GES-TUB-TPH900 - Micro-Earphone Komunica compatible Airbus TPH900 with acoustic-tube, coil cord and lapel PTT

Discreet version, with acoustic tube, reinforced cables and flap PTT.

Komunica micro-earphone with acoustic tube and protection level IPX7, compatible with Icom ICF52/62

PWR-GES-IP-TUB-ICF62 - Komunica micro-earphone with acoustic tube and protection level IPX7, compatible with Icom ICF52/62

Acoustic tube with water proof level IPX7 (1 m during 30 minutes) and multipin connector (14 Pin) compatible series Icom: IC-F-52D/62D IC-F-3261D/3262D/3263D/IC-F3360D/4261D/4262D/IC-F4360D/4363D IC-SAT-100 IC-F-3400D/3400DS/3400DT/4400D/4400DS/4400DT IC-F-7010S / 7020S / 7020T / 7040T /IP730D/IP740/ 9011 / 9021 IC-M85 / M85E

Micro-auricular Komunica con nivel protección IPX7, compatible con Icom ICF52/62

Micro-earphone Komunica with protection level IPX7, compatible with Icom ICF52/62

PWR-GES-IP-ICF62 - Micro-earphone Komunica with protection level IPX7, compatible with Icom ICF52/62

Komunica professional micro-earphone IPX7 (1m during 30 minutes) with multi-pin (14 Pin) connector, compatible to Icom: IC-F-52D/62D IC-F-3261D/3262D/3263D/IC-F3360D/4261D/4262D/IC-F4360D/4363D IC-SAT-100 IC-F-3400D/3400DS/3400DT/4400D/4400DS/4400DT IC-F-7010S / 7020S / 7020T / 7040T /IP730D/IP740/ 9011 / 9021 IC-M85 / M85E

PWR-GES-R7-EH9 - Microearphone Komunica compatible with Motorola MXP-600 & R-7 series

Ergonomic lapel PTT microphone with lightweight ear-hanger, with modern design & soft/flex materials. For a comfortable fitting, includes 3 sizes internal eartips that can be adapted or not. Coiled cable. Compatible with MOTOROLA: R-7 MXP-600, MXP-660 Komunica PWR ® has been fully approuved by Motorola ® to produce audio accessories 100% compatible with their series MXP600 & R7. Important: Make sure that the firmware of the Motorola terminals has been updated to version 2022.02 or later.

PWR-GES-M-EH9 - Micro-earphone Komunica version with a swivel earpiece compatible with Motorola 2-pin

Ergonomic PTT microphone with Reinforced & coiled cable. Special flat surface-type earpiece: EH9. Compatible with: MOTOROLA CLR446, GP300, DP1000, DP1400, SP50, P110, P-1225/P1225LS, LTS2000, CP88, CP150, CP200, CT150, CT250, CT450, CT450LS, GP308, P080, P2000, PRO2150, PRO3150, CP040, CP080, GP68, GP88, PR400... etc. radio,HLN9716, HLN9482A... etc. XT420/460XT/ XTN446 ALAN/MIDLAND series G-15/G-1 HYTERA series TC-500/600/2100/1600 YAESU: FT-4XE / FT-25E ABELL: A580T ABELL: A580T E-TECH: 74NEP60 ZODIAC: D-80

Micro-earphone Komunica compatible Sepura STP-8000/9000/SC-2020 with coiled cable and lapped PTT

PWR-GES-STP-9000 - Micro-earphone Komunica with coiled cable and lapped PTT x Sepura SLC3, SC20, STP9000/8000, etc

Ergonomic PTT microphone with Reinforced & coiled cable. Compatible with SEPURA: SCL3 Serie SC20/SC21/ SC23 STP 9000, STP 9100, STP 9200, etc. STP-8000, STP-8100, STP-8200, STP-8038, STP-9038, etc.

PWR-GES-CLPe-EH9 - Micro-earphone Komunica compatible Motorola, serie CLPe. Coiled cable, lappeL PTT. Earphone EH9 shape.

New version of connector for series CLP-e Motorola Ergonomic PTT microphone with Reinforced & coiled cable. Earhanger: EH9

PWR-GES-PNC380-EH6 - Micro-earphone Komunica compatible Hytera POC series: PNC-380/550, BP-365 with coiled cable and lappeL PTT. Earphone EH6 shape.

Ergonomic PTT microphone with Reinforced & coiled cable. Earhanger: EH6 surface shape. Hytera series POC: PNC-360, PNC-380, NC-550 & BP-365

PWR-GES-P2G - Micro-earphone Komunica compatible Airbus P2G with coiled cable and lapped PTT

Ergonomic PTT microphone with Reinforced & coiled cable. Compatible Matra G-2 y Airbus P2G

PWR-GES-S1-LINE-EH9 - Komunica In-Line PTT Microearphone compatible with Hytera S1 / S1 Pro Series

In-line PTT Microearphone with L-shaped Connector.

Micro-earphone Komunica compatible Airbus TPH900 with coiled cable and lapped PTT.

PWR-GES-TPH900 - Micro-earphone Komunica compatible Airbus TPH900 with coiled cable and lapel PTT.

Ergonomic PTT microphone with Reinforced & coiled cable

PWR-GES-TUB-BP565 - Micro-Earphone Komunica compatible Hytera BP565/515 with acoustic-tube, coil cord and lapel PTT

Discreet version, with acoustic tube, reinforced cables and flap PTT. Compatible with: Hytera series: BP565/515 AP515, AP515 LF, AP525 LF, AP585, BP515, BP515 LF, BP565, etc PoC P50, P50Pro, P60 versions

PWR-GES-ZT2 - Micro-earphone Komunica with coiled cable and lapel PTT compatible x Caltta PH600, DH500, E600,etc

Ergonomic PTT microphone with Reinforced & coiled cable Compatible with: PH600,DH500, DDH400, DH410, DH450/ DH452, DH405Ex, DH415Ex, DH455Ex, DH500, DH590, DH596, DH610, DH612, DH630, DH680, DH682, DH636 PH660Ex, PH690Ex, PH600, PH660, PH690, PH600Ex E600

Komunica Micro-Earphone compatible Motorola CLP-446

Komunica Micro-Earphone with lapel PTT and compatible Motorola CLP-446

PWR-GES-CLP446 - Komunica Micro-Earphone with lapel PTT and compatible Motorola CLP-446

Compatible Motorola PMR CLP-446, CLP1010,CLP1040,CLP1060

Microauricular Komunica compatible Hytera PD605/665/685

PWR-GES-PD605 - Micro-earphone Komunica, compatible Hytera PD-605/665/685/HP-605

Compatible with Hytera radios: PD-600, PD-602, PD-605, PD-606, PD-665, PD-666, PD-685, PD-686, TC700-P / TC-780, Digital X1p, X1e, Z1p. PDC550, PDC680, PDM680, PTC680, PT-590 HP505, HP565, HP605, HP685, HP705, HP785, HP9xx HP-605, etc Multi Pin connector (13 contact points)
