SWI-700-24

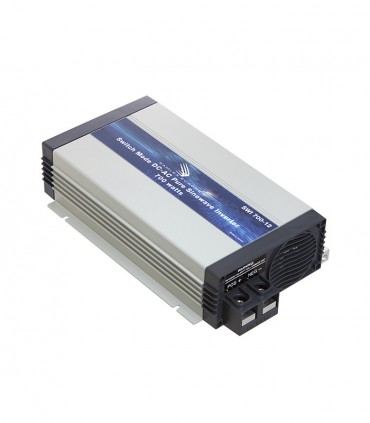

Samlex Pure Sinewave Inverter 700W - 24V

Samlex Pure Sinewave Inverter 700W - 12V
Samlex Pure Sinewave Inverter 1100W - 12V

This highly efficient DC-AC inverter converts 24 Volts DC to 700 Watts of pure sine wave AC power at 230 Volts, 50 or 60 Hz.

The unit is having heavy duty hex screw M6 connection.

Features include overload protection, low battery alarm / shut down, low idle power draw of less than 0.7 Amps.

Read moreShow less
Add to compare0
Add to wishlist
Specifications

Description
  • Input Voltage 21.4 – 33 VDC
  • Output Voltage 230 VAC +/-3%
  • Dimensions 269 x 174 x 70 mm
  • Output 700 Watts
  • Fuse Rating 30A x 2
  • Weight 2,2 kgs

Product benefits
  • Pure sine wave output voltage
  • High efficiency
  • Switch-mode design
  • 230 VAC output from 24 VDC input
  • 50/60Hz selectable
  • LED indicators for power and protections
  • Protections: input low voltage, input over voltage, over temperature, over load, short circuit
  • Low idle power draw
  • Remote input
  • 2 year warranty
Read moreShow less
Product Details
SWI-700-24
Attachments
Manual SWI ESP
Download (1.16MB)
Manual SWI ENG
Download (1.27MB)
