Mobile Magnetic Base Antenna TETRA 380–470 MHz, 5 m cable + BNC male connector

MA-380/470-MAG

Mobile Magnetic Base Antenna TETRA 380–470 MHz, 5 m cable + BNC male connector

Mobile antenna "INSIDE DE GLASS" for TETRA - UHF (380-430MHz) .

Professional mobile antenna for VHF or UHF. Frequency range: 130-520Hz (by cutting diagram).

Professional antenna with an 8.5 cm magnetic base and wide UHF frequency coverage

Technical Data (380 ÷ 470 MHz)

Antenna Type: 1/4 Mobile Antenna
Frequency: 380 ÷ 470 MHz
VSWR:
- Less than 1.5 @ 380/420 MHz
- 1.5 / 2.2 @ 420/470 MHz
Impedance: 50 Ω
Gain: 2.14 dBi
Max Power: 100 W
Cable Length: RG-58, 5 m
Connector: BNC male

MA-1101 - Professional mobile antenna for VHF or UHF. Frequency range: 130-520Hz (by cutting diagram).

Professional mobile antenna with 74º tilt angle. Installation version VHF 130 230 MHz UHF 385 520 MHz Adjustment by means of cutting diagram Includes extension of 5mt RG-58, coaxial cable

MA-2600 - Mobile antenna "INSIDE DE GLASS" for TETRA - UHF (380-430MHz) .

TETRA & UHF 380 ÷ 430MHz

MA-1201 - Mobile Antenna, flex, special for Tetra UHF 375÷480 MHz, with 5mts cable

Mobile Antenna Tetra UHF 375÷480 MHz Flexible

ANTENA MÓVIL UHF, 400-480MHZ, LONG. 50CM, PL.

PWR-MA-200-U - Mobile antenna UHF, 400-480MHz, lenght 50cm, PL.

Mobile antenna UHF 400-480 MHz

Cookie name	Provider	Purpose	Expiry
cookiesplus	https://komunicapower.com	Stores your cookie preferences.	1 year
PHP_SESSID	https://komunicapower.com	This cookie is native to PHP and enables websites to store serialised state data. It is used to establish a user session and to pass state data via a temporary cookie, which is commonly referred to as a session cookie.	Session
PrestaShop-#	https://komunicapower.com	This cookie helps keep user sessions open while they are visiting a website, and help them make orders and many more operations such as: cookie add date, selected language, used currency, last product category visited, last seen products, client identification, name, first name, encrypted password, email linked to the account, shopping cart identification.	480 hours

Cookie name	Provider	Purpose	Expiry
collect	Google	It is used to send data to Google Analytics about the visitor's device and its behavior. Track the visitor across devices and marketing channels.	Session
r/collect	Google	It is used to send data to Google Analytics about the visitor's device and its behavior. Track the visitor across devices and marketing channels.	Session
_ga	Google	Registers a unique ID that is used to generate statistical data on how the visitor uses the website.	2 years
_gat	Google	Used by Google Analytics to throttle request rate	1 day
_ga_#	Google	Used by Google Analytics to collect data on the number of times a user has visited the website as well as dates for the first and most recent visit.	2 years
_gd#	Google	This is a Google Analytics Session cookie used to generate statistical data on how you use the website which is removed when you quit your browser.	Session
_gid	Google	Registers a unique ID that is used to generate statistical data on how the visitor uses the website.	1 day

Cookie name	Provider	Purpose	Expiry
ads/ga-audiences	Google	These cookies are used by Google AdWords to re-engage visitors that are likely to convert to customers based on the visitor’s online behaviour across websites.	Session
fr	Facebook	Used by Facebook to deliver a series of advertisement products such as real time bidding from third party advertisers.	3 months
tr	Facebook	Used by Facebook to deliver a series of advertisement products such as real time bidding from third party advertisers.	Session
_fbp	Facebook	Used by Facebook to deliver a series of advertisement products such as real time bidding from third party advertisers.	3 months

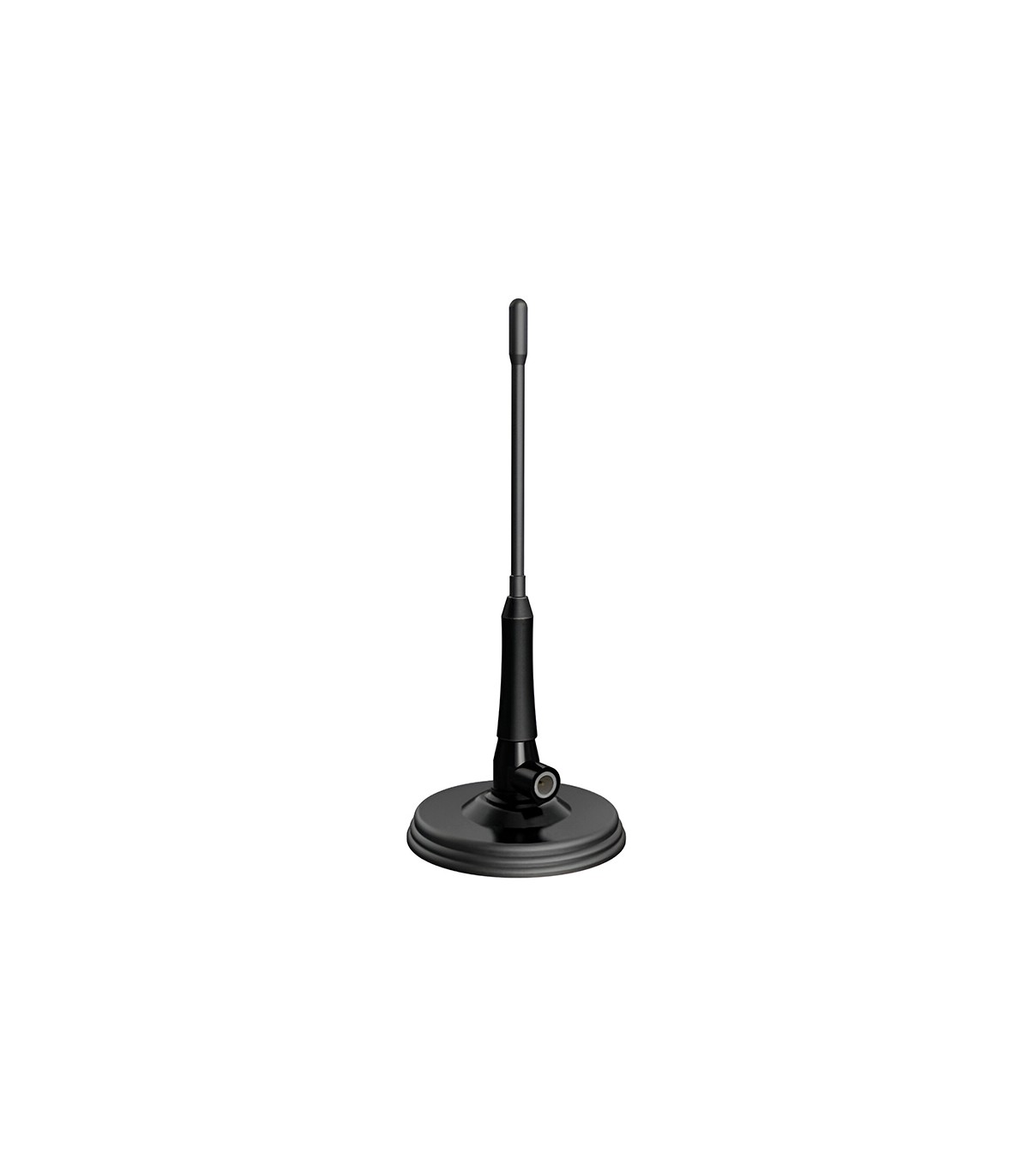

MA-380/470-MAG

Mobile Magnetic Base Antenna TETRA 380–470 MHz, 5 m cable + BNC male connector

Specifications

Material: POM, PE, steel and brass

Rod Material: Moplen + Rubber 50 Sh.

Base Dimensions: Ø 85 mm x 50 mm

Height: 130 ± 15 mm

Weight: 260 g

Colour: Black

Base Connector: FME male

Technical Data (380 ÷ 470 MHz)

Antenna Type: 1/4 Mobile Antenna

Frequency: 380 ÷ 470 MHz

VSWR:

Less than 1.5 @ 380/420 MHz

1.5 / 2.2 @ 420/470 MHz

Impedance: 50 Ω

Gain: 2.14 dBi

Max Power: 100 W

Cable Length: RG-58, 5 m

Connector: BNC male

MA-1101 - Professional mobile antenna for VHF or UHF. Frequency range: 130-520Hz (by cutting diagram).

MA-2600 - Mobile antenna "INSIDE DE GLASS" for TETRA - UHF (380-430MHz) .

MA-1201 - Mobile Antenna, flex, special for Tetra UHF 375÷480 MHz, with 5mts cable

PWR-MA-200-U - Mobile antenna UHF, 400-480MHz, lenght 50cm, PL.
