TETRA & UHF 380 ÷ 430MHz
MA-1201
Mobile Antenna, flex, special for Tetra UHF 375÷480 MHz, with 5mts cable
Technical data
Antenna Type: 1/4 1 Mobile Antenna
Impedance: 50 Ω
Frequency Range: 375÷480 MHz
Max. Power: 20W
V.S.W.R: Less than 1.9
Polarization: Vertical
Emission: Omnidirectional
Gain: 2.14 dBi
Rod lenght: 145±3 mm
Rod Section: 1
Rod elevation: 90º
Rod material: Polypropylene 30% glass
Specifications
Base Dimension: L: 27 · W: 33.5
Connector base: FME female
Cable extension: 5m x RG-58 (end cable without connector)
Material de la base: Hytrel
Color: Black - Negro
Peso: 55 g
Temperatura: -40ºC - +80ºC
EAN:8435757703515
Related Products
3 other products in the same category:
TETRA & UHF 380 ÷ 430MHz
Professional mobile antenna with 74º tilt angle.
Installation version
VHF 130 230 MHz
UHF 385 520 MHz
Adjustment by means of cutting diagram
Includes extension of 5mt coaxial cable
Customers who bought this product also bought:
BM-1-PL - Komunica professional base reinforced Maximum grip12cm diameterSO-239 connectorRG-58 cable (5mts)
Compatible con:
KENWOOD
TK-2200, 2201,2202, 2206, 2207, 2212, 2217, 2302, 2306, 2307, 2312, 3200, 3201, 3202, 3207, 3217, 3312, 3502, 3301, 3302, 3307, 3401D, TK-3701D, TK-D240, TK-D340, NX-1300DE3, etc.
.
Compatible with:
KENWOOD NEXEDGE Series:
- NX-1200/1300
- NX-3320-E/E2/E3
- NX-3220-E/E2/E3
- NX-220/320 radio.
Retevis RT24, RT28, RT46 Proster
Baofeng BF-888S, UV-5R, BF-88E
Antenna for walkie VHF 134-174 MHz, 50W, for YAESU, Connector SMA Male
Compatible: VX-110 / VX-130 / VX-131 / VX-160 / VX-180 / VX-210a / VX-230 / VX-231 / VX-350 / VX-354 / VX-410 / VX-420 / VX-821 / VX-921 VX-971, etc
Magnetic mobile antennaFrequency Range: 136-174MHz (VHF)Connector: BNC
12 Bands ultralight HF portable antenna with telescopic whip.
Band coverage: 6/10/12/15/17/20/30/40/80/160 m (coil) + VHF + Air Band
Ideal QRP, SOTA, etc.
Compatible con:
KENWOOD NEXEDGE Series:
- NX-1200/1300
- NX-3320-E/E2/E3
- NX-3220-E/E2/E3
- NX-220/320 radio.
Antenna for walkie VHF 146-162 MHz, 50W, for KENWOOD, Connector SMAF
Triband Antenna
TX: 50-144-430MHz
RX: 150/300/450/900MHz
Hands free kits for Kenwood
COMPATIBLE WITH : ALL RADIOS WITH RJ-45 CONNECTOR
Ideal for radios TM-271, TM-V71, TM-D710, etc
Compatible clip with Kenwood batteries TK and NX series
Acoustic Headset Replacement for PWR-23 & PWR-24 Series, Basic Version
Innovative Komunica antenna, VHF/UHF dual bandEasy and quick installation on mast and surface.Ideal as portable.
Frequecuency Range:
- VHF: 140-145 Mhz
- UHF: 420-500 Mhz

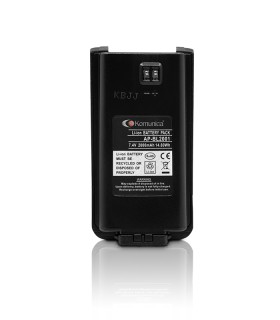

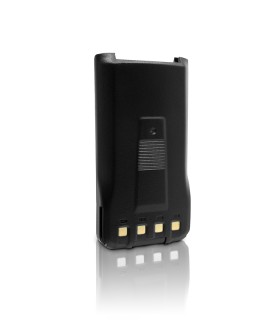

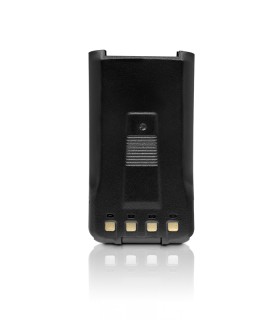

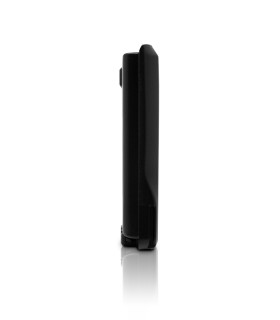

Compatible with Hytera, series: TC-610,TC-618,TC-620,TC-626,TC-610P, Power-446
