WILLIAM II

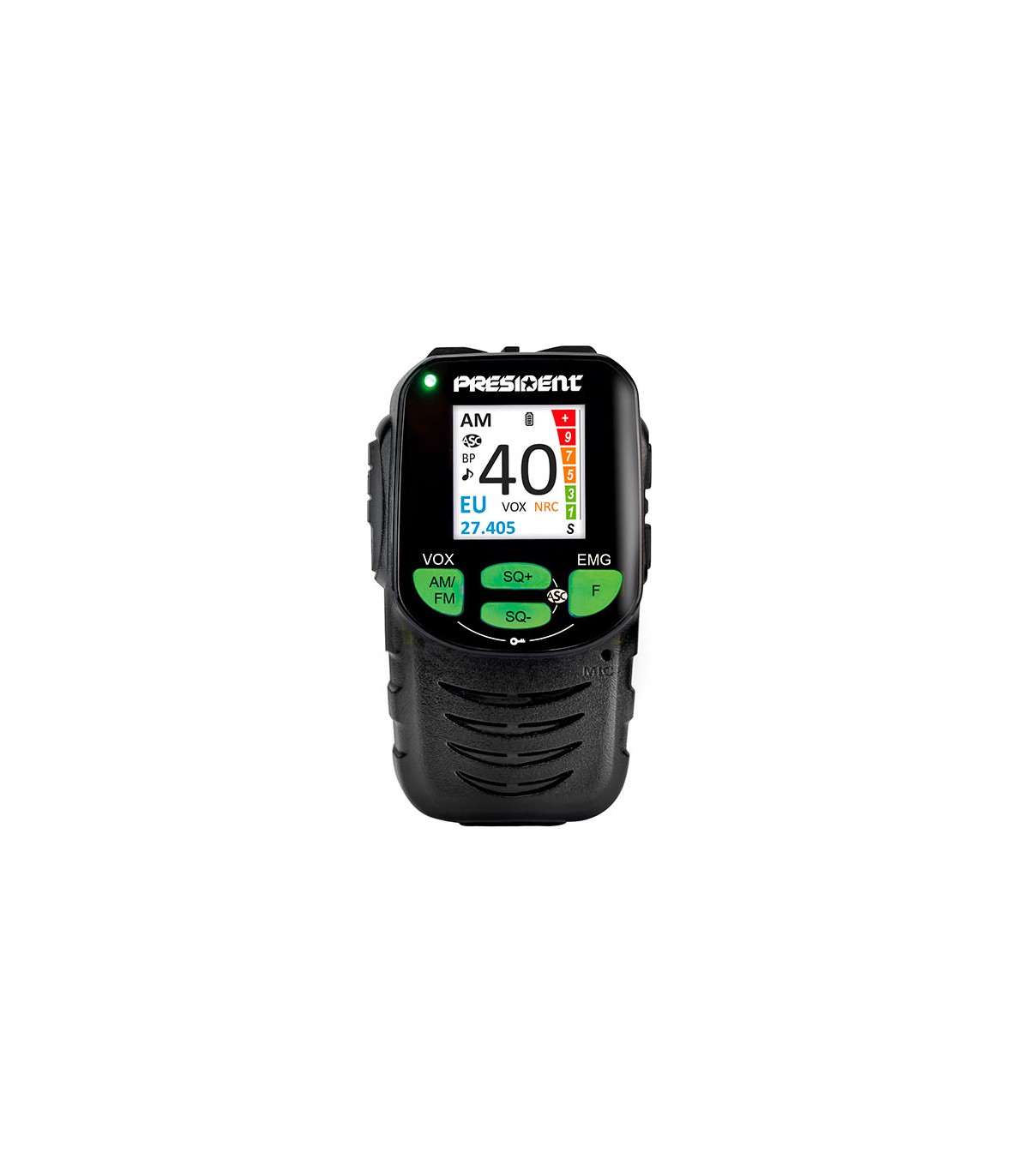

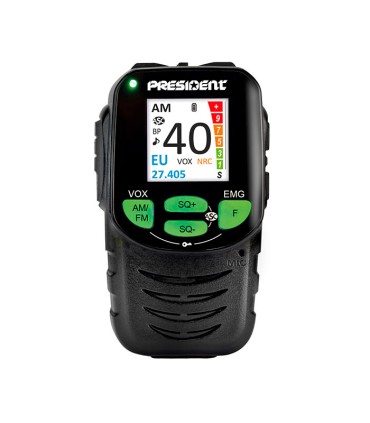

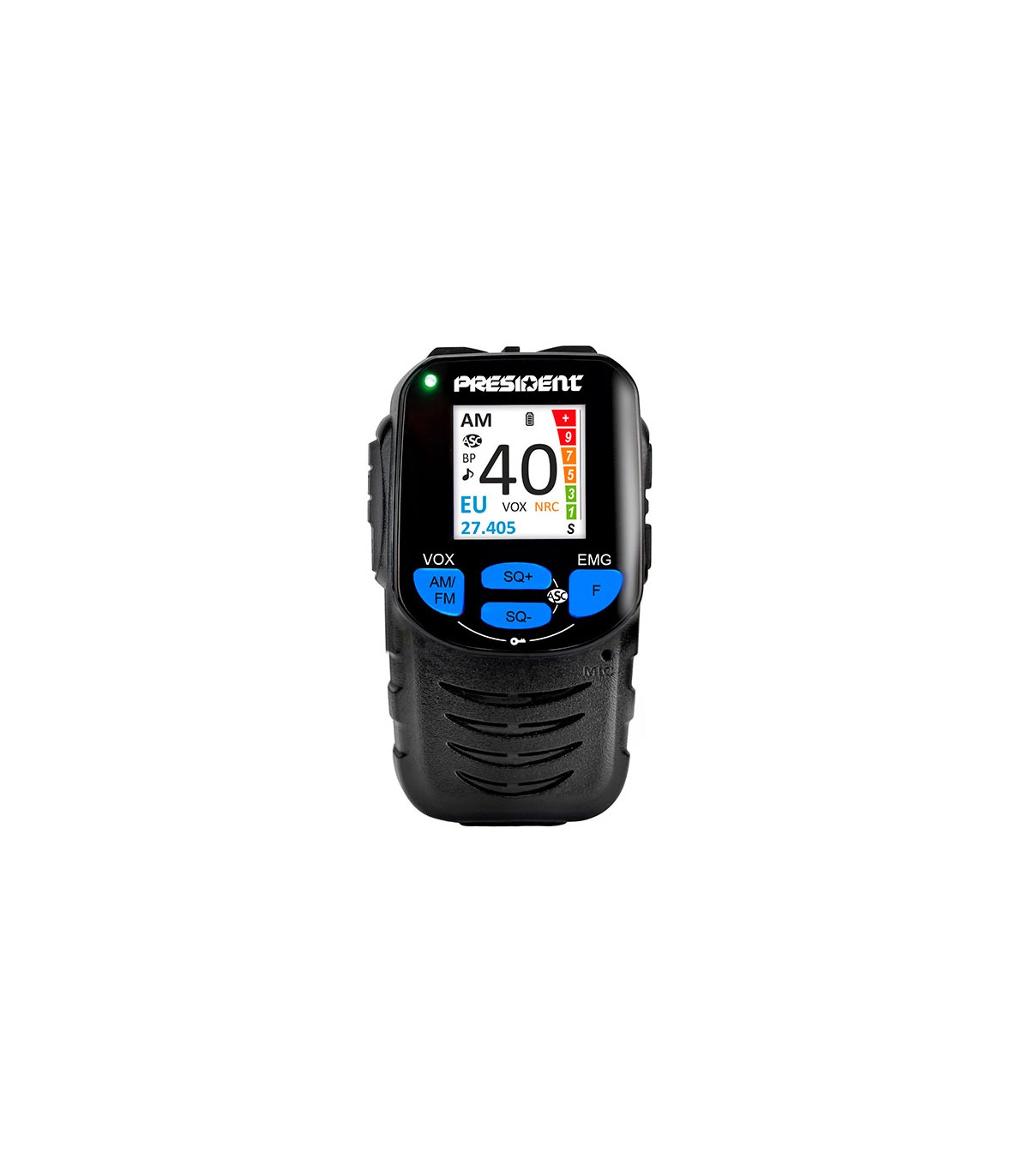

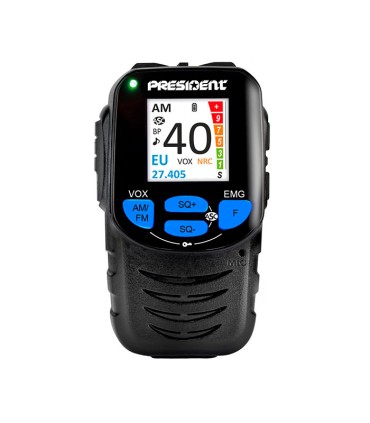

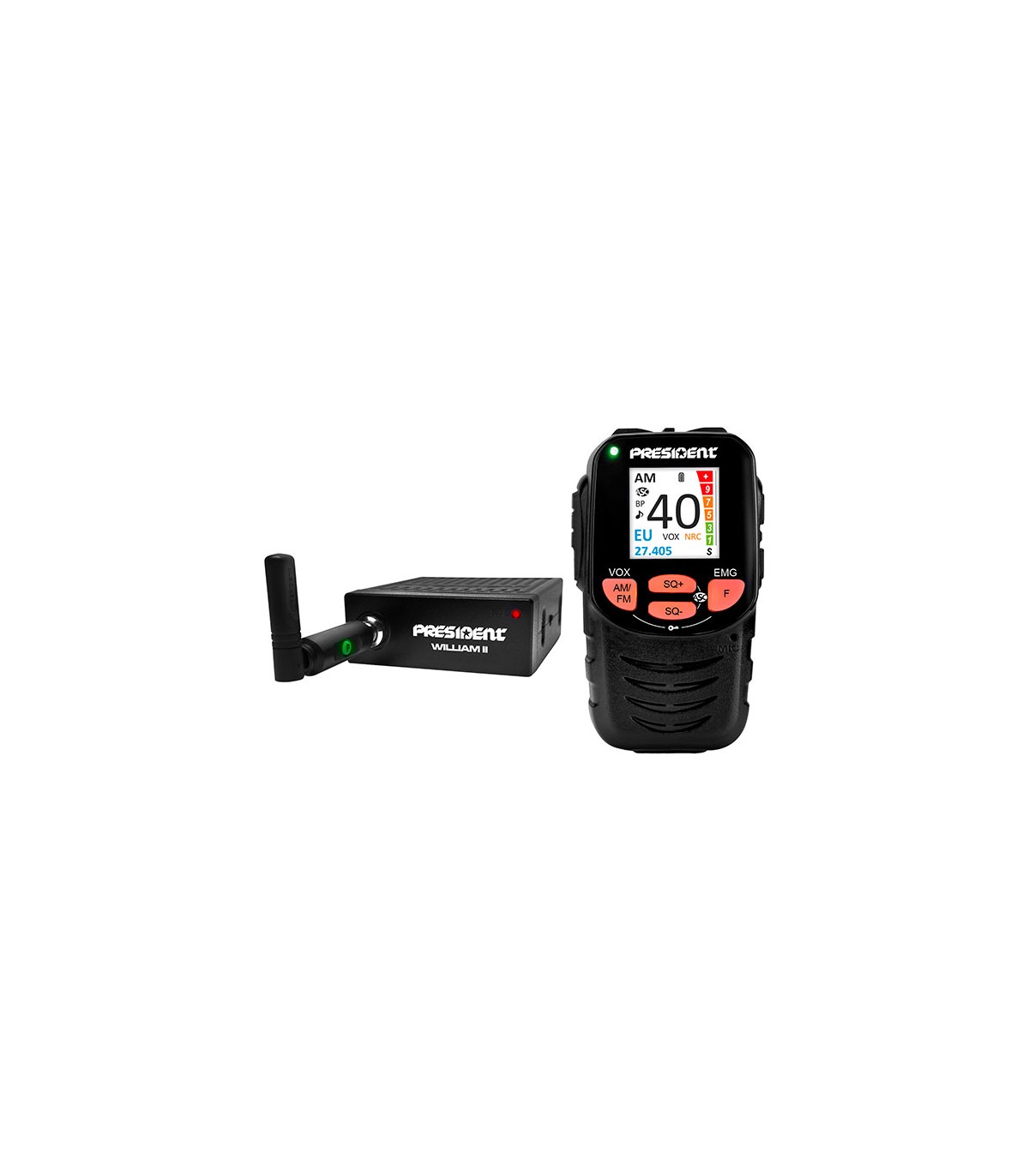

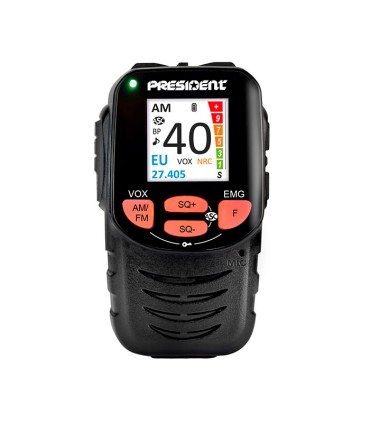

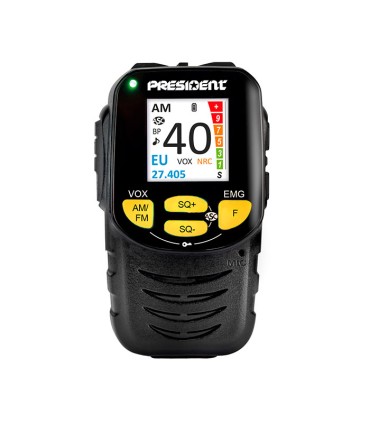

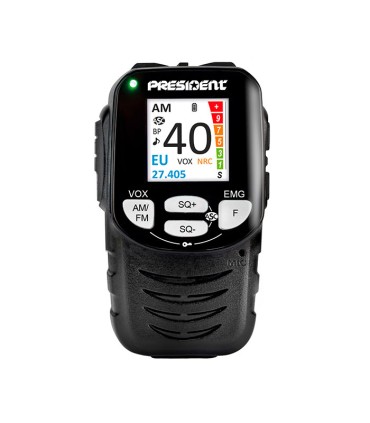

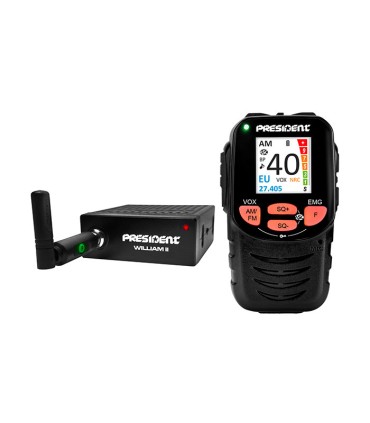

PRESIDENT WILLIAM II AM/FM, 12/24V, Wireless Microphone
-
Size (mm): 115 (L) x 140 (W) x 45 (H) (black box) / 58 (L) x 40 (W) x 100 (H) (microphone)
-
VOX Built-in
-
Power supply: 12 V / 24 V
-
AM/FM
-
Channel scanning
-
Scan skip
-
ANL/NRC filter
Wireless Microphone
Add to compare0
Add to wishlist
Display:
Wireless Microphone
-
7-color display
-
Backlight (keypad backlight)
-
NRC/ANL
-
2 programmable emergency channels (EMG)
-
Scan / Scan skip
-
Lock
-
Vox (hands-free function)
-
Key beep / Roger beep
-
Speaker selection
-
Eco mode
Supplied Accessories:
-
1 UP/DOWN microphone
-
1 support
-
1 mounting cradle
-
Screws and fused power cord
-
1 dongle
-
1 charging cable
General
-
Channels: 40
-
Modulation modes: AM/FM
-
Frequency range: 26.965 MHz to 27.405 MHz
-
Antenna impedance: 50 ohms
-
Power supply: 13.2 V / 26.4 V
-
Dimensions (mm): 58 (L) x 40 (W) x 100 (H) (mic)
-
Weight: ~600 g (Blackbox) / ~130 g (mic)
-
Additional accessories: support, mounting cradle, screws, fused power cord, dongle, charging cable
Transmission
-
Frequency tolerance: ± 200 Hz
-
Carrier power: 4 W
-
Transmission interference: < 4 nW (-54 dBm)
-
Audio response: 300 Hz to 3 kHz
-
Emitted power in adjacent channel: < 20 μW
-
Microphone sensitivity: 7 mV
-
Current drain: ≤ 2.3 A (13.2 V) / ≤ 1.3 A (26.4 V)
-
Modulated signal distortion: 2%
Reception
-
Max sensitivity at 20 dB SINAD: 0.5 μV – 113 dBm AM / 0.35 μV – 116 dBm FM
-
Frequency response: 300 Hz to 3 kHz
-
Adjacent channel selectivity: 60 dB
-
Max audio output: 2.5 W
-
Squelch sensitivity: min. 0.2 μV – 120 dBm / max. 1 mV – 47 dBm
-
Image frequency rejection ratio: 60 dB
-
Intermediate frequency rejection ratio: 70 dB
-
Current consumption: 210 ~ 620 mA (13.2 V) / 110 ~ 310 mA (24.6 V)
