Komunica MINI-TRIPOD with photographic thread pitch.
Combine it with our RB-3WI support (not inclouded) and get an easily portable mini tripod that will allow you to connect your HF antenna and make the best contacts.
Specifications
Material: Aluminum
Weight: 68g
Size: 15cm
HF-PRO-2-PLUS-T

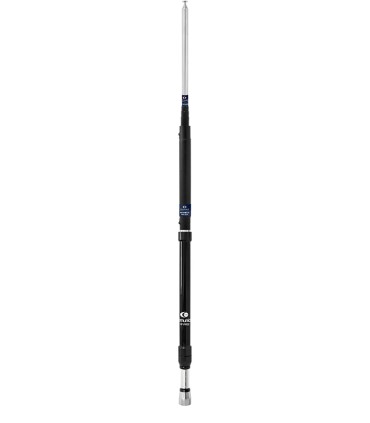

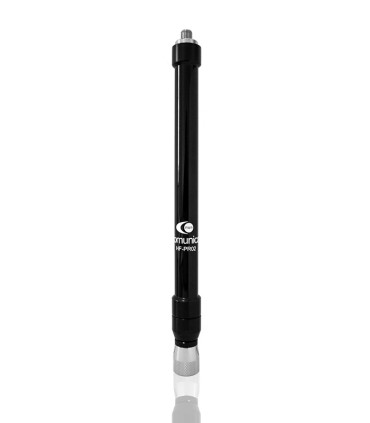

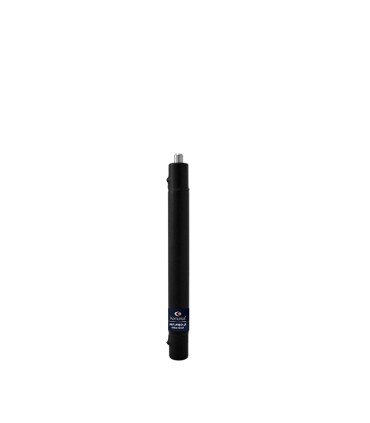

Komunica Telescopic & Portable Multi-Band antenna: 3.5MHz (by coil included) + 7/30MHz + 40MHz + 50MHz + 70MHz + VHF
Innovative Komunica® HF-PRO-2-PLUS-T portable Wide Spectrum antenna:
3.5MHz (by included coil) + 7 / 30MHz + 40MHz + 50MHz + 70MHz + VHF
Maximum robustness, super-light and ultra-compact size:

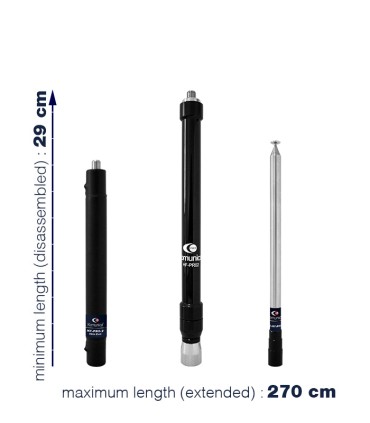

Mesurement: 29cm disassembled and 270cm maximum extension.
Ideal QRP, SOTA, etc. by telescopic tripod, magnetic base reinforced, etc
AVAILABLE EXCLUSIVELY THROUGH OUR EUROPEAN DEALERS
Add to compare0
Add to wishlist
Frequency range: 3.5(coil) /7~30 + 40MHz + 50 MHz + 70MHz + 145 MHz ((VHF)
-
Max. Power Rating: 130W (SSB)
-
Impedance: 50 Ω
-
Antenna Length: 29cm (disassembled) / 262.5cm -270.5cm
11.42 inches / 103.35 - 106.50 inches
-
Weight: 425g
-
Connector: PL-259
-
Antenna type: Loaded ¼ wave vertical (HF band)
¼ wave (50MHz) and 5/8 λ wave (145 MHz VHF)
-
Antenna parts: Adjustable coil for 7 for 7~30 MHz,
add-in coil for 3.5 / 4.00 MHz (80m) band.
stainless steel 11 sections telescopic rod:
- Length collapsed: 24cm / 9.45inch
- Length extended: 218cm / 85.83inch
-
Coil form composition: Fibre Reinforced Polymer (FRP)
The use an antenna coupler and counterpoise is recommended to obtain the best performance, although it is not essential.
Strong enough for 100 watt rigs but small and light enough to work with portable QRP rigs as well - especially with our companion TRIPOD-KIT -
Komunica Suggested Accessories:
- TRIPOD-KIT: Telescopic Tripod
-TRIPLE-MAG: Reinforced Magnetic base, etc.
ATTENTION:
Please reject any copy of the antenna HF-PRO-2-PLUS-T version that does not bear Komunica ® Brand.
COPIES DETECTED IN THE MARKET THAT DO NOT CORRESPOND WITH THE FEATURES, NEITHER PERFORMANCE OF THIS MODEL.
EAN:8435757702723
