Omnidirectional antenna 2-3-4-5G & 6GHz, LoRa / LoRaWAN

Omnidirectional antenna 2-3-4-5G & 6GHz, LoRa / LoRaWAN

BAN-480

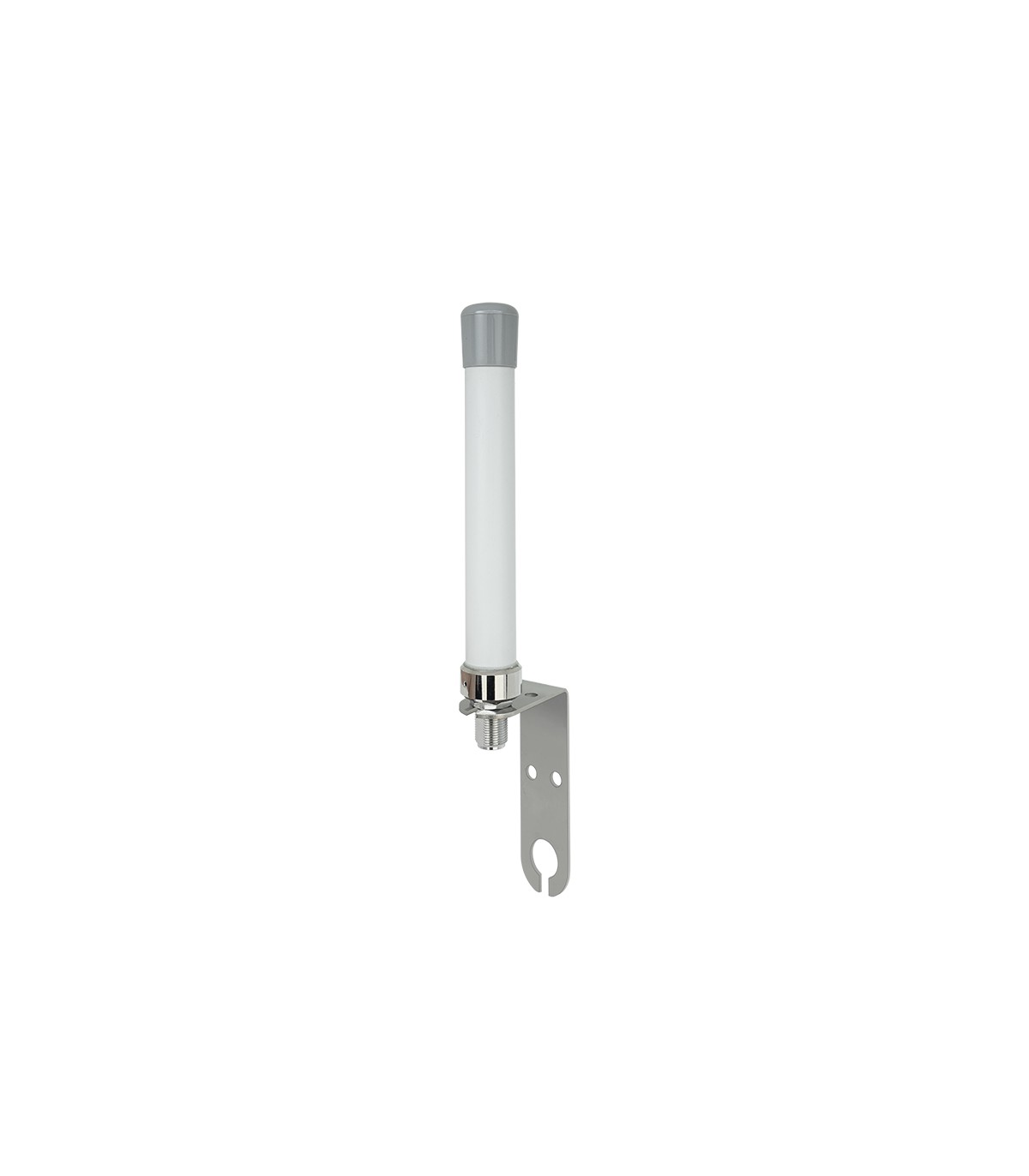

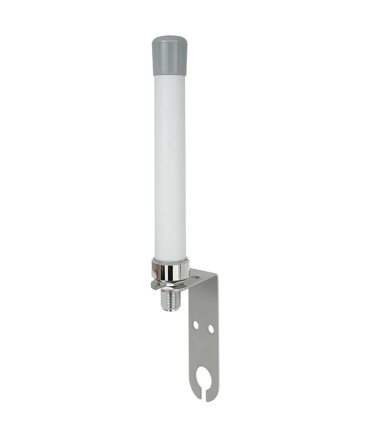

Omnidirectional antenna 2-3-4-5G & 6GHz, LoRa / LoRaWAN

Komunica LOOP Dual Band Antenna VHF/UHF compact size, horizontal polarization

Omnidirectional antenna of reduced measures and maximum coverage. Great for Bands 2G-3-4 LTE 5G – 6 GHz

Ideal for LoRa / LoRaWAN

Technical Data:

Antenna type: omnidirectional. For long range communications

Impedance: 50 Ω

Frequency range: 690 ÷ 960 MHz / 1700 ÷ 2700 MHz / 2.7-6 GHz

Gain:

0,69-0,96 GHz 2,5 dBi

1,7-2,7 GHz 4 dBi

2.7-6 GHz 4,5 dBi

Swr 1 to 3 typical

Max. Power: 50W

Cable: at request

Connector: N female

Specifications

Material: Fiberglass

Colour: White

Height: 173 mm

Diameter: 25 mm

Temperature: -35°C to 100°C
