Magnetic base super-grip
PL-259 connector
MLA-145

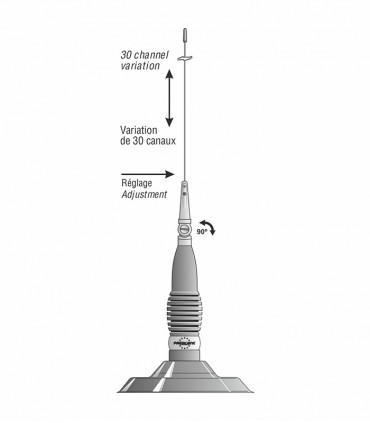

President Cb mobile antenna 5/8 lambda, 500W (PEP) + Magnet Base PL
Specifications
| Antenna type | : | 5/8 wave |
| Impedance | : | 50 Ohms |
| Frequency | : | 26-28 MHz |
| Polarization | : | Vertical |
| S.W.R. value | : | 1,1/1 adjustable |
| Gain | : | + 6 dBi |
| Maximum power | : | 500 Watt P.E.P |
| Band width / Number of channels | : | 1400 kHz (140 cx) |
| Weight | : | 1,100 kg |
| Length | : | 1580 mm |
| Base type | : | Magnetic |
| Reclining | : | |
| Dismantled magnetic base | : | |
| Whip | : | AC4 Stainless steel |
