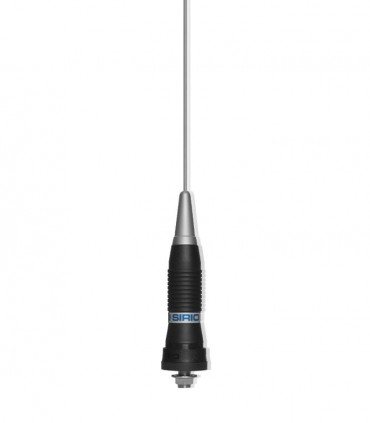

SIRIO, mobile CB antenna 5/8 lambda with 600W (PEP). Version with base type N-PL and cable

AS-145-N

SIRIO, mobile CB antenna 5/8 lambda with 600W (PEP). Version with base type N-PL and cable

SIRIO, Radiant Mobile CB Antenna type 5/8 with spring and PL male.

Maximum Power 300 W - AM-FM / 900W SSB CHARACTERISTICS:

Radiant mobile antenna CB & 10 m

Classic PL

Up to 110 CH without retouching setting

Up to 900W SSB Maximum

DC shorted coil

Total length: 1.42 m

Factory Code: P / N 22018005.05

Electrical Data:

Type: Charging coil on spring base.

Frequency range: 27… 28.5 MHz (Adjustable)

Polarization: Vertical

Impedance 50 Ohm

Bandwidth @ SWR = <2: = 1340 KHz

SWR @: <1.4

Maximum continuous AM / FM Power: 300 W

Maximum intermittent power (SSB) 900 W

Mechanical Data:

Conical rod in stainless steel 17/7 PH

Chromed brass components

Compatible magnetic bases: BM-1-PL, BK-1500, BK-1700 by Komunica

Versions with base and 4m cable.

BK-1800 - Magnetic base Komunica, 17.5 cm diameter, 5m cable and PL-259 connector.

Magnetic base super-grip PL-259 connector

MLA-145 - President Cb mobile antenna 5/8 lambda, 500W (PEP) + Magnet Base PL

Magnetic series

Magnetic base Komunica with triple magnet. Super-robust version and maximum grip. Connector type SO-239 + 5 m RG-58

TRIPLE-MAG - Magnetic base Komunica with triple magnet. Super-robust version and maximum grip. Connector type SO-239 + 5 m RG-58

TRIPLE-MAG- Komunica reinforced magnet base Maximum grip Diameter: 3pcs x 9cm Connector: SO-239 Cable RG-58 (5mts)

16 other products in the same category:

MS-85 - President, antenna 1/2 wave 85cm threaded base

1/2 wave & 250 Watt P.E.P

ML-145-PL - SIRIO, Radiant Mobile CB Antenna type 5/8 with spring and PL male.

Just the antenna, without base or cable. Range from 27 to 28.5 MHz.

PRESIDENT Varilla antena para nuevas series Volvo

VIRGINIA NEW - PRESIDENT CB mobile antenna with magnetic (AMMI496)

SIRIO CB Mobile Antenna, TURBO 2000, 5/8, lenght 1450mm 200W

TURBO-2000 - SIRIO CB Mobile Antenna, TURBO 2000, 5/8, lenght 1450mm 200W

Turbo 2000 antenna standard format SIRIO-TURBO. Blue Line series. 90º articulated base with exclusive quick locking system. High performance. Length +/- 1.45 m. It is supplied complete. Includes CCTurbo-RG58 4m cable and Turbo Base. Conical rod in stainless steel.

President, HF & CB band antenna with frequency range 1-30MHz

COLORADO-800-WB - President, HF & CB band antenna with frequency range 1-30MHz

5/8 wave& 140 Watt P.E.P

MS-145-CN - President Cb mobile antenna 5/8 lambda, 600W (PEP) + ( BASE LS-04 )

Frequency: 26-28 MHz Installation Version

TURBO-5000PL - SIRIO Antenna CB, 5/8, 1965mm PL

SIRIO CB Antenna, 5/8 with adapter coil for PL bases.

TURBO-1000 - SIRIO TURBO-1000 ANTENNA MOVIL CB 5/8 1130mm 200W-60

Mobile band antenna (27 Mhz) with ball joint, 17/7 PH stainless steel conical rod, includes Turbo base and 4 meters of RG-58 cable.

MARYLAND - PRESIDENT

CB mobile antenna for installation. Includes cable. 100% Stainless Steel.

OMEGA-27 - SIRIO Mobile antenna CB 27 MHz

SIRIO OMEGA-27 Mobile Antenna

AS-145-PL - SIRIO, mobile CB antenna 5/8 lambda with 150W. Version with base type PL

Up to 900W SSB Maximum

SIRIO Mobile CB Antenna, TURBO-3000, 7/8, length 1690mm 200W, with Cable

TURBO-3000 - SIRIO Mobile CB Antenna, TURBO-3000, 7/8, length 1690mm 200W, with Cable

Mobile CB & 10m Antenna, Turbo Blue Line Series. Complete set includes specific turbo base (articulated) and cable. Compatible with all types of mounts except magnetic bases.
