Magnetic base super-grip
PL-259 connector
ML-145-N

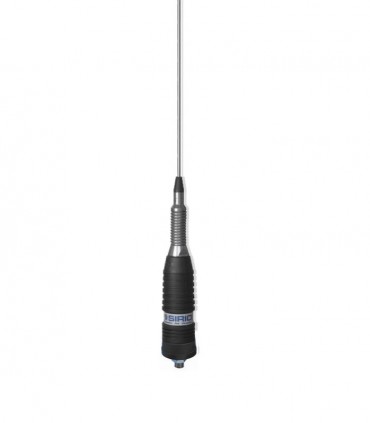

SIRIO, mobile CB antenna 5/8 lambda with spring and maxim power 150W. Version with base type N-PL and cable
CHARACTERISTICS:
Radiant mobile antenna CB & 10 m
Classic PL
Up to 110 CH without retouching setting
Up to 900W SSB Maximum
DC shorted coil
Total length: 1.42 m
Factory Code: P/N: 2201805.23
Electrical Data:
Type: Charging coil on spring base.
Frequency range: 27… 28.5 MHz (Adjustable)
Polarization: Vertical
Impedance 50 Ohm
Bandwidth @ SWR = <2: = 1340 KHz
SWR @: <1.2
Maximum continuous AM / FM Power: 300 W
Maximum intermittent power (SSB) 900 W
Mechanical Data:
Conical rod in stainless steel 17/7 PH
Chromed brass components
Compatible magnetic bases: BM-1-PL, BK-1500, BK-1800 by Komunica
Versions with base and 4m cable.
Related Products
Máximum grip and and robustness
Diameter: 15cm
Cable: 5m (RG-58)
BM-1-PL - Komunica professional base reinforced Maximum grip12cm diameterSO-239 connectorRG-58 cable (5mts)
