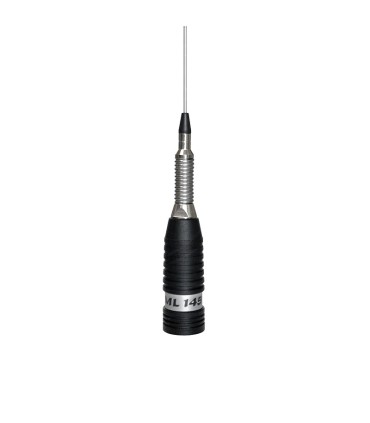

SIRIO, Radiant Mobile CB Antenna type 5/8 with spring and PL male.

ML-145-PL

SIRIO, Radiant Mobile CB Antenna type 5/8 with spring and PL male.

SIRIO, mobile CB antenna 5/8 lambda with 600W (PEP). Version with base type N-PL and cable

Just the antenna, without base or cable. Range from 27 to 28.5 MHz.

Material

Impedance		50 Ω
Type		CB Mobile Radiant with spring
Radiation		Omnidirectional
Polarization		Vertical
Radiation Angle H Plane		360º
Earth Plane		The vehicle
Channels		120 CH
Bandwidth A		1340KHz @ SWR = 2
Frequency Range A		27...28.5 MHz Adjustable
Compatible Systems		CB 27MHz
SWR @ Res. Freq.		<= 1.4 SWR
Applicable Power To		300W AM-FM / 900W SSB
DC Protection		Shorted to Ground
Connector A		PL Male
Colour		Black
Materials		Copper, Brass, 17/7 PH Stainless Steel, Nylon
Compatible Base Type		SO-239 (PL Female)
Location/Installation		Magnetic Base / N-PL Base / NE-PL Base
Dimensions		1.40 m

ML-145-N - SIRIO, mobile CB antenna 5/8 lambda with spring and maxim power 150W. Version with base type N-PL and cable

Maximum Power 300 W - AM-FM / 900W SSB

AS-145-N - SIRIO, mobile CB antenna 5/8 lambda with 600W (PEP). Version with base type N-PL and cable

MLA-145 - President Cb mobile antenna 5/8 lambda, 500W (PEP) + Magnet Base PL

Magnetic series

MS-145-CN - President Cb mobile antenna 5/8 lambda, 600W (PEP) + ( BASE LS-04 )

Frequency: 26-28 MHz Installation Version
