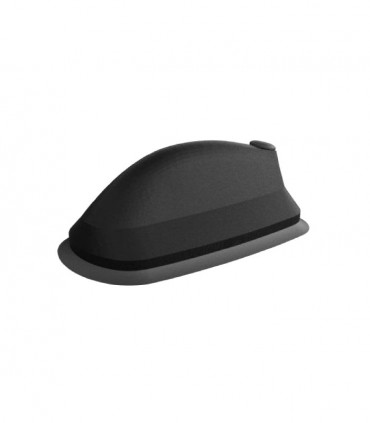

MIMO Antenna, 2xLTE / 2xWLAN / GPS-GNSS-GALILEO

Specifications

• Base Material: Aluminum alloy EN AW-6082

• Radome: PA6 Black with 30% fiberglass

• Dimensions: L: 140 · W: 62 · H: 52 mm

• Color: Black

• Temperature: -40ºC / +80ºC

• Weight: 330 gr +/- 10 gr

• Square: 15x15

• Round: Ø19

Technical Data 2xLTE

• Frequency Range:

  • AMPS/GSM 850: 824-894 MHz

  • GSM 900: 880-960 MHz

  • GSM 1800: 1710-1800 MHz

  • GSM 1900: 1850-1990 MHz

  • UMTS: 1920-2170 MHz

  • LTE 700: 698-793 MHz

  • LTE 2700: 2500-2690 MHz

• Impedance: 50 Ω

• Polarization: Vertical

• Emission: Omnidirectional

• Gain:

  • 2 dBi - 890 MHz

  • 5 dBi - 1710 MHz

  • 5 dBi - 2690 MHz

• Cable Length: RG316 5m

• Connector: Fakra m."D"

Technical Data 2xWLAN

• Frequency Range:

  • 2400-2485 MHz

  • 5250-5850 MHz

• Impedance: 50 Ω

• Polarization: Vertical

• Emission: Omnidirectional

• Gain:

  • 4 dBi - 2400 MHz

  • 6 dBi - 5800 MHz

• Cable Length: RG316 5m

• Connector: Fakra m."Z"

Technical Data GPS/GNSS/GALILEO

• Antenna Type: Active Planar Patch Antenna

• Impedance: 50 Ω

• Center Frequency: 1580 MHz

• Bandwidth: ± 28 MHz

• V.S.W.R: Less than 2.0

• Polarization: RHCP

• Supply Voltage: 2.7 ÷ 5.1 V

• Current Absorption:

  • 10 ± 1 mA at 2.7 V.

  • 16 ± 1 mA at 5.0 V.

• Gain Amplifier:

  • 18 ± 1 dB at 2.7 V.

  • 22 ± 1 dB at 5.0 V.

• Gain Patch Antenna: 2 dB

• Noise Figure: 1.7 ÷ 2.1 dB

• Temperature: -30ºC / +80ºC

• Cable Length: RG174 5m

• Connector: Fakra m."C"

EAN:8435757704017
